Tramex Remote Environmental Monitoring System Accessory Pack - AP-TREMS-10

https://cotecno.opendrive.cl/web/image/product.template/594355/image_1920?unique=fca230e

Requiere cotización

Esta combinación no existe.

Contáctanos
SKU: AP-TREMS-10



Compartir

* CURRENTLY OUT OF STOCK

The Tramex Remote Environmental Monitoring System Accessory Pack adds more Cloud Sensors to your TREMS project.

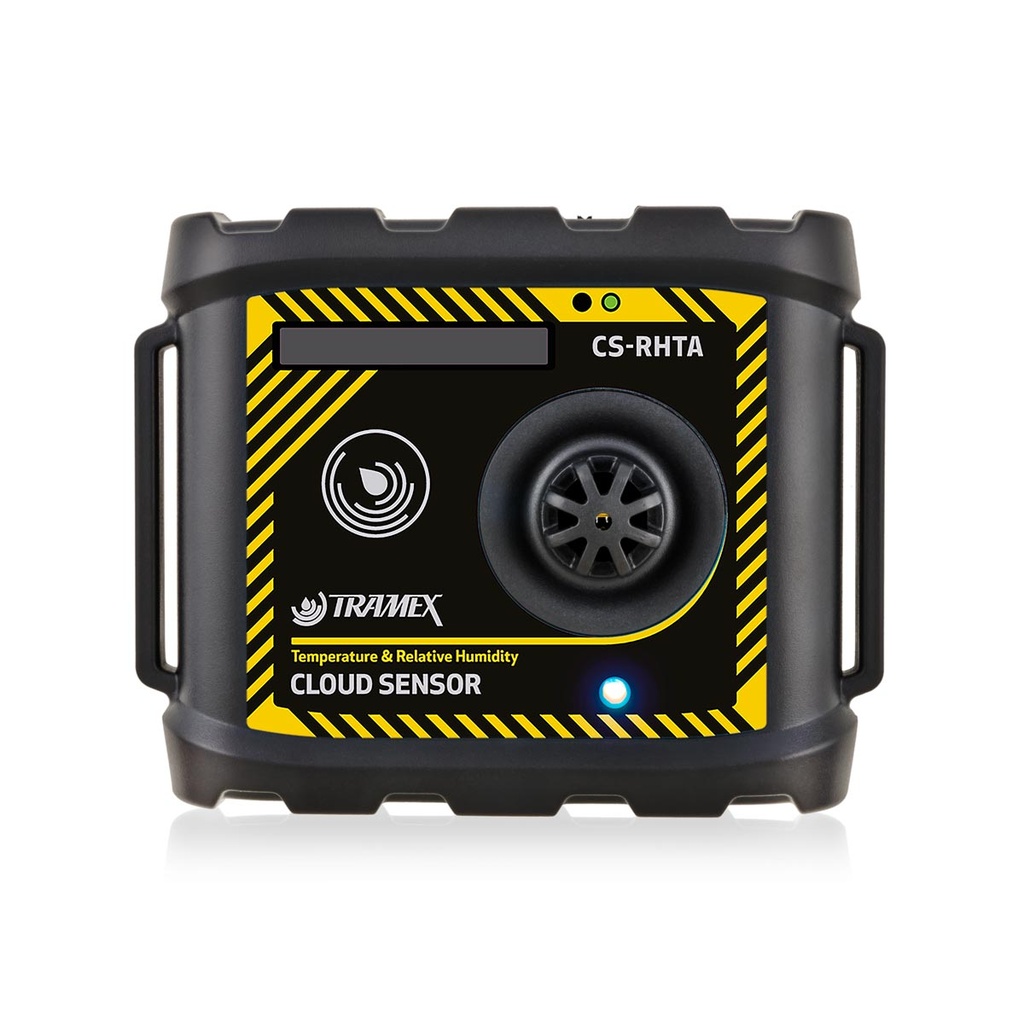

The AP-TREMS-10 comprises 10 CS-RHTA Tramex Cloud Sensors. Multiple Sensors can be used with one Tramex Cloud Station. Registration and on-site set-up is simple using a QR code check-in procedure.

The on-site Sensors, with long-life batteries, transmit relative humidity, temperature (ºC and ºF), dew point and grains per pound / grams per kilo readings wirelessly via the Tramex Cloud Station enabling remote monitoring of up to 200 on-site Sensors on the Tramex Cloud platform. Tramex Cloud is a secure platform to store and report your moisture, temperature and relative humidity measurements, get notified of adverse conditions and quickly monitor status from any browser.

There are no subscription fees and there is free data with the Tramex Remote Environmental Monitoring System.

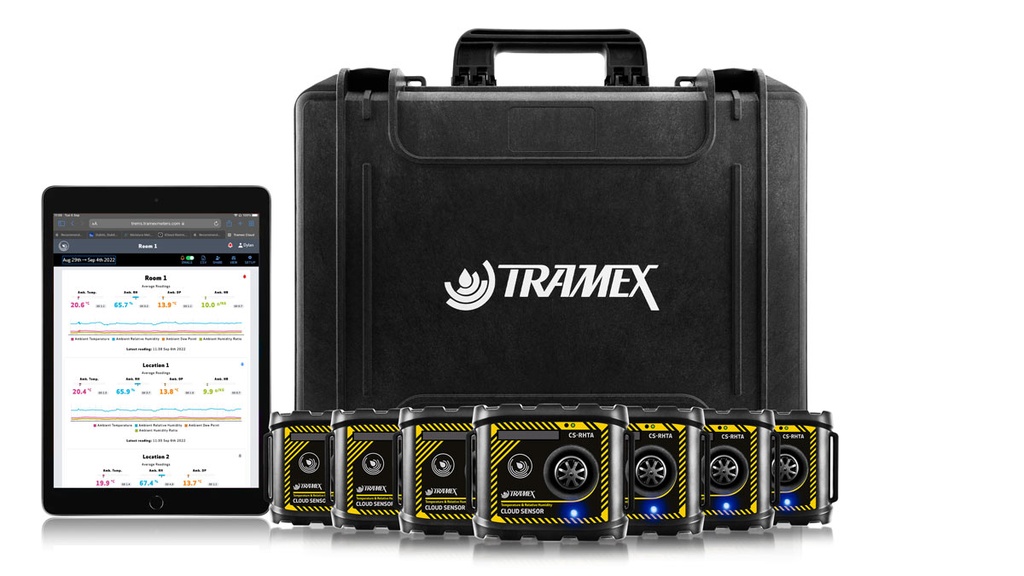

Contenido del kit

  1. 10 x CS-RHTA Tramex Cloud Sensors
  2. 1 x Heavy Duty Protective Carry Case
  3. Tramex Cloud Software Monitoring platform (Tablet not included)

Especificaciones

Temperature Sensor Specifications:

Exceptional Accuracy: ±0.1ºF Range -4ºF to 158ºF(±0.1 °C Range -20°C to 70°C)
Range: -4ºF to 158ºF( -20°C to 70°C
Sensor Protection: PTFE Film protects sensor opening from water & dust
Drift: <0.04ºF (0.03ºC) per year



Relative Humidity Sensor Specifications:

Exceptional Accuracy: ±1.5%RH Range 0% to 80%RH, ±2.0%RH Range 80% to 99%RH (@ 77ºF (25ºC))
Range: 0 to 100%RH
Resolution 0.1% over the complete range
Drift <0.25%RH per year



Sensor Specifications:

Transmission Range: Up to 2 miles line-of-sight
Communication Frequency: Multiple readings per hour.
Identification: Items individually coded for ease of install and logging identification.
Size: 3.94” x 3.54” x 1.38” (100mm x 90mm x35mm)
Weight: 3.53oz (100g)
Construction: ABS enclosure
Power: Built in long-life CR123A battery
Included: Wall Mounting



Tramex Cloud Specifications

Frequency: Region Specific frequency available
Security: WPA2-PSK encryption, no unwarranted telemetry/tracking.
Size: 5.12” x 4.53” x 1.19” (130mm x 115mm x 30mm)
Weight: 9.5oz (270g)
Power: Universal AC Power Adapter
Construction: Wall-mountable Industrial Aluminium



Data is stored free of charge for a period of 2 years, after which, following our data retention policy, you will need to download it.



Kit Specifications

Size: 21.1” x 16.1” x 6.3” (510mm x 410mm x 160mm)
Weight: 9.9lbs (4.5kg)
Power: 10 x CR123A 3-volt batteries (included)
