Cabina de bioseguridad Clase II A2 certificada NSF — 700*650*1920mm

B-01-010163-GL

External Size(W*D*H)

700*650*1920mm

Internal Size(W*D*H)

600*500*540mm

Work Surface Hight

750mm

Max Opening

370mm

Tested Opening

Safety height 254mm(10")

Inflow

290m³/h(170cfm)

Downflow

55%: 360m³/h(211cfm)

Exhausl

45%: 290m³/h(170cfm)

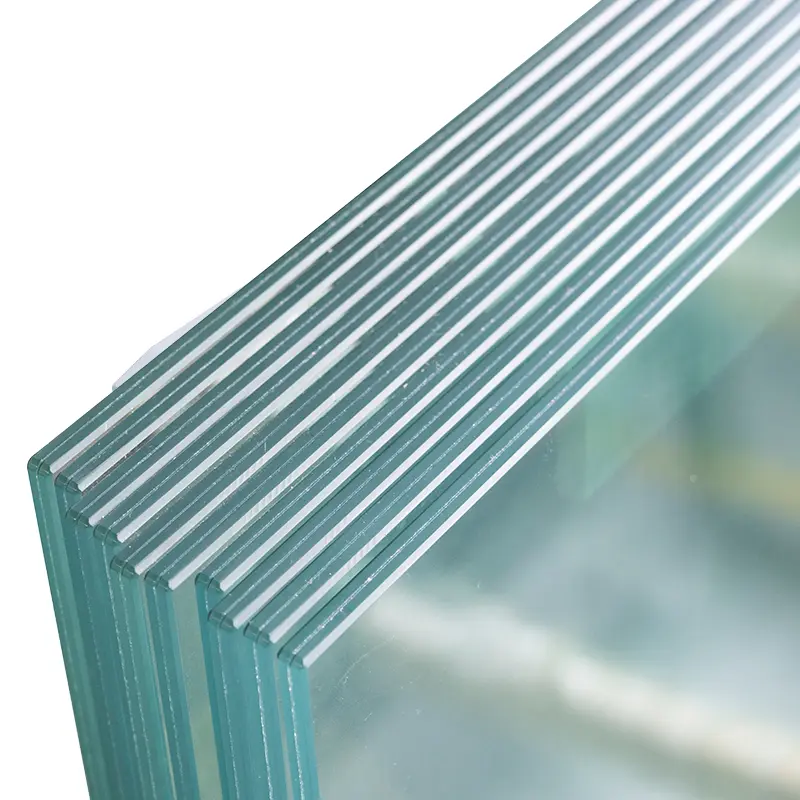

Front Window

Two-layer laminated toughened glass>6mm, Anti UV

U PA Filter

≥99.9995% efficiency at 0.12μm

Filter Guard Type

Aluminum alloy frame

Noise

NSF 49≤67dB

Ilumination

≥1000Lux

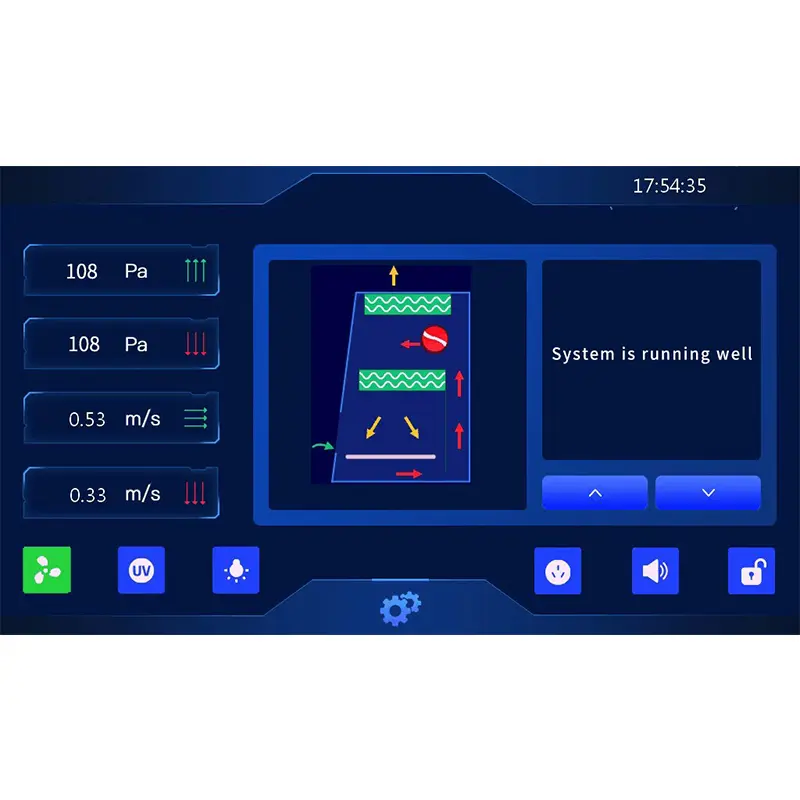

Display

Capacitive touch screen

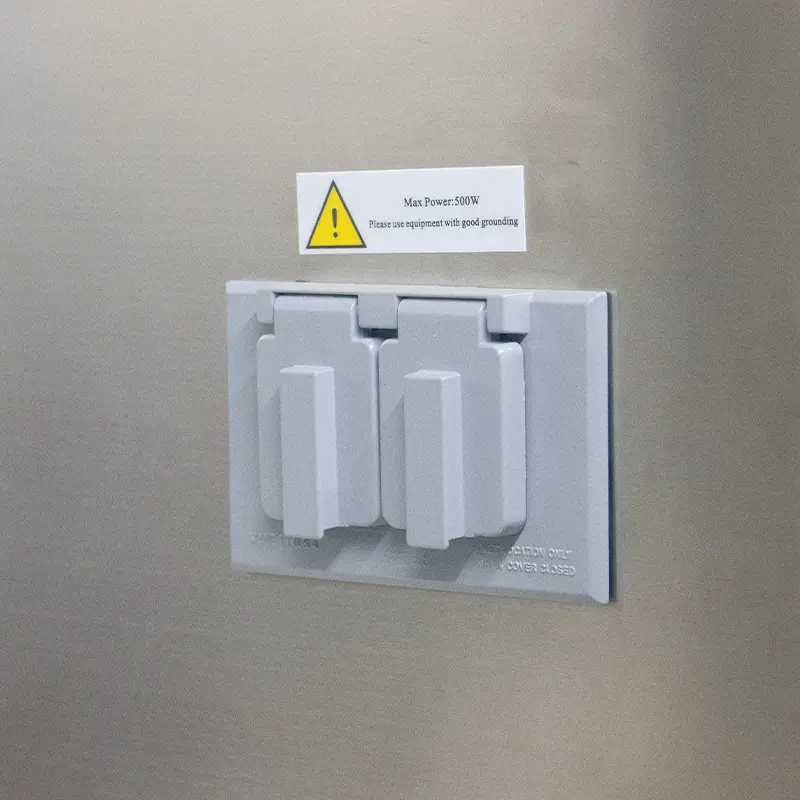

Waterproof Socket

Two, total consumption≤500W

Ground Resistance

≤0.1Ω

Power Supply

AC230V, 50/60Hz; AC115V, 60Hz, Full load Amps: 9A, BTU/Hr: 1689

Consumption

≤500W

Alarn

Abnormal airlow velocity; Filter replacement; Front window at unsafe height

Motor

EC motor, 115V&230V acceptable, speed adjustable, high efficiency and low power consumption

Material

Working area: 304 stainless steel

Frame and decoratve plate: cold-rolled steel with anti-bacteria power coating

UV Lamp

15W

LED Lamp

10W*2

Standard Accessory

LED Lamp*2, UV lamp*2, Base stand, Drain valve, Waterproof sockets, Remote control

Optional Accessory

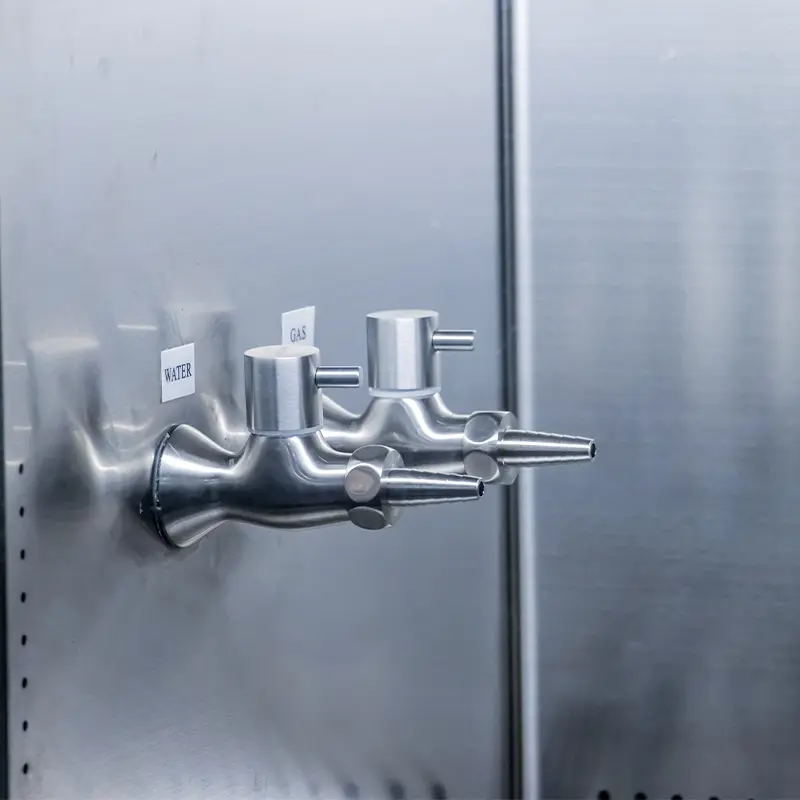

Armrest, Airlow tester, Formalin fumigation sterlizer, Infrared sterlizer, Remote control, SS water tap*1&gas tap*1

Net Weight

150kg

Package Size(W*D*H)

Carton: 820*880*1470mm

Gross Weight

152kg
