Sensor de Dirección del Viento / Sensor de Veleta
Descripción e commerce

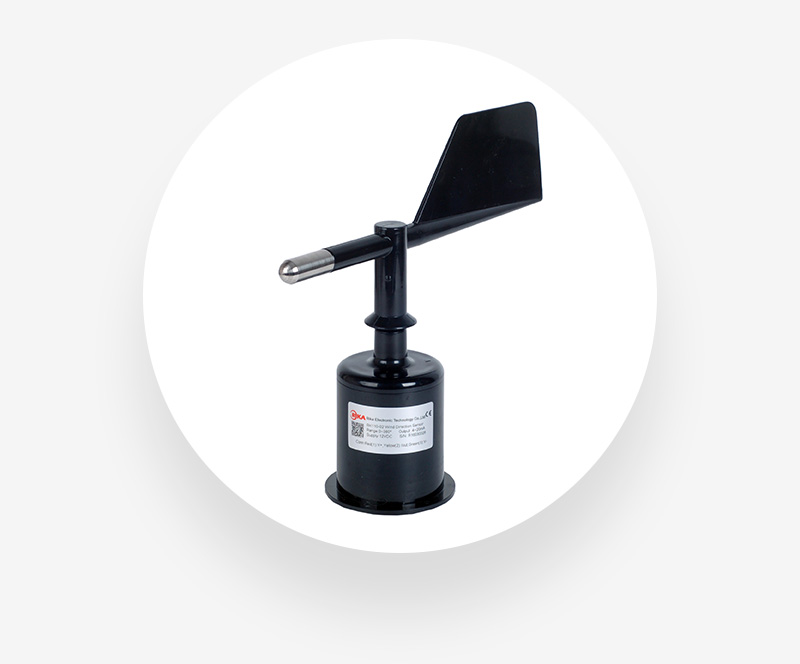

Sensor de Dirección del Viento / Sensor de Veleta. Detalle del Producto Descripción Detallada The B-01-05-0104 wind direction sensor is a sensitive wind direction indicator that gives a visual indication of wind direction. High precision magnetic sensitive chips are built in the housing shell. The wind vane is constructed on low inertia light metal to show wind directions. Codigo interno C-002213.
- Detalle del Producto Descripción Detallada The B
- 0104 wind direction sensor is a sensitive wind direction indicator that gives a visual indication of wind direction
- The product is wide range, good linearity, strong anti- lightning strike, good performance
| Tipo de Equipo: Detector de Fugas de Caldera |
Descripción Detallada
The B-01-05-0104 wind direction sensor is a sensitive wind direction indicator that gives a visual indication of wind direction. High precision magnetic sensitive chips are built in the housing shell. The wind vane is constructed on low inertia light metal to show wind directions. The product is wide range, good linearity, strong anti- lightning strike, good performance.
Beneficios Clave
Bajo umbral de inicio para mediciones.
Construcción principal en fibra de carbono.
Fuerte capacidad de resistencia a la corrosión.
Aplicaciones Principales
- Meteorología general
- Monitoreo ambiental
- Estaciones meteorológicas
Galería de Imágenes
Especificaciones Técnicas
| Output 4-20mA | 4-20mA |
|---|---|
| Output 0-5V | 0-5V |
| Output RS485 | RS485 |
| Supply Voltage 4-20mA | 5V,12V-24V |
| Supply Voltage 0-5V | 5V,12V,24V |
| Supply Voltage RS485 | 5V,12V-24V |
| Load Capacity 4-20mA | <500Ω(typ 250Ω) |
| Load Capacity 0-5V | >1kΩ |
| Load Capacity RS485 | |
| Range | 0~360° |
| Accuracy | ±3° |
| Resolution | 1° |
| Starting Threshold | <0.5m/s |
| Limit wind speed | 50m/s |
| Ingress Protection | IP65 |
| Operating Temperature | -40℃~+50℃ |
| Cable Grade | Nominal voltage: 300V, Temperature grade: 80℃ |
| Weight(unpacked) | 195g |
| Dimension | Turning Radius:147mm,Height:199mm |
| Main material | Carbon fiber |
| Storage Condition | 10℃-50℃@20%-90%RH |
