Sensor e Indicador de Velocidad del Viento (Para Grúa)
Descripción e commerce
Sensor e Indicador de Velocidad del Viento (Para Grúa). Detalle del Producto Descripción Detallada The B-01-05-0107 wind speed display controller gives a visual indication of real-time wind speed , with a LED digital display. In its housing shell, build in a microprocessor with the function of high performance, low power consumption. The wind speed early warn value and alarm value can be set by buttons on the panel. Codigo interno C-002226.
- Detalle del Producto Descripción Detallada The B
- 0107 wind speed display controller gives a visual indication of real
- time wind speed , with a LED digital display
| Tipo de Equipo: Detector de Fugas de Caldera |
Descripción Detallada

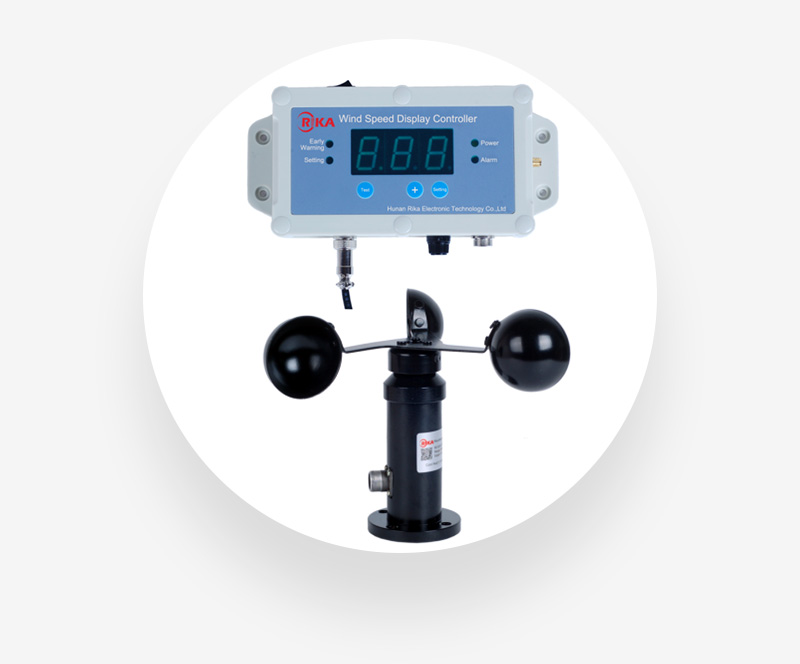

The B-01-05-0107 wind speed display controller gives a visual indication of real-time wind speed , with a LED digital display. In its housing shell, build in a microprocessor with the function of high performance, low power consumption. The wind speed early warn value and alarm value can be set by buttons on the panel. When alarming, the signal output can be controlled by relay. B-01-05-0107 is the companion to our B-01-05-0101 wind speed sensor.
Beneficios Clave
Amplio rango de medición (0-60m/s) y alta precisión (±1m/s).
Alarma sonora y visual configurable.
Opciones de conexión cableada o inalámbrica.
Aplicaciones Principales
- Monitoreo de velocidad del viento en grúas
- Control de seguridad en operaciones con viento
- Sistemas de alarma por viento
Galería de Imágenes
Especificaciones Técnicas
| Range m/s | 0-60m/s |
|---|---|
| Range km/h | 0-216km/h |
| Resolution(display) m/s | 0.1m/s |
| Resolution(display) km/h | 0.1km/h(<100km/h)1km/h(≥100km/h) |
| Accuracy(sensor) | ±1m/s |
| Alarm response time | <100mS |
| Type of alarm | Sound and light alarm |
| Contact capacity | 5A@30VDC |
| Early warning m/s | Any value within 1 m/s ~40 m/s, the early warning value must be lower than the alarm value |
| Early warning km/h | Any value within 1km/h ~99km/h, the early warning value must be lower than the alarm value |
| Alarm m/s | Any value within 1 m/s~40 m/s |
| Alarm km/h | Any value within 1km/h ~144km/h |
| Operating Temperature | -30℃-+70℃ |
| Power supply | AC100-240V/DC12V/DC24V |
| Power consumption Wire | <3W(sensor & controller) |
| Power consumption Wireless | sensor: 0.25W,controller: 2.5W |
| Ingress Protection | Controller:IP54,wind speed sensor:IP65 |
| Weight(unpacked) | Controller:315g,wind speed sensor:240g |
| Main material | Controller:ABS,wind speed sensor:Aluminum alloy & 304SS |
| Storage Condition | 10℃-50℃@20%-90%RH |
