Sensor de Radiación Solar / Sensor de Irradiancia Solar
Descripción e commerce

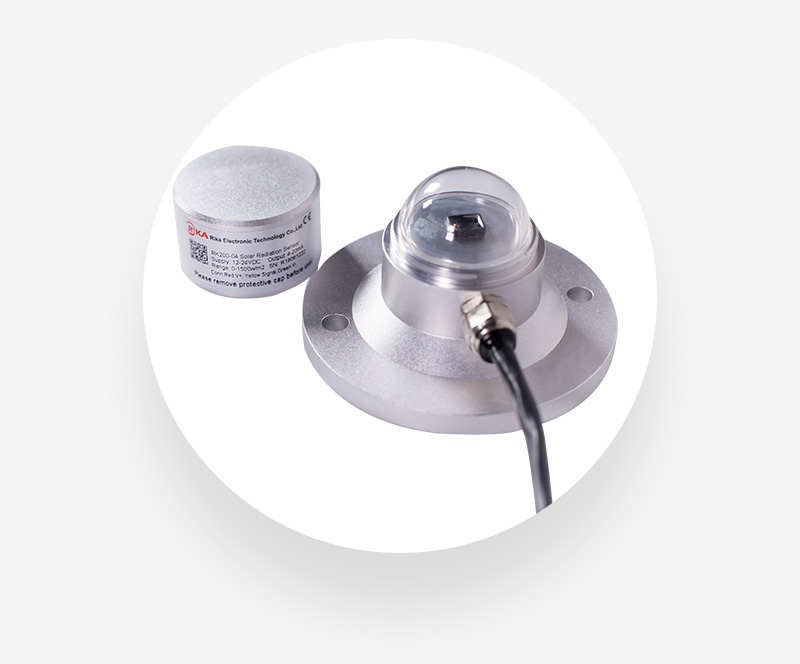

Sensor de Radiación Solar / Sensor de Irradiancia Solar. Detalle del Producto Descripción Detallada B-01-05-0203 Solar Radiation Sensor is designed on basis of silicon-cell principle. It is mainly used for measuring solar radiation within 300-1100nm wavelength. If the sensing face is downwards, it can test the reflected radiation and solar radiation on the incident to the inclined plane. If shad is added, it can test the scattered radiation. Codigo interno C-002236.
- Detalle del Producto Descripción Detallada B
- 0203 Solar Radiation Sensor is designed on basis of silicon
- It is mainly used for measuring solar radiation within 300
| Tipo de Equipo: Detector de Fugas de Caldera |
Descripción Detallada
B-01-05-0203 Solar Radiation Sensor is designed on basis of silicon-cell principle. It is mainly used for measuring solar radiation within 300-1100nm wavelength. If the sensing face is downwards, it can test the reflected radiation and solar radiation on the incident to the inclined plane. If shad is added, it can test the scattered radiation. Solar radiation sensor is widely used to monitor the solar radiation in meteorology, solar energy, agriculture, construction materials aging and atmospheric pollution and etc.
Beneficios Clave
Conforme a los estándares de la OMM.
Adecuado para entornos hostiles.
Instalación sencilla.
Aplicaciones Principales
- Meteorología
- Energía solar
- Agricultura
- Envejecimiento de materiales de construcción
Galería de Imágenes
Especificaciones Técnicas
| Spectral range | 300～1100nm |
|---|---|
| Supply | 5V,12-24VDC |
| Range | 0-1500W/m2 |
| Resolution | 1W/m2 |
| Output | 0-5V,4-20mA,RS485 |
| Response time | ≤5s |
| Cosine correction | ≤±10%(Solar elevation angle=10°) |
| Non-linear | ≤±3% |
| Temperature effect | ±0.08%/℃ |
| Stability | ≤±2%/year |
| Operating Temperature | -40℃-+80℃ |
| Ingress Protection | IP65 |
| Weight(unpacked) | 420g |
| Shell material | Aluminum alloy |
| Storage Condition | 10℃-60℃@20%-90%RH |
