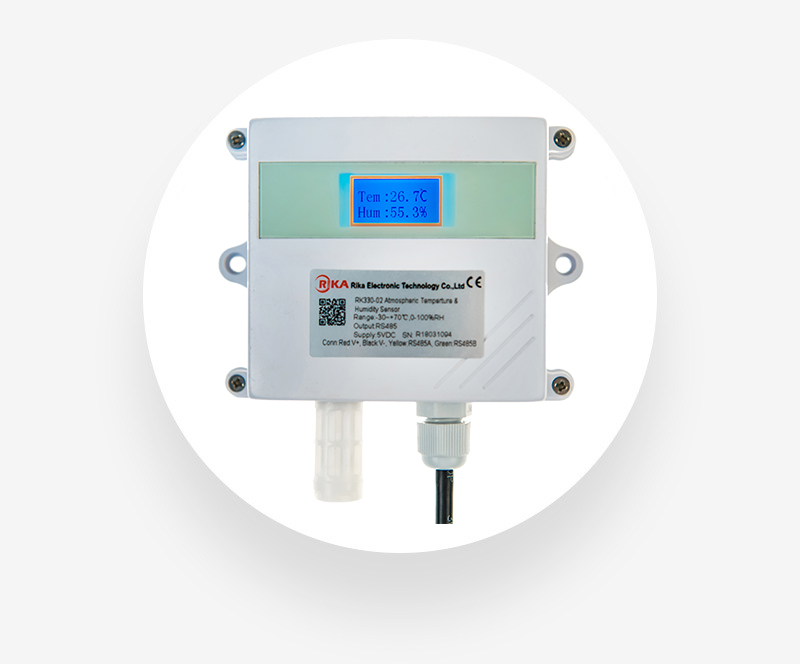

Sensor de Temperatura y Humedad Ambiental (De Pared)
Descripción e commerce
Sensor de Temperatura y Humedad Ambiental (De Pared). Detalle del Producto Descripción Detallada B-01-05-0308 Atmospheric Temperature & Humidity Sensor is a professional measurement of air temperature and relative humidity . Sensor element is digital temperature and humidity IC.Sensors are built-in the water-proof and anti-UV shelter. It is widely used in agriculture, forestry, meteorology as well as a climate chamber, warehousing and other places. Codigo interno C-002177.
- Detalle del Producto Descripción Detallada B
- 0308 Atmospheric Temperature & Humidity Sensor is a professional measurement of air temperature and relative humidity
- Sensor element is digital temperature and humidity IC.Sensors are built
| Tipo de Equipo: Detector de Fugas de Caldera |
Descripción Detallada
B-01-05-0308 Atmospheric Temperature & Humidity Sensor is a professional measurement of air temperature and relative humidity . Sensor element is digital temperature and humidity IC.Sensors are built-in the water-proof and anti-UV shelter. It is widely used in agriculture, forestry, meteorology as well as a climate chamber, warehousing and other places.
Beneficios Clave
Display LCD opcional para visualización directa.
Múltiples opciones de señal de salida.
Alta precisión (±0.3℃, ±3%RH).
Aplicaciones Principales
- Agricultura y silvicultura
- Meteorología
- Cámaras climáticas y almacenamiento
Galería de Imágenes
Especificaciones Técnicas
| Range Temperature | -30-+70℃,0-50℃ |
|---|---|
| Range Humidity | 0-100%RH |
| Accuracy Temperature | ±0.3℃@25℃ |
| Accuracy Humidity | ±3%RH(10%-90%) |
| Repeatability Temperature | ±0.1℃ |
| Repeatability Humidity | ±0.1%RH |
| Long-term Stability Temperature | <0.04℃/year |
| Long-term Stability Humidity | <0.5%RH/year |
| Response Time | <1s |
| Supply | 5VDC, 12-24VDC |
| Output Signal | 4-20mA,0-5V,RS485 MODBUS(RTU) |
| Display(universal) | LCD is optional |
| Current Consumption | <20mA |
| Operating Temperature | -40℃-+70℃ |
| Ingress Protection | IP65 |
| Storage | 10-60℃@20%-90%RH |
| Weight(unpacked) | 170g |
| Dimension | 117*86*41mm |
| Shelter material | ABS |
