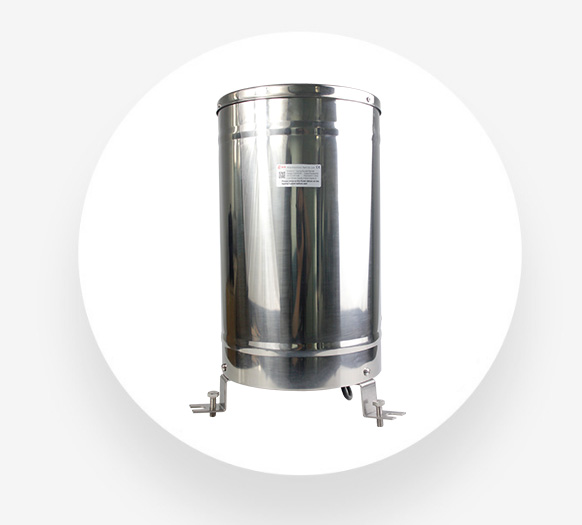

Sensor de Lluvia de Balancín / Pluviómetro (Metálico)
Descripción e commerce
Sensor de Lluvia de Balancín / Pluviómetro (Metálico). Detalle del Producto Descripción Detallada The B-01-05-0401 Tipping Bucket Rainfall Sensor is an instrument for testing rainfall in the nature. In order to meet the requirement of information transmission, processing, recording and display, the amount of rainfall is converted to pulse output. Codigo interno C-002231.
- Detalle del Producto Descripción Detallada The B
- 0401 Tipping Bucket Rainfall Sensor is an instrument for testing rainfall in the nature
- It can be widely used in weather stations, hydrometric stations, agriculture & forestry, defense & field monitoring stations
| Tipo de Equipo: Detector de Fugas de Caldera |
Descripción Detallada
The B-01-05-0401 Tipping Bucket Rainfall Sensor is an instrument for testing rainfall in the nature. In order to meet the requirement of information transmission, processing, recording and display, the amount of rainfall is converted to pulse output. It can be widely used in weather stations, hydrometric stations, agriculture & forestry, defense & field monitoring stations. It can provide the original data for flood-prevention, water-supply system, and reservoir water management in plant.
Beneficios Clave
Tamaño compacto para fácil uso.
Función de auto-calentamiento opcional.
Construcción robusta de acero inoxidable.
Aplicaciones Principales
- Estaciones meteorológicas
- Estaciones hidrométricas
- Agricultura y silvicultura
- Estaciones de monitoreo de defensa y campo
Galería de Imágenes
Especificaciones Técnicas

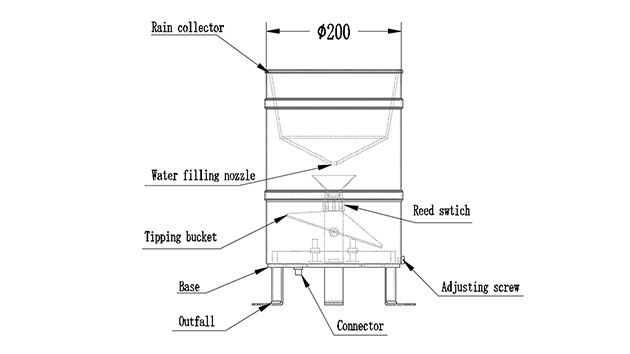

| Rainfall collector | Diameter :φ200mm, height: 350mm |
|---|---|
| Measured rainfall intensity | Max: 4mm/min |
| Allow rainfall intensity | Max: 10mm/min |
| Resolution | 0.1mm, 0.2mm |
| Accuracy(2mm/min) | ±4% |
| Maximum load voltage | 30VDC(pulse output) |
| Maximum load current | 20mA(pulse output) |
| Output | Reed switch pulses,RS485(12-24VDC supply) |
| Operating temperature(no freeze) | -20-+80℃ |
| Main material | Collector:304SS,tipping bucket:ABS |
| Tipping bucket | Single |
| Heating(optional) | Heating power: approx.350WHeating voltage:220VAC |
| Collector filter | Removable filter (prevent leaves and sundries)optional |
| Weight(unpacked) | 3.5kg |
