Sensor de Humedad del Suelo
Descripción e commerce

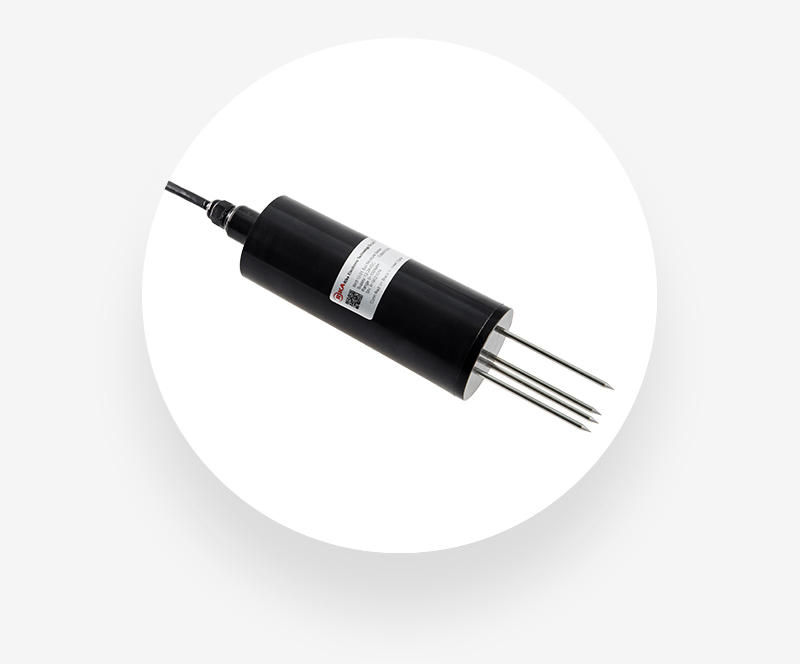

Sensor de Humedad del Suelo. Detalle del Producto Descripción Detallada B-01-05-0510 is a high accuracy, high sensitivity of soil moisture measuring instrument. The soil moisture sensor on the principle of electromagnetic pulse (FDR:Frequency Domain Reflectometry) to measure the dielectric constant of the soil, stainless steel probe is inserted into the soil surface or soil prof. Codigo interno C-002175.
- Detalle del Producto Descripción Detallada B
- 0510 is a high accuracy, high sensitivity of soil moisture measuring instrument
- Soil humidity sensor can be widely applied to the soil moisture monitoring, water-saving irrigation, greenhouse control, fine agriculture, hydrology and meteorology, and other fields, road monitoring
| Tipo de Equipo: Detector de Fugas de Caldera |
Descripción Detallada
B-01-05-0510 is a high accuracy, high sensitivity of soil moisture measuring instrument. The soil moisture sensor on the principle of electromagnetic pulse (FDR:Frequency Domain Reflectometry) to measure the dielectric constant of the soil, stainless steel probe is inserted into the soil surface or soil profile to quickly online measurement of soil volumetric moisture content, the method is the most popular method of soil moisture measurement.It can be used permanently embedded in the soil. Soil humidity sensor can be widely applied to the soil moisture monitoring, water-saving irrigation, greenhouse control, fine agriculture, hydrology and meteorology, and other fields, road monitoring. The soil moisture sensor, based on the principle of electromagnetic pulse using Frequency Domain Reflectometry (FDR), offers a highly efficient means to assess the dielectric constant of the soil. This innovative technology entails the insertion of a stainless steel probe into either the soil surface or profile, enabling rapid and real-time measurement of volumetric moisture content. Undoubtedly, this technique stands as one of the most widely embraced methodologies for gauging soil moisture levels. Notably versatile, it can be permanently embedded within various soils to facilitate continuous monitoring.
Beneficios Clave
Respuesta rápida para mediciones dinámicas (<1s).
Excelente estabilidad a largo plazo.
Ampliamente utilizado en diversas aplicaciones.
Aplicaciones Principales
- Monitoreo de humedad del suelo
- Riego eficiente del agua
- Control de invernaderos
- Agricultura de precisión
- Hidrología y meteorología
Galería de Imágenes
Especificaciones Técnicas
| Range(m3/m3) | 0-100%,0-50%,0-30%, |
|---|---|
| Accuracy | ±2%(0-50%) |
| Output signal | 4-20mA ,0-5V,0-2V,RS485 optional |
| Response time | <1s |
| Supply | 5V,12-24VDC |
| Effective measurement area | With the center of the probe diameter is 70mm, high 70mm cylinder |
| Housing | ABS |
| Dimensions | Ø50*115mm(probe:Ø4*55mm) |
| Operating temperature | -30℃-+70℃ |
| Ingress protection | IP67 |
| Storage | 10-60℃@20%-90%RH |
| Probe material | 316L stainless steel |
