Sensor de Humedad, Temperatura y CE del Suelo
Descripción e commerce

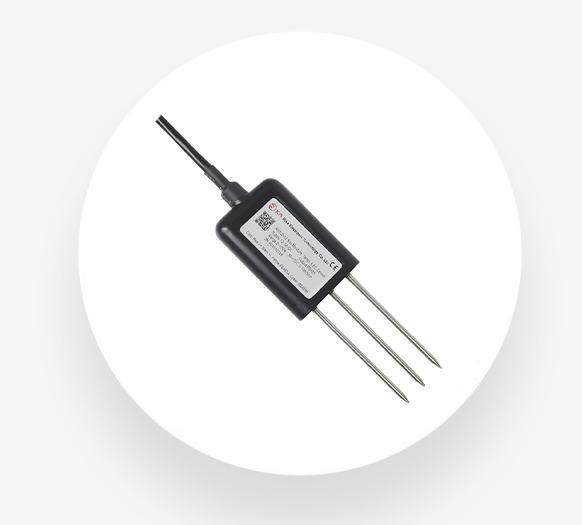

Sensor de Humedad, Temperatura y CE del Suelo. Detalle del Producto Descripción Detallada B-01-05-0512 Soil Moisture, Temperature & soil EC Sensor is integrated the moisture, temperature & EC measurement.The stainless steel probe is inserted into soil surface or soil. Codigo interno C-002240.
- Detalle del Producto Descripción Detallada B
- 0512 Soil Moisture, Temperature & soil EC Sensor is integrated the moisture, temperature & EC measurement.The stainless steel probe is inserted into soil surface or soil profile to test quickly
- The product with temperature compensation to ensure the accuracy of measurement.The probe can be permanently embedded underground and be connected to a data logger for unlimited testing
| Tipo de Equipo: Detector de Fugas de Caldera |
Descripción Detallada
B-01-05-0512 Soil Moisture, Temperature & soil EC Sensor is integrated the moisture, temperature & EC measurement.The stainless steel probe is inserted into soil surface or soil profile to test quickly. The product with temperature compensation to ensure the accuracy of measurement.The probe can be permanently embedded underground and be connected to a data logger for unlimited testing.
Beneficios Clave
Alta precisión en mediciones de humedad, temperatura y CE.
Respuesta rápida para mediciones dinámicas (<1s).
Ampliamente utilizado en diversas aplicaciones.
Aplicaciones Principales
- Monitoreo de humedad, temperatura y CE del suelo
- Agricultura y riego
- Investigación de suelos
- Monitoreo ambiental
Galería de Imágenes
Especificaciones Técnicas
| Range Moisture | 0-100%（m3/m3） |
|---|---|
| Range Temperature | -30℃-+70℃ |
| Range EC | 0-10mS/cm |
| Accuracy Moisture | ±2%(0-50%)±3%(51-100%) |
| Accuracy Temperature | ±0.5℃ |
| Accuracy EC | ±3%FS |
| Output Signal | RS485,0-2V |
| Response Time | <1s |
| Supply | 5VDC, 12-24VDC |
| Effective measurement area | With the center of the probe diameter is 70mm, high 70mm cylinder |
| Housing | ABS |
| Dimensions | 45*15*145mm( probe:3* Ø3*70mm) |
| Operating Temperature | -40℃-+80℃ |
| Ingress Protection | IP68 |
| Storage | 10-60℃@20%-90%RH |
| Probe material | 316L stainless steel |
