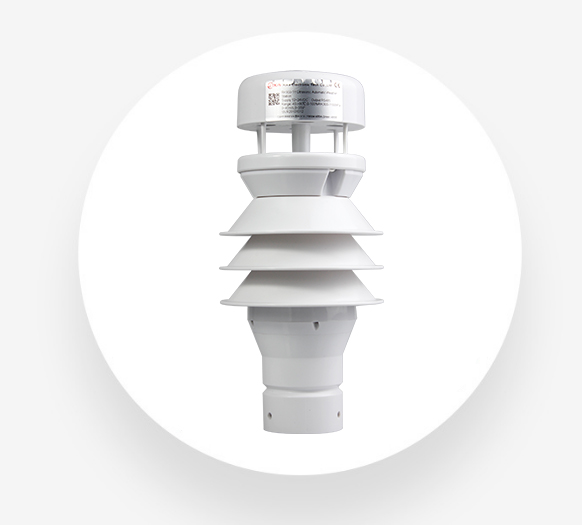

Estación Meteorológica Automática Ultrasónica
Descripción e commerce
Estación Meteorológica Automática Ultrasónica. Detalle del Producto Descripción Detallada B-01-05-4021 mini automatic weather station is a civil integrated weather station independently developed by our company that can measure multiple meteorological parameters. It can simultaneously measure six major meteorological elements such as atmospheric temperature, atmospheric humidity, wind speed, wind direction, air pressure and rainfall. Codigo interno C-002220.
- Detalle del Producto Descripción Detallada B
- 4021 mini automatic weather station is a civil integrated weather station independently developed by our company that can measure multiple meteorological parameters
- B-01-05-4021 user a low-power chip with a power consumption of only 1.7W, which is especially suitable for solar energy or battery-powered environment with high requirements on power consumption
| Tipo de Equipo: Analizador de Gases de Suelo |
Descripción Detallada
B-01-05-4021 mini automatic weather station is a civil integrated weather station independently developed by our company that can measure multiple meteorological parameters. It can simultaneously measure six major meteorological elements such as atmospheric temperature, atmospheric humidity, wind speed, wind direction, air pressure and rainfall. B-01-05-4021 user a low-power chip with a power consumption of only 1.7W, which is especially suitable for solar energy or battery-powered environment with high requirements on power consumption. As a result of the adoption of new technology and new process, the structure is more compact and compact. Solar radiation and solar illuminance detection module can also be selected, which is very suitable for supporting agricultural meteorological system. The outer shell is ABS engineering plastic, available in black and white.
Beneficios Clave
Alta precisión en las mediciones.
Respuesta rápida.
Medición de lluvia por radar.
Aplicaciones Principales
- Meteorología civil y agrícola
- Estaciones meteorológicas compactas
- Sistemas con bajo consumo energético
Galería de Imágenes
Especificaciones Técnicas
| Wind speed Range | 0-40m/s |
|---|---|
| Wind speed Resolution | 0.1m/s |
| Wind speed Accuracy | ±3% |
| Wind direction Range | 0-359° |
| Wind direction Resolution | 1° |
| Wind direction Accuracy | ±3° |
| Atmospheric temperature Range | 0－100% |
| Atmospheric temperature Resolution | 1% |
| Atmospheric temperature Accuracy | ±5％ |
| Atmospheric pressure Range | 150 － 1100hPa |
| Atmospheric pressure Resolution | 0.1hPa |
| Atmospheric pressure Accuracy | ±1 |
| Rainfall Range | 0-200mm/hr |
| Rainfall Resolution | 0.1mm |
| Rainfall Accuracy | ±5％（ @ wind speed≤5m/s ） |
| Altitude Range | -500m – 9000m |
| Altitude Resolution | 1m |
| Altitude Accuracy | ±8％ |
| Radiation Range | 0-2000W/m2 |
| Radiation Resolution | 0.1 W/m2 |
| Radiation Accuracy | ±5％（@ Vertical irradiation） |
| Illumination Range | 0-200000lux |
| Illumination Resolution | 0.1 lux |
| Illumination Accuracy | ±5％（@ Vertical irradiation） |
| PM2.5 Range | 0-2000 ug/m3 |
| PM2.5 Resolution | 1 ug/m3 |
| PM2.5 Accuracy | ±10％ |
| PM10 Range | 0-2000 ug/m3 |
| PM10 Resolution | 1 ug/m3 |
| PM10 Accuracy | ±10％ |
| Visibility Range | 10-5000m |
| Visibility Resolution | 1m |
| Visibility Accuracy | ±15% |
| Power Supply | 12-24VDC |
| Power consumption | 1.7W |
| Output Signal | RS232/RS485(Modbus or NMEA-183), SDI-12 |
| OperatingTemperature | -20℃-+60℃ |
| Ingress Protection | IP65 |
| Dimension | Φ82mm×（108-240）mm (Dimensions will vary depending on the parameters) |
| Weight(unpacked) | 0.38kg |
| Main material | ASA |
