Sensor de Gas (Multiparámtero CO, SO₂, PM2.5)
Descripción e commerce
Sensor de Gas (Multiparámtero CO, SO₂, PM2.5). Detalle del Producto Descripción Detallada B-01-05-4027 Multi-in-one Gas Sensor adopts high-precision chip for data acquisition, advanced techonolgy of manufacturing technique and surface mount, which to ensure accurate. It has outstanding characterstics in measurement accuracy, linearity, repeatability, interoperability, consistency and other aspects. Codigo interno C-002227.
- Detalle del Producto Descripción Detallada B
- one Gas Sensor adopts high
- precision chip for data acquisition, advanced techonolgy of manufacturing technique and surface mount, which to ensure accurate and reliable measurement data
| Tipo de Equipo: Detector de Fugas de Caldera |
Descripción Detallada

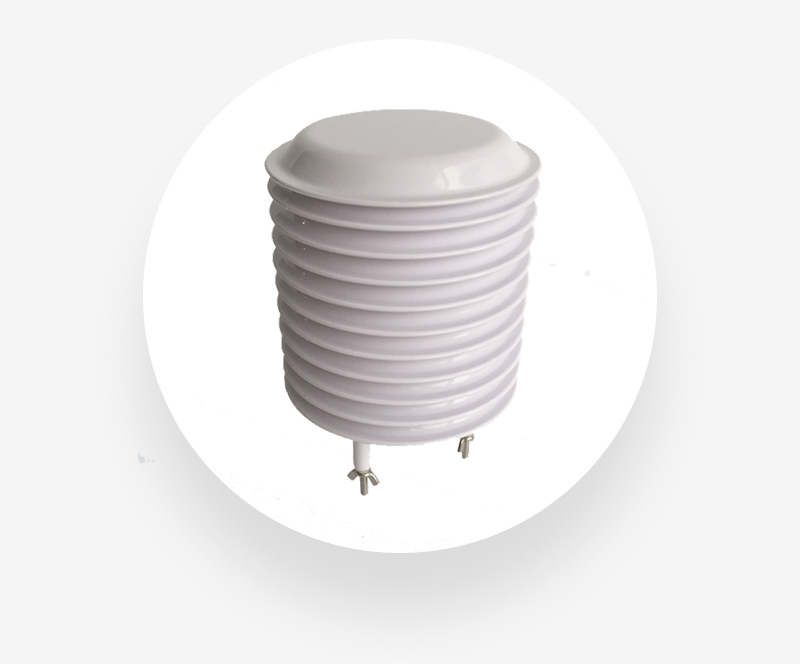

B-01-05-4027 Multi-in-one Gas Sensor adopts high-precision chip for data acquisition, advanced techonolgy of manufacturing technique and surface mount, which to ensure accurate and reliable measurement data. It has outstanding characterstics in measurement accuracy, linearity, repeatability, interoperability, consistency and other aspects. It is suitable for environmental equipment matching，integration, and most of the general environmental tests.B-01-05-4027 with complete monitoring parameters and accurate data. The parameters can be customized according to the requirements, up to 5-6 parameters, including air temperature, air humidity, CO2 concentration, CO concentration, PM1.0/2.5/10.0, atmospheric pressure, formaldehyde, oxygen, ozone, volatile organic compounds, air quality, etc.
Beneficios Clave
Compensación de temperatura integrada.
Múltiples opciones de señal de salida.
Display LCD opcional para visualización directa.
Aplicaciones Principales
- Monitoreo de calidad del aire
- Hogares inteligentes
- Integración en equipos ambientales
Galería de Imágenes
Especificaciones Técnicas
| Temperature Range | －30℃～70℃ |
|---|---|
| Temperature Resolution | 0.1℃ |
| Temperature Accuracy | RS485 |
| Humidity Range | 0～100%RH |
| Humidity Resolution | 0.1%RH |
| Humidity Accuracy | ±3%RH |
| Illuminance Range | 0～200K Lux |
| Illuminance Resolution | 10 Lux |
| Illuminance Accuracy | ±5% |
| Dew point temperature Range | －100℃～40℃ |
| Dew point temperature Resolution | 0.1℃ |
| Dew point temperature Accuracy | ±0.5hPa |
| CO2 Range | 0～5000ppm |
| CO2 Resolution | 1ppm |
| CO2 Accuracy | ±75ppm＋2%rdg |
| Civil CO Range | 0～500ppm |
| Civil CO Resolution | 0.1ppm |
| Civil CO Accuracy | ±2%FS |
| PM1.0/2.5/10 Range | 0～1000μg/m3 |
| PM1.0/2.5/10 Resolution | 1μg/m3 |
| PM1.0/2.5/10 Accuracy | ±3%FS |
| TVOC Range | 0～5000ppb |
| TVOC Resolution | 1ppb |
| TVOC Accuracy | ±3% |
| CH2O Range | 0～5000ppb |
| CH2O Resolution | 10ppb |
| CH2O Accuracy | ±3% |
| O2 Range | 0～25%VOL |
| O2 Resolution | 0.1%VOL |
| O2 Accuracy | ±2%FS |
| O3 Range | 0～10ppm |
| O3 Resolution | 0.01ppm |
| O3 Accuracy | ±2%FS |
| Air quality Range | 0～10mg/m3 |
| Air quality Resolution | 0.05 mg/m3 |
| Air quality Accuracy | ±2%FS |
| NH3 Range | 0～100ppm |
| NH3 Resolution | 1ppm |
| NH3 Accuracy | ±2%FS |
| H2S Range | 0～100ppm |
| H2S Resolution | 1ppm |
| H2S Accuracy | ±2%FS |
| NO2 Range | 0～20ppm |
| NO2 Resolution | 0.1ppm |
| NO2 Accuracy | ±2%FS |
| Odour Range | 0～50ppm |
| Odour Resolution | 0.01ppm |
| Odour Accuracy | ±2%FS |
| SO2 Range | 0～20ppm |
| SO2 Resolution | 0.1ppm |
| SO2 Accuracy | ±2%FS |
| Cl2 Range | 0～10ppm |
| Cl2 Resolution | 0.1ppm |
| Cl2 Accuracy | ±2%FS |
| Civil gas Range | 0～5000ppm |
| Civil gas Resolution | 50ppm |
| Civil gas Accuracy | ±3%FS |
| Supply | 12-24VDC |
| Output | RS485 |
| WarmUpTime | 3min |
| Response Time | <1s |
| Stability | |
| Repeatability | |
| Operating Temperature | -20℃-+60℃@15-80%RH |
| Storage | -40-70℃@20%-90%RH |
| Shell Material | ABS |
