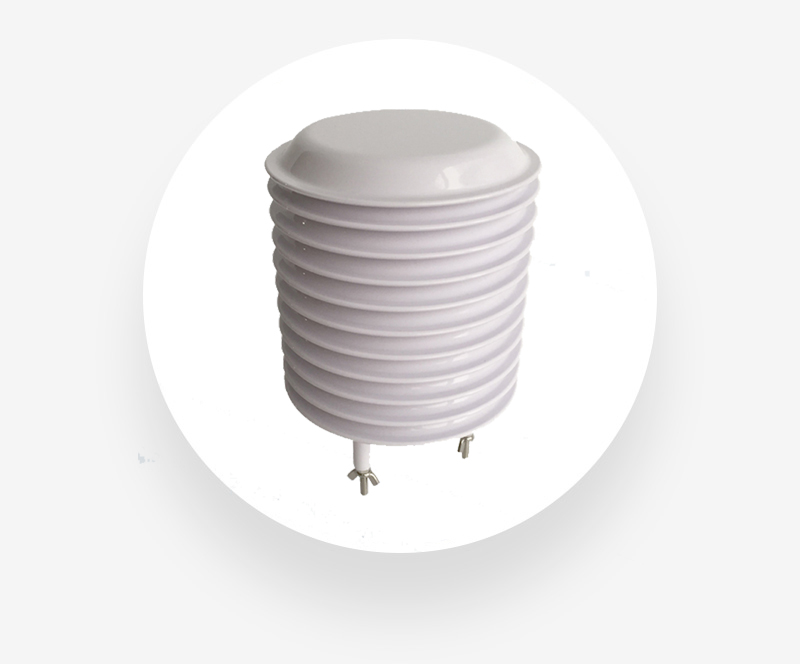

Sensor de Concentración de SO₂
Descripción e commerce
Sensor de Concentración de SO₂. Detalle del Producto Descripción Detallada B-01-05-4028 SO2 Concentration sensor adopts professional test SO2 concentration sensor probe as the core detection device; it has the characteristics of wide measurement range,. Beneficios Clave Alta precisión y buena linealidad en mediciones. Respuesta rápida (<90s) para detección oportuna. Codigo interno C-002229.
- Detalle del Producto Descripción Detallada B
- 4028 SO2 Concentration sensor adopts professional test SO2 concentration sensor probe as the core detection device
- it has the characteristics of wide measurement range, high accuracy, good linearity, good versatility, convenient use, easy installation, long transmission distance, and moderate price
| Tipo de Equipo: Detector de Fugas de Caldera |
Descripción Detallada
B-01-05-4028 SO2 Concentration sensor adopts professional test SO2 concentration sensor probe as the core detection device; it has the characteristics of wide measurement range, high accuracy, good linearity, good versatility, convenient use, easy installation, long transmission distance, and moderate price.
Beneficios Clave
Alta precisión y buena linealidad en mediciones.
Excelente estabilidad a largo plazo.
Respuesta rápida (<90s) para detección oportuna.
Aplicaciones Principales
- Meteorology
- Hydrology
- Agriculture
- Forestry
- Field monitoring stations
Galería de Imágenes
Especificaciones Técnicas
| Range(concentration) | 0-20ppm |
|---|---|
| Accuracy | ±（4ppm+2%F•S） |
| Resolution | 1ppm |
| Supply | Mark on the label |
| Output | RS485 |
| Power Consumption | <50mA@24V(4-20mA) |
| Warm Up Time | 3min |
| Response Time | <90s |
| Repeatability | |
| Weight | 140g |
| Storage | -40-70℃@20%-90%RH |
| Operating | -20℃-+60℃@15-80%RH |
| Shell Material | ABS |
