Radiómetro de Dispersión
Descripción e commerce
Radiómetro de Dispersión. Detalle del Producto Descripción Detallada Scattering radiometer is composed of Pyranometer and shielding ring.The purpose of a shielding ring is to keep the sun's direct radiation out from sunrise to sunset.The shieldin. Codigo interno C-002232.
- The shielding ring is fixed on the screw rod adjustment spiral of the ruler, on which the latitude scale and declination scale are engraved.The ruler and bracket shall be fixed on the chassis according to the geographica
- Beneficios Clave Conforme a los estándares de la OMM
- Adecuado para entornos hostiles
| Tipo de Equipo: Analizador de Gases de Suelo |
Descripción Detallada

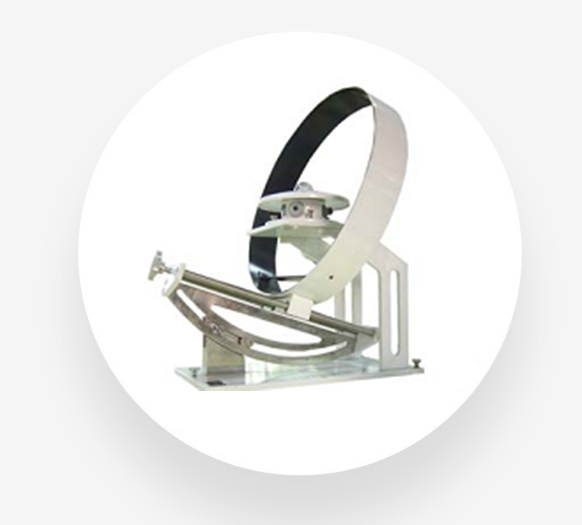

Scattering radiometer is composed of Pyranometer and shielding ring.The purpose of a shielding ring is to keep the sun's direct radiation out from sunrise to sunset.The shielding ring is composed of shielding ring, ruler,adjusting screw, bracket and chassis.The width of the shielding ring is 65mm and the diameter is 400mm. The shielding ring is fixed on the screw rod adjustment spiral of the ruler, on which the latitude scale and declination scale are engraved.The ruler and bracket shall be fixed on the chassis according to the geographical latitude of the location.It can be widely used to continuously measure the scattered radiation intensity of the sky with meteorological stations and scientific research departments.
Beneficios Clave
Conforme a los estándares de la OMM.
Adecuado para entornos hostiles.
Instalación sencilla.
Aplicaciones Principales
- Estaciones meteorológicas
- Departamentos de investigación científica
- Monitorización de radiación solar
Galería de Imágenes
Especificaciones Técnicas
| Spectral range | 280-3000nm |
|---|---|
| Supply | 12-24VDC |
| Range | 0-2000W/m2 |
| Output | 0-5V,4-20mA,RS485 |
| Sensitivity | 7-14μV*W-1*m2 |
| Latitude scale range | 0～50°N or S |
| Red latitude | ±25° |
| Ring diameter | Φ400mm |
| Accuracy | |
| Responsetime | ≤30s(99%) |
| Stability | ±1%/year |
| Temperature effect | ±1%(-10℃-+40℃) |
| Operating temperature | -40℃-+80℃ |
| Weight(unpacked) | 15kg |
| Ingress Protection | IP65 |
| Storage Condition | 10℃-60℃@20%-90%RH |
Componentes y Accesorios
Piranómetro, anillo de sombra
Cumplimiento de Estándares
WMO
