Sensor de Concentración de CO
Descripción e commerce

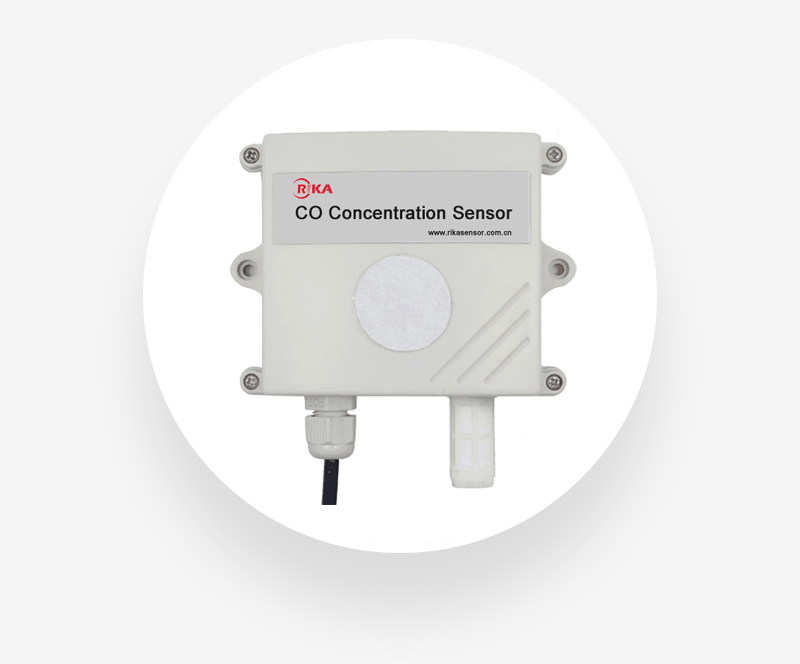

Sensor de Concentración de CO. Detalle del Producto Descripción Detallada The product uses electro-chemical technology to measure CO concentration, which is fast and sensitive. It is widely used in air quality detection, smart home and other occasions where CO detection is needed. The shell has high protection level and can adapt to various harsh conditions on site. Codigo interno C-002237.
- Detalle del Producto Descripción Detallada The product uses electro
- chemical technology to measure CO concentration, which is fast and sensitive
- Beneficios Clave Display LCD opcional para visualización directa
| Tipo de Equipo: Detector de Fugas de Caldera |
Descripción Detallada
The product uses electro-chemical technology to measure CO concentration, which is fast and sensitive. It is widely used in air quality detection, smart home and other occasions where CO detection is needed. The shell has high protection level and can adapt to various harsh conditions on site.
Beneficios Clave
Display LCD opcional para visualización directa.
Compensación de temperatura integrada (solo salida digital).
Respuesta rápida (<2s) para detección oportuna.
Aplicaciones Principales
- Monitoreo de calidad del aire
- Hogares inteligentes
- Detección de CO en general
Galería de Imágenes
Especificaciones Técnicas
| Range(CO concentration) | 0-2000ppm |
|---|---|
| Range(temperature ) | -40-+80℃ only for digital output |
| Range(humidity ) | 0-100% only for digital output |
| Accuracy(CO concentration) | ≤0.02%FS/℃ |
| Resolution(CO concentration) | 0.1ppm |
| Supply | 12-24VDC |
| Output | 4-20mA,0-5V,0-10V,RS485 |
| Power Consumption | <0.25W |
| WarmUpTime | 3min |
| Response Time | <2s |
| Repeatability | |
| Operating Temperature | -20℃-+60℃@15-80%RH |
| Storage | -40-70℃@20%-90%RH |
| Shell Material | ABS |
| Installation | Wall-mounted |
| Zero drift | <10ppm |
| Dimension | 110*85*44mm |
