Sensor de Lluvia de Balancín (Miniatura)
Descripción e commerce

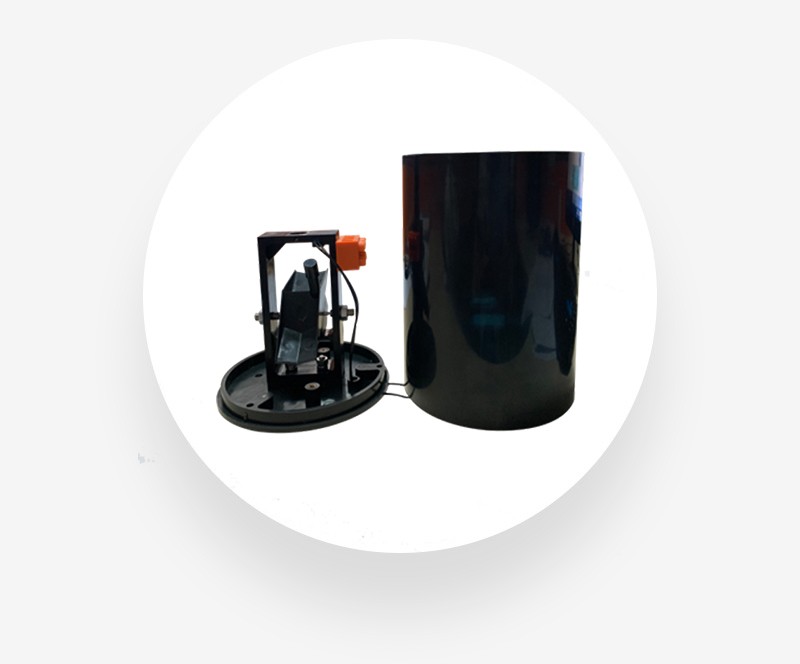

Sensor de Lluvia de Balancín (Miniatura). Detalle del Producto Descripción Detallada B-01-05-4044 miniature tipping bucket rainfall sensor is a hydrology, meteorological instrument used to measure the nature of rainfall, and it converts the precipitation into a. The model can be used in meteorology, hydrology, agriculture, forestry, field monitoring stations and other industries. Codigo interno C-002250.
- Detalle del Producto Descripción Detallada B
- 4044 miniature tipping bucket rainfall sensor is a hydrology, meteorological instrument used to measure the nature of rainfall, and it converts the precipitation into a pulse signal output
- Combined with rainfall recorder can be used to measure precipitation, precipitation intensity, precipitation time
| Tipo de Equipo: Detector de Fugas de Caldera |
Descripción Detallada
B-01-05-4044 miniature tipping bucket rainfall sensor is a hydrology, meteorological instrument used to measure the nature of rainfall, and it converts the precipitation into a pulse signal output. The model can be used in meteorology, hydrology, agriculture, forestry, field monitoring stations and other industries. Combined with rainfall recorder can be used to measure precipitation, precipitation intensity, precipitation time.
Beneficios Clave
Tamaño compacto para fácil uso.
Alta precisión en mediciones (±4%).
Función de auto-calentamiento opcional.
Aplicaciones Principales
- Meteorology
- Hydrology
- Agriculture
- Forestry
- Field monitoring stations
Galería de Imágenes
Especificaciones Técnicas

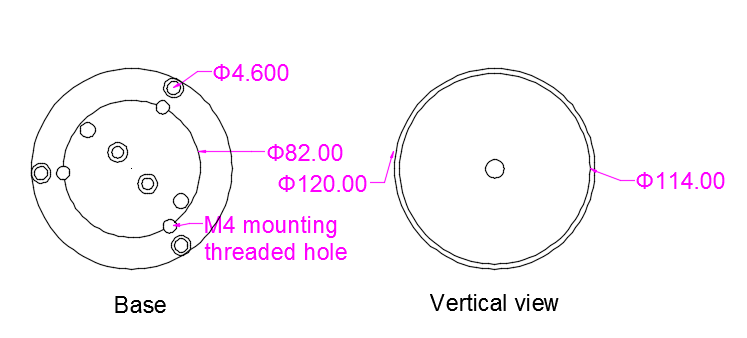

| Collector | Diameter :Φ114mm |
|---|---|
| Measured rainfall | Max: 4mm/min |
| Allow rainfall | Max: 8mm/min |
| Resolution | 0.2mm(6.28mL) |
| Accuracy(2mm/min) | ±4% |
| Output | Pulses,RS485(12-24VDC supply) |
| Operating temperature | 0-60℃@0%-100%RH |
| Main material | ABS |
| Weight(unpacked) | 450g |
