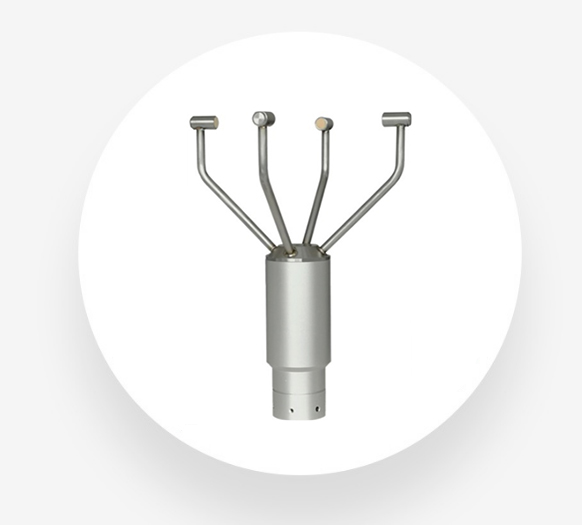

Sensor Ultrasónico de Velocidad y Dirección del Viento
Descripción e commerce
Sensor Ultrasónico de Velocidad y Dirección del Viento. Detalle del Producto Descripción Detallada B-01-05-4051Ultrasonic Wind Speed & Direction Sensor’s work principle is by ultrasonic transit~time to measure the wind speed. The Anemometer has the feature of light weight, no moving parts, durability. And again, no need maintenance and on~site calibration, wind speed and direction can also output at the same time. Codigo interno C-002261.
- Detalle del Producto Descripción Detallada B
- 4051Ultrasonic Wind Speed & Direction Sensor’s work principle is by ultrasonic transit~time to measure the wind speed
- If necessary, customers may select wind speed unit, the output frequency and output format, may also select the heating device (recommended in the cold environment) or analog output
| Tipo de Equipo: Detector de Fugas de Caldera |
Descripción Detallada
B-01-05-4051Ultrasonic Wind Speed & Direction Sensor’s work principle is by ultrasonic transit~time to measure the wind speed. The Anemometer has the feature of light weight, no moving parts, durability. And again, no need maintenance and on~site calibration, wind speed and direction can also output at the same time. If necessary, customers may select wind speed unit, the output frequency and output format, may also select the heating device (recommended in the cold environment) or analog output. It can connect with computers, data acquisition, or other RS485 or analog output consistent with the collection of equipment. If necessary, you can also form a network of multiple to use.Ultrasonic Anemometer is an advanced equipment of wind speed detection. Because it can overcome the inherent defects of mechanical anemometer, it can work in whole day, long time. it gets more and more widely used and is a powerful replacement of mechanical anemometer.
Beneficios Clave
Bajo umbral de inicio para mediciones.
Construcción general en fibra de carbono.
Fuerte capacidad de resistencia a la corrosión.
Aplicaciones Principales
- Meteorología general
- Adquisición de datos
- Redes de sensores
Galería de Imágenes
Especificaciones Técnicas
| Range | 0-60m/s / 0-359° |
|---|---|
| Accuracy | ±2% / ±3° |
| Resolution | 0.01m/s / 1° |
| Power Supply | 12-24VDC(Heating must be 24VDC) |
| Power consumption | <0.2W (Heating not activated); <48W (Heating activated) |
| Output Signal | RS232/RS485(Modbus/NMEA-0183),SDI-12 |
| Wind speed unit | m/s, knots, mph, kph, ft/min |
| Ultrasonic output frequency | 1Hz (default); 10Hz (optional) |
| Operating Temperature | -50℃ - +70℃ |
| Ingress Protection | IP66 |

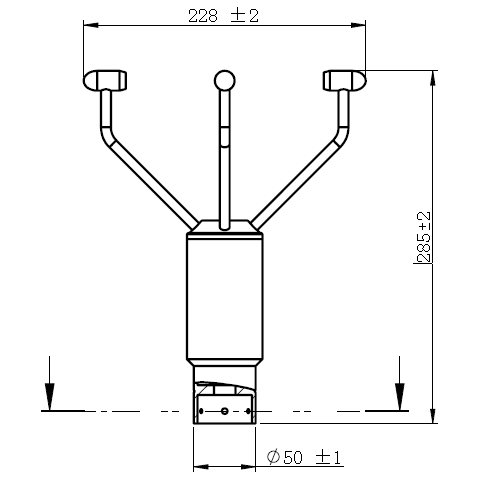

| Dimension/ Weight(unpacked) | Ф228*286mm/1.13kg |
| Main material | Stainless steel + aluminum alloy |
