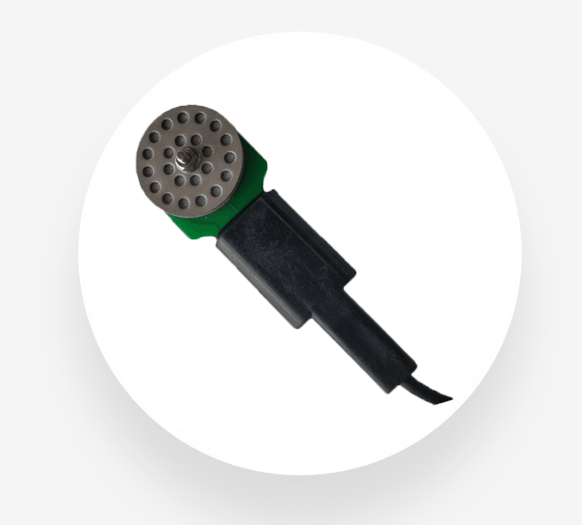

Sensor de Potencial Hídrico del Suelo
Descripción e commerce
Sensor de Potencial Hídrico del Suelo. Detalle del Producto Descripción Detallada Soil water potential is the amount of energy required to extract a unit of water from the soil at the same temperature in kilopascals (kPa).When the soil moisture is saturated,. Codigo interno C-002267.
- The more arid the soil is, the greater the negative value will be.In the study of plant water demand, soil water content cannot reflect the availability of plants, and soil water potential is the only index to judge the
- Beneficios Clave Respuesta rápida para mediciones dinámicas
- Beneficios Clave Respuesta rápida
| Tipo de Equipo: Detector de Fugas de Caldera |
Descripción Detallada
Soil water potential is the amount of energy required to extract a unit of water from the soil at the same temperature in kilopascals (kPa).When the soil moisture is saturated, the water potential is zero.The water content is lower than the saturation state, and the water potential is negative. The more arid the soil is, the greater the negative value will be.In the study of plant water demand, soil water content cannot reflect the availability of plants, and soil water potential is the only index to judge the degree of drought.
Beneficios Clave
Respuesta rápida para mediciones dinámicas.
Excelente estabilidad en mediciones.
Ampliamente utilizado en diversas aplicaciones.
Aplicaciones Principales
- Agricultura y riego inteligente
- Estudios de suelo y sequía
- Monitoreo ambiental
- Investigación científica
Galería de Imágenes
Especificaciones Técnicas
| Range | -10~-500kPa |
|---|---|
| Supply | 2.5VDC / 5-30VDC |
| Output Signal | 500~1000 mV / RS485 |
| Accuracy | ±25%(-5~-100kPa),±35%(-100~-300kPa),±50%(-300~-500kPa) |
| Resolution | 0.1kPa |
| Element | Ceramic |
| Response Time | 10ms |
| Operating Temperature | -40℃~+70℃ |
| Dimension | 90.5 × 30.7 × 11mm |
| Storage | 10-60℃@20%-90%RH |
| Weight(unpacked) | 155g |
