Sensor de DQO
Descripción e commerce

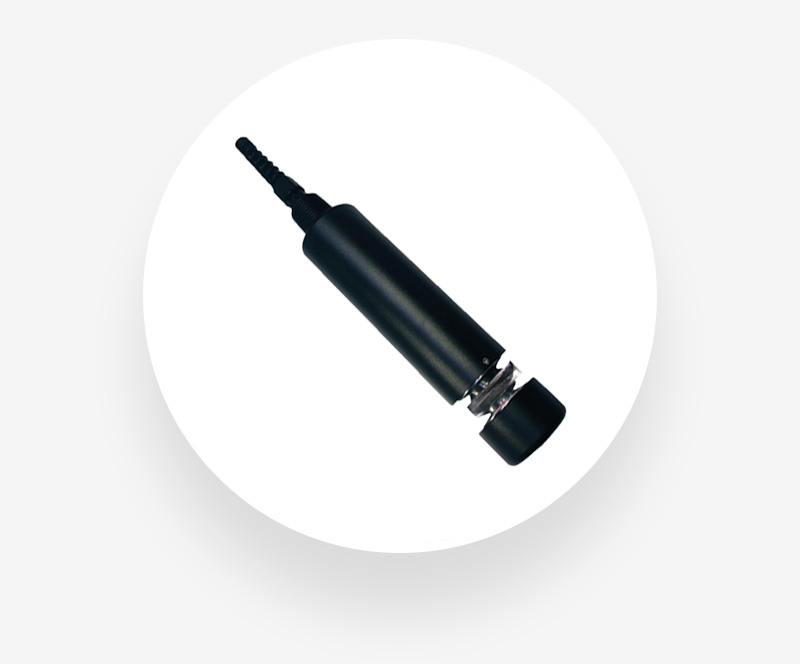

Sensor de DQO. Detalle del Producto Descripción Detallada Most organic matter dissolved in water is absorbent to ultraviolet light. Therefore, the content of dissolved organic pollutants in water can be accurately measured by measuring the extent to which these organics absorb UV light at 254nm. Codigo interno C-002268.
- The B-01-05-4055 COD sensor adopts two light sources, one is ultraviolet light for measuring COD content in water and the other is reference light for measuring turbidity in water
- 4055 COD sensor adopts two light sources, one is ultraviolet light for measuring COD content in water and the other is reference light for measuring turbidity in water
- The optical path attenuation is compensated by a specific algorithm, which can eliminate the interference of particulate suspended matter impurities on the measurement results to a certain extent, thus making the measure
| Tipo de Equipo: Detector de Fugas de Caldera |
Descripción Detallada
Most organic matter dissolved in water is absorbent to ultraviolet light. Therefore, the content of dissolved organic pollutants in water can be accurately measured by measuring the extent to which these organics absorb UV light at 254nm. The B-01-05-4055 COD sensor adopts two light sources, one is ultraviolet light for measuring COD content in water and the other is reference light for measuring turbidity in water. The optical path attenuation is compensated by a specific algorithm, which can eliminate the interference of particulate suspended matter impurities on the measurement results to a certain extent, thus making the measurement results more stable and reliable.
Beneficios Clave
Alta precisión en mediciones de DQO y turbidez.
Respuesta rápida (<2s) para monitoreo en tiempo real.
Excelente estabilidad y compensación de turbidez.
Aplicaciones Principales
- Agricultural Irrigation
- Biodegradation
- Well
- Chemical
- River
- Reservoir
- Water Treatment
- Urban Sewage
Galería de Imágenes
Especificaciones Técnicas
| Measurement Principle | Dual wavelength 254nm and 550nm absorption method |
|---|---|
| Standard | DIN 38402 C2,DIN 38404 and HJ T191 |
| Range COD | 0-500mg/L,0-1000mg/L |
| Range Turbidity | 0-200NTU |
| Accuracy | ±5%F.S |
| Resolution | 0.02mg/L |
| Supply | DC12-28V |
| Power consumption | When the cleaning brush is not working:<0.2W / During cleaning brush operation: <1.5W |
| Response time | <2s |
| Output signal | 4-20mA&RS485 |
| Operating evironment | -5-+60℃(<0.5MPa) |
| Cable length | 5m(default), customizable |
| Probe material | 316L stainless steel |
| Ingress protection | IP68 |
| Storage | 10-60℃@20%-90%RH |
Cumplimiento de Estándares
DIN 38402 C2,DIN 38404 and HJ T191
