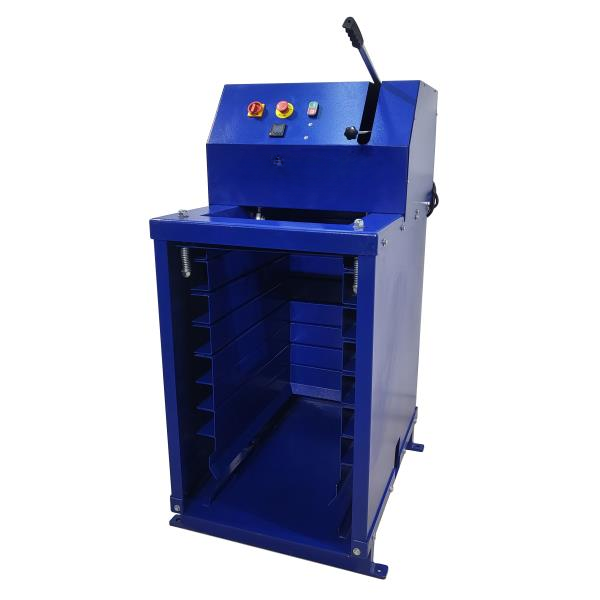

<p><strong>Código del fabricante:</strong> HR-G0535</p> Ideal para clasificar grandes cantidades de piedra triturada, arena, grava, escoria, carbón, coque, minerales, pellets y materiales similares.
El agitador de tamices tiene una capacidad aproximada de 30 litros (60-70 kg) de muestra. Para usar con tamices de 40x60 cm.
Disponemos de tamices de diferentes tamaños bajo pedido.
La capacidad es de 6 tamices y tapa.
El agitador incorpora un temporizador programable hasta 99 minutos.
Las series HR-G0535, HR-G0520 y HR-G0525 incluyen ajuste/control de frecuencia.
Cumplimiento normativo
TS EN 1339, 1367-1, EN 932-5, ISO 3310-1, TS 2824

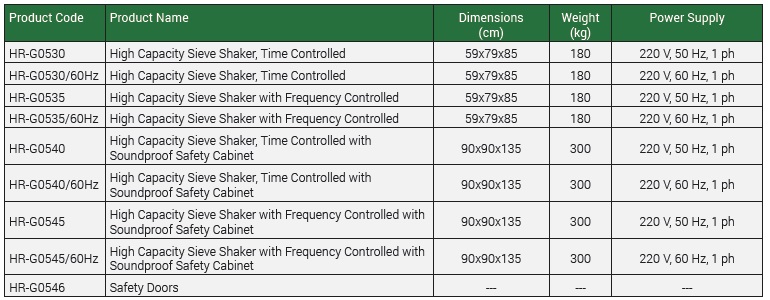

Especificaciones Técnicas
Código
Descripción
Dimensiones (cm)
Peso (kg)
Alimentación
B2-01-03-0126-01
High Capacity Sieve Shaker, Time Controlled
59x79x85
180
220 V, 50 Hz, 1 ph
B2-01-03-0126-02z
High Capacity Sieve Shaker, Time Controlled
59x79x85
180
220 V, 60 Hz, 1 ph
B2-01-03-0126-03
High Capacity Sieve Shaker with Frequency Controlled
59x79x85
180
220 V, 50 Hz, 1 ph
B2-01-03-0126-04z
High Capacity Sieve Shaker with Frequency Controlled
59x79x85
180
220 V, 60 Hz, 1 ph
B2-01-03-0126-05
High Capacity Sieve Shaker, Time Controlled with Soundproof Safety Cabinet
90x90x135
300
220 V, 50 Hz, 1 ph
B2-01-03-0126-06z
High Capacity Sieve Shaker, Time Controlled with Soundproof Safety Cabinet
90x90x135
300
220 V, 60 Hz, 1 ph
B2-01-03-0126-07
High Capacity Sieve Shaker with Frequency Controlled with Soundproof Safety Cabinet
90x90x135
300
220 V, 50 Hz, 1 ph
B2-01-03-0126-08z
High Capacity Sieve Shaker with Frequency Controlled with Soundproof Safety Cabinet
90x90x135
300
220 V, 60 Hz, 1 ph
B2-01-03-0126-09
Safety Doors
---
---
---

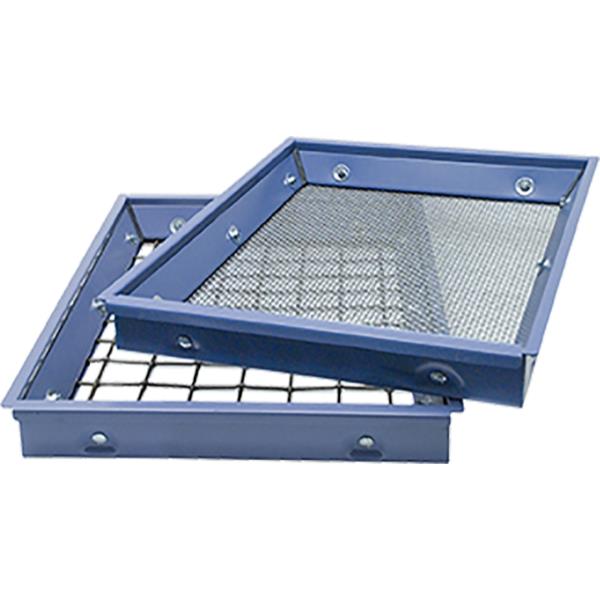

Especificaciones Técnicas
Código
Frame Dimensions (cm)
Aperture Size (mm)
B2-01-03-0126-10
40x60x7,5
125 mm
B2-01-03-0126-11
40x60x7,5
100 mm (4")
B2-01-03-0126-12
40x60x7,5
90 mm (3 ½")
B2-01-03-0126-13
40x60x7,5
80 mm
B2-01-03-0126-14
40x60x7,5
75 mm (3")
B2-01-03-0126-15
40x60x7,5
63 mm (2 ½")
B2-01-03-0126-16
40x60x7,5
56 mm
B2-01-03-0126-17
40x60x7,5
53 mm (2.12")
B2-01-03-0126-18
40x60x7,5
50 mm (2")
B2-01-03-0126-19
40x60x7,5
45 mm (1 ¾")
B2-01-03-0126-20
40x60x7,5
40 mm
B2-01-03-0126-21
40x60x7,5
37.5 mm (1-½")
B2-01-03-0126-22
40x60x7,5
31.5 mm (1 ¼")
B2-01-03-0126-23
40x60x7,5
26.5 mm (1.06")
B2-01-03-0126-24
40x60x7,5
25 mm (1")
B2-01-03-0126-25
40x60x7,5
22.4 mm (7/8")
B2-01-03-0126-26
40x60x7,5
20 mm
B2-01-03-0126-27
40x60x7,5
19 mm (¾")
B2-01-03-0126-28
40x60x7,5
16 mm (5/8")
B2-01-03-0126-29
40x60x7,5
13.2 mm (.530")
B2-01-03-0126-30
40x60x7,5
12.5 mm (½")
B2-01-03-0126-31
40x60x7,5
11.2 mm (7/16")
B2-01-03-0126-32
40x60x7,5
10 mm
B2-01-03-0126-33
40x60x7,5
9.5 mm (3/8")
B2-01-03-0126-34
40x60x7,5
8 mm (5/16")
B2-01-03-0126-35
40x60x7,5
6.7 mm (.265")
B2-01-03-0126-36
40x60x7,5
6.3 mm (¼")
B2-01-03-0126-37
40x60x7,5
5.6 mm (No. 3 ½)
B2-01-03-0126-38
40x60x7,5
5 mm
B2-01-03-0126-39
40x60x7,5
4.75 mm (No.4)
B2-01-03-0126-40
40x60x7,5
4 mm (No.5)
Especificaciones Técnicas
Código
Descripción
Dimensiones (cm)
Peso (kg)
Alimentación
B2-01-03-0126-01
High Capacity Sieve Shaker, Time Controlled
59x79x85
180
220 V, 50 Hz, 1 ph
B2-01-03-0126-02z
High Capacity Sieve Shaker, Time Controlled
59x79x85
180
220 V, 60 Hz, 1 ph
B2-01-03-0126-03
High Capacity Sieve Shaker with Frequency Controlled
59x79x85
180
220 V, 50 Hz, 1 ph
B2-01-03-0126-04z
High Capacity Sieve Shaker with Frequency Controlled
59x79x85
180
220 V, 60 Hz, 1 ph
B2-01-03-0126-05
High Capacity Sieve Shaker, Time Controlled with Soundproof Safety Cabinet
90x90x135
300
220 V, 50 Hz, 1 ph
B2-01-03-0126-06z
High Capacity Sieve Shaker, Time Controlled with Soundproof Safety Cabinet
90x90x135
300
220 V, 60 Hz, 1 ph
B2-01-03-0126-07
High Capacity Sieve Shaker with Frequency Controlled with Soundproof Safety Cabinet
90x90x135
300
220 V, 50 Hz, 1 ph
B2-01-03-0126-08z
High Capacity Sieve Shaker with Frequency Controlled with Soundproof Safety Cabinet
90x90x135
300
220 V, 60 Hz, 1 ph
B2-01-03-0126-09
Safety Doors
---
---
---
Especificaciones Técnicas
Código
Frame Dimensions (cm)
Aperture Size (mm)
B2-01-03-0126-10
40x60x7,5
125 mm
B2-01-03-0126-11
40x60x7,5
100 mm (4")
B2-01-03-0126-12
40x60x7,5
90 mm (3 ½")
B2-01-03-0126-13
40x60x7,5
80 mm
B2-01-03-0126-14
40x60x7,5
75 mm (3")
B2-01-03-0126-15
40x60x7,5
63 mm (2 ½")
B2-01-03-0126-16
40x60x7,5
56 mm
B2-01-03-0126-17
40x60x7,5
53 mm (2.12")
B2-01-03-0126-18
40x60x7,5
50 mm (2")
B2-01-03-0126-19
40x60x7,5
45 mm (1 ¾")
B2-01-03-0126-20
40x60x7,5
40 mm
B2-01-03-0126-21
40x60x7,5
37.5 mm (1-½")
B2-01-03-0126-22
40x60x7,5
31.5 mm (1 ¼")
B2-01-03-0126-23
40x60x7,5
26.5 mm (1.06")
B2-01-03-0126-24
40x60x7,5
25 mm (1")
B2-01-03-0126-25
40x60x7,5
22.4 mm (7/8")
B2-01-03-0126-26
40x60x7,5
20 mm
B2-01-03-0126-27
40x60x7,5
19 mm (¾")
B2-01-03-0126-28
40x60x7,5
16 mm (5/8")
B2-01-03-0126-29
40x60x7,5
13.2 mm (.530")
B2-01-03-0126-30
40x60x7,5
12.5 mm (½")
B2-01-03-0126-31
40x60x7,5
11.2 mm (7/16")
B2-01-03-0126-32
40x60x7,5
10 mm
B2-01-03-0126-33
40x60x7,5
9.5 mm (3/8")
B2-01-03-0126-34
40x60x7,5
8 mm (5/16")
B2-01-03-0126-35
40x60x7,5
6.7 mm (.265")
B2-01-03-0126-36
40x60x7,5
6.3 mm (¼")
B2-01-03-0126-37
40x60x7,5
5.6 mm (No. 3 ½)
B2-01-03-0126-38
40x60x7,5
5 mm
B2-01-03-0126-39
40x60x7,5
4.75 mm (No.4)
B2-01-03-0126-40
40x60x7,5
4 mm (No.5)
