Marshall Mould

Esta combinación no existe.

SKU: B2-01-03-0154

Descripción General

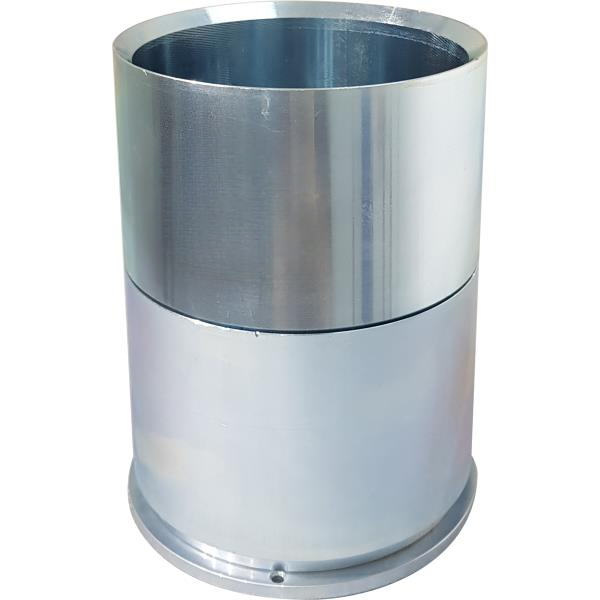

Los moldes de compactación Marshall se utilizan para producir probetas Marshall con compactadores automáticos o manuales.

Incluyen placa base, cuerpo del molde y collar. El molde Marshall está fabricado en acero con recubrimiento anticorrosivo.

Cumplimiento normativo

EN 12697-10, 12697-30, ASTM D1559, D6926, D5581; AASHTO T245

Código	Descripción	Standard	Dimensions	Peso (kg)
B2-01-03-0154-01	Marshall Mould Set	EN	Ø 101,6 mm	3,7
B2-01-03-0154-05	Marshall Mould Set	ASTM	4"	3,7
B2-01-03-0154-09	Marshall Mould Set	ASTM	6"	6
B2-01-03-0154-13	Marshall Storage Plate for 6 pcs. for 4'specimens	EN, ASTM	25x50x7 cm	6

Código	Descripción	Standard	Dimensions	Peso (kg)
B2-01-03-0154-02	Mould Body for B2-01-03-0154-01	EN	Ø 101,6 mm	1,3
B2-01-03-0154-03	Base plate for B2-01-03-0154-01	EN	Ø 120 x 170 mm	1,5
B2-01-03-0154-04	Collar for B2-01-03-0154-01	EN	Ø 101,6 mm	0,9
B2-01-03-0154-06	Mould Body for B2-01-03-0154-05	ASTM	4'	1,3
B2-01-03-0154-07	Base plate for B2-01-03-0154-05	ASTM	Ø 120 x 170 mm	1,5
B2-01-03-0154-08	Collar for B2-01-03-0154-05	ASTM	4'	0,9
B2-01-03-0154-10	Mould Body for B2-01-03-0154-09	ASTM	6'	2,2
B2-01-03-0154-11	Base plate for B2-01-03-0154-09	ASTM	Ø 175 x 210 mm	2,5
B2-01-03-0154-12	Collar for B2-01-03-0154-09	ASTM	6'	1,3

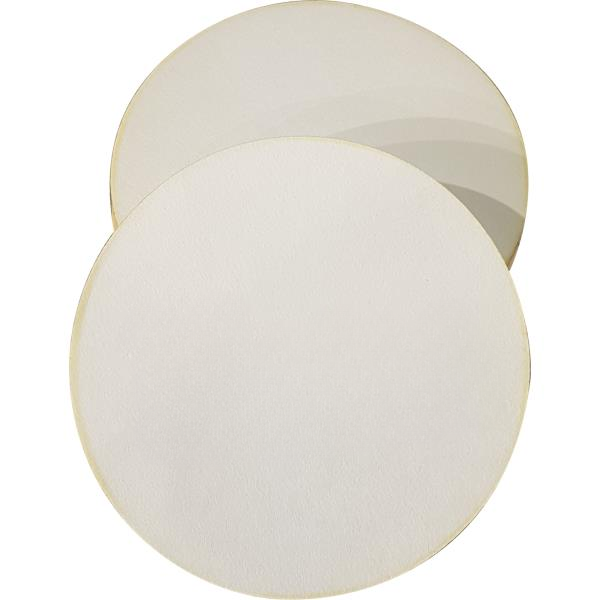

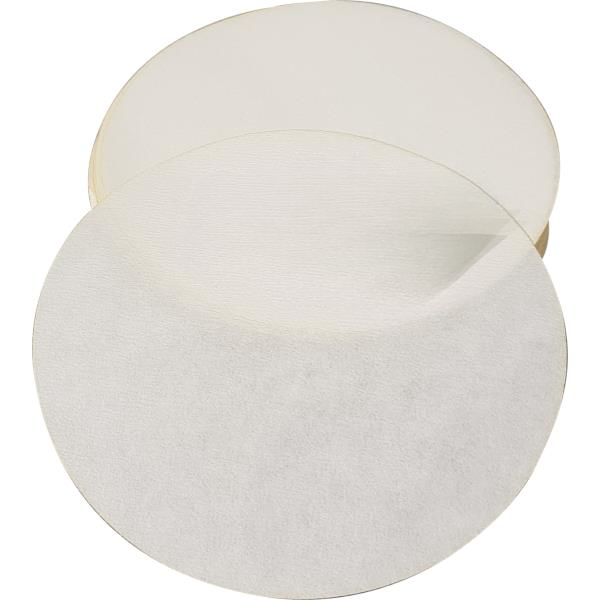

B2-01-03-0154-14	Filter paper for B2-01-03-0154-01 & B2-01-03-0154-05	ASTM	4'	---
B2-01-03-0154-15	Filter paper for B2-01-03-0154-09	ASTM	6'	---
