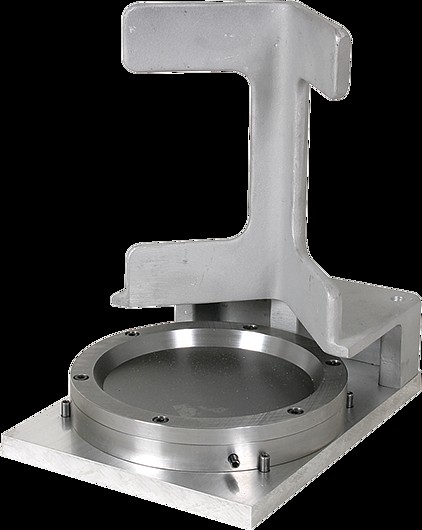

This heavy-duty vertical cylinder capper is used in applying capping compound to 6" x 12" (152 x 305mm) concrete test cylinders in preparation for compression tests. The vertical capper simplifies the capping process by ensuring the plane, end surfaces are at right angles to the axis of the cylinder. The upright is used as a guide for positioning the cylinder. Molten capping compound is poured into the mold (plate); then the cylinder is placed on the capping material. After the compound is set, the capped cylinder is removed for testing. All types of capping compounds can be used with this apparatus. Capping plate is machined and finish-ground from cold-rolled steel to within .002" (.05mm) planeness. Thickness of the capping plate is 0.75" (19mm), to allow regrinding and refinishing after considerable usage should the plate become gouged. Capping plates are round, allowing circular rotation during use that results in uniform wearing down of contacting surfaces for maximum length of service. The frame is machined from high-strength aluminumalloy.
