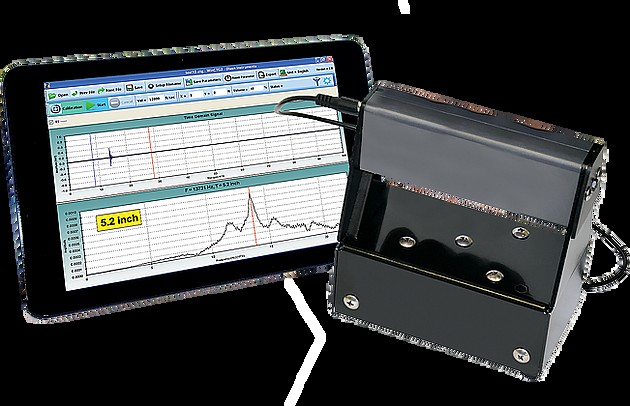

The Concrete thickness gauge measures concrete slab thickness without drilling. With this device you no longer need to drill, core, or excavate sites to determine concrete slab thickness. The CTG-2 is a nondestructive system for measuring the thickness and integrity of concrete slabs. The Concrete thickness gauge detects: voids, honeycomb areas, cracks anddelamination.
It can be used on pavements, tunnel linings, walls and other plate-like structures using the Impact Echo principle. Easy-to-use, this unit requires no special knowledge or training just follow the easy instructions and connect the unit to a user-provided Windows-based computer or tablet
(not included)
and start testing using the included WinCTG2software.
Software Features:
Olsons WinCTG-2 Software is used for data acquisition andanalysis.
Report Capability: Use X and Y coordinates to set up a test grid. Generate a thickness summary table which can be exported to most spreadsheets in comma separated format. For greater accuracy, calibrate the unit at a location of known thickness to obtain the concrete velocity for thejob.
For additional information about non-destructive concrete testing equipment,
clickhere
.
NOTE: TABLET NOTINCLUDED.
