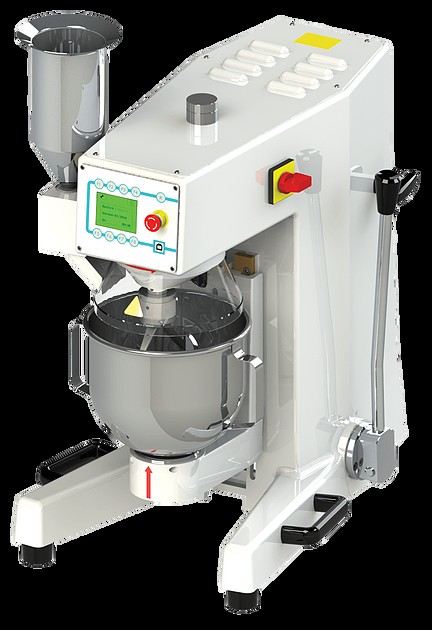

Mixer with 4.73L (5.3qt) capacity provides automatic program control and sand feed with manually-controlled cement and water supply. Provides software with 4 standard programs installed covering the following standards: ASTM C305, EN 196 -1,3,9; EN 480 and EN 413.Two-speed mixer designed to mix cement mortars and pastes. Mixer features a 5 Liter (5.28qt) stainless steel bowl and ASTM stirrer, and a two-speed motor, which runs at either 140 5 rpm or 28510rpm.
Electrical specification is: 110/220V50/60Hz
Features touchscreen-operated control panel, which provides fast, easy control in seven languages. Numerous safety features are incorporated in the mixer and includes a service programs with malfunction messages for operator, including paddle/planetary speed and timemonitoring.
Heavy-duty construction of aluminum and cast iron provides durability and a long service life. The mixer provides a powerful, three-phase DC motor for quiet and maintenance-free operation aided by the use of planetary gears and a toothed, belt drive. The mixing bowl is connected to the mixer by a quick-release clamping system. The distance between the mixing bowl and the stirrer is 3 1 mm and can easily and accuratelyset.
Mixer design conforms to CE standards, featuring a mixing bowl cover, electronic position monitoring of the mixing bowl, emergency stop switch and restartprotection.
Click here
to learn more about cement and mortar principles and testingtechniques.
