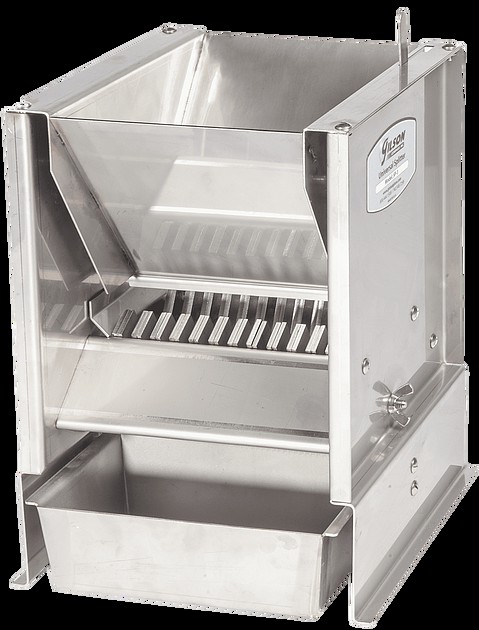

The smallest of the bench-top units is all stainless steel except for aluminum chute bars and pans. Can be used to split powders to .25" (6.4mm) aggregate. The 104 in.3 (1.7L) hopper has a .375" (9.5mm) bottom opening with a spring-loaded gaterelease.
Features:
Versatile Design: 48 adjustable 0.125 in (3 mm) chutebars.
Durable Construction: Made from stainless steel and anodizedaluminum.
Efficient Operation: Spring-loaded gate hoppers evenly release material for accuratesampling.
Standards Compliant: Meets multiple ASTM and AASHTOstandards.
Includes 2 pans.
Specs:
Hopper Capacity: 104 in
3
(1.7L)
Chute Bar Width: .125"(3mm)
Chute Bar Amount:48
Chute Slope: 60
Dimensions: 9.5" x 8.5" x 13.5" (214 x 216 x343mm)
