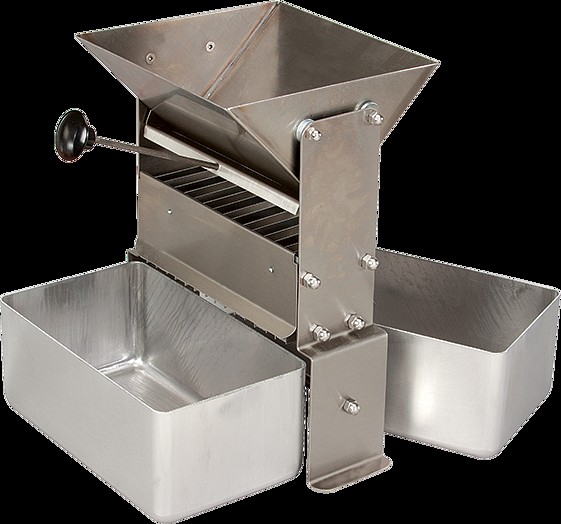

Divisor de Rifle de Precisión, 16 Canales de 0.5'' (13 mm) - H-3974

This Precision Riffle Splitter (Jones-type) is designed to reduce bulk material into a convenient representative sample for laboratory analysis. A hopper, with a manual control gate, receives the material to be split, then upon opening the gate, the material flows through a series of equally divided compartments of chutes, sending 50% of the sample to the left side pan and 50% of the sample to the right side pan. These Splitters consist of a stainless steel hopper with a manually actuated flow gate, stainless steel and anodized aluminum riffle bank, and stainless steel frame with support legs. Two (2) aluminum pans aresupplied.

Chutes: 16

Chute Width: .5"(13mm)

Hopper Size: 8.8" x 8.0" (224 x203mm)

Hopper Volume: 150 cu.in.

Pans: 2

Pan Capacity: 150
