The Smart DCP makes collecting soil data with your Dynamic Cone Penetrometer much easier by automatically counting blows and eliminating the need for tape, pencils, paper and at times a second operator. Our Smart DCP system is compliant with ASTM standard D6951/D6951M-09. Completed DCP tests can easily and accurately be graphed on the smart device in the field for quick analysis or sent via email to the investigation lead to review in theoffice.
The Smart DCP achieves thisby:
Automatically counting blows
Recording the change in depth with eachblow
Tracking the total depth of theprobe
Recording data on Apple iOS and Android smart devices viaWIFI
Eliminating the need for a ruler, pencil, andpaper
Transferring data via e-mail or USB from the smartdevice
The Smart DCP kit can be mounted to most handheld DCPs on the market and is easily operated by a single person. The Smart DCP kit is protected under U.S. Patents No. 7,617,718, No. 8,033,163, and No. 8,485,024. The investment cost associated with the Smart DCP is quickly realized through the reduction in time spent doing field tests, as well as the increased accuracy and ease of transferring data and creating reports. Users have repeatedly doubled the number of completed tests with increased accuracy when compared to the traditional manual data collection method of using a scale and paperlog.
In the field the Smart DCP records data on a smart App. The app and hardware combination makes your handheld DCP automated and will provide you and your client better field results and cost savings. The Smart DCP mobile app is free and available at the iOS App Store or Google Play store. The Smart DCP App immediately provides real time CBR%, depth change between blows, as well as total depth of penetration with each data point. Completed tests can be graphed on the smart device in the field for quick analysis or sent via email to the investigation lead to review in the office. A complimentary desktop application for Window's systems is also available. The desktop application can be used to quickly graph your field data and keep your data organized using the application and Windows Explorer. This program can be downloaded from the following
Link
or via electronictransmittal.
Smart DCP Features:
Touchscreen user interface (Androidonly)
Real-time display of testdata
Data transfer to computer via WIFI orUSB
Displays mm per blow; blow counts vs. delta distance per blow(mm)
Displays depth plot; depth (0-100cm) vs. number ofblows
Displays CBR plot; depth (0-100cm) vs.CBR%
Fast setup / fastdeployment
Uses wireless WIFI laser depthtransducer
ANDROID OS version 2.2 orhigher
WIFI-enabled ANDROID smart phone ortablet
SD card

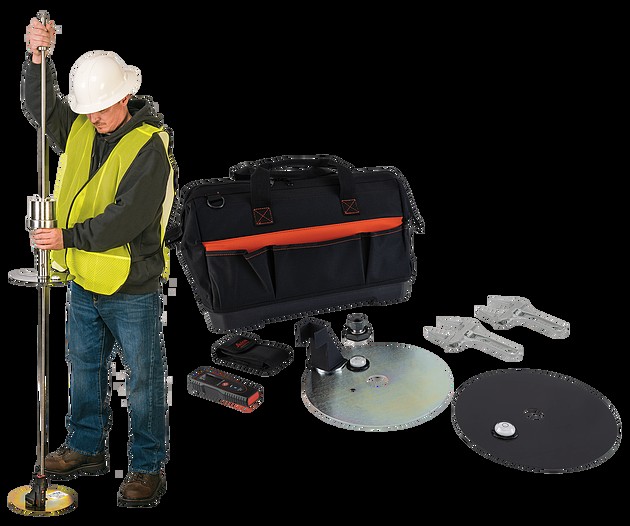

The H-4219.30 SmartDCPIncludes:
Carry bag
Leica Disto E7100i Laser Range Finder withbatteries
Baseplate with lasermount
Laser target
Stamped wrench and 1 combinationset
Does not include Dual-Mass Dynamic Cone Penetrometer
See H-4219T or
H-4219QC.
For additional information about SmartDCP,
clickhere
.
