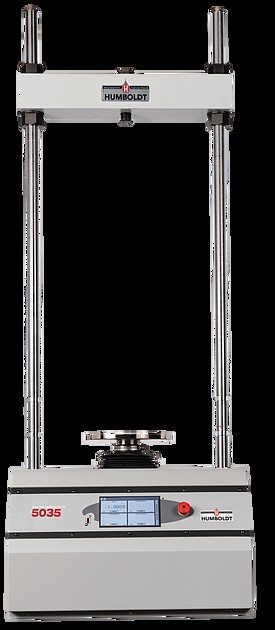

The New HM-5035.3F Master Loader Plus is ideal for just about any application from road construction to high-volume commercial and educational laboratories, which require higher loading capacities up to 15000 lbf (68KN), such as those involving larger sized samples of aggregate/asphalt/soil or mixtures. Its wider stance, and large vertical and horizontal clearances, allows it to accommodate largesamples.
Its heavy-duty design and precise stepper-motor control provide a stable platform for years of reliable service allowing the HM-5035.3F to perform any tests required up to its load capacity of 15000 lbf (68KN). Like all Elite Series load frames, the HM-5035.3F is built around Humboldt's integral, 4-channel data logger with touch-screen control, which allows the load frame to be used as a standalone device capable of full test control and data logging. It can also be controlled by a networked computer at any location with access to thenetwork.
Humboldt's HM-5035.3F Can Run The FollowingTests:
CBR
LBR
MARSHALL
TSR
SCB TEST AASHTOMETHOD
SCB TEST ASTMMETHOD
IDEAL-CT
IDEAL-RT
HVEEM AASHTO METHOD
HVEEM ASTM METHOD
HVEEM COLORADO METHOD
R-VALUE
EXUDATION
USER DEFINED TEST for: Unconfined (UC), Unconsolidated Undrained (UU), Consolidated Undrained (CU), Consolidated Drained(CD)
The HM-5035.3F provides four (4) integral and independent data acquisition channels, which can be utilized in stand-alone configurations or accessed through a LAN-networked computer using Humboldt's Next Software. The HM-5035.3F load frame is built with durable, high-quality components and features the use of a stepper motor, precision gears and gear box to ensure smooth and reliable operation, as well as preciseresults.
In stand-alone mode, the HM-5035.3F load frame provides a 7" (178mm) touch-screen controller, giving you finger-tip control of your testing processes, as well as providing real-time, visual views of your data in both tabular and graphic formats. This waterproof, touch screen provides colorful, at-a-glance monitoring of testing functions without the use of a computer. Operators can see all the data in several formats at the machine while the test is running. Data can then be viewed simultaneously or downloaded later to a computer in the lab, in the next room or at a different location, while also providing report generation capabilities from within Humboldt's NEXT software or our enhanced
test-specificmodules.
Touch-Screen Controller Provides:
4-channel data acquisition
Hi-res, 7", waterproof, touch-screen provides total control and real-time graphical display oftests
Machine /Test control and data acquisition via
touch-screen
Control up to 4 different tests at the sametime
Calibration of channels to load cells, transducers and other suitableinstruments
Real-time graphical chart and numerical display of tests via touch-screendisplay
Effective sampling rate of 50 readings persecond
Stores up to 1000 tests with 3000 points pertest
2 USB ports. One in front for data transfer and the rear port is for powering a wireless accesspoint.
When operated from a networked computer the NEXT software provides robust machine and test control, as well as report generation. It also provides the ability to control and monitor multiple machines from a singlecomputer.
Humboldt's NEXT SoftwareProvides:
Machine control, and data acquisition via networkedcomputer
Provides the ability to use Next Software's, advanced test-specificmodules
Real-time graphical chart and numerical display of tests via computerdisplay
Effective sampling rate of 50 readings persecond
Stores unlimited tests with up to 3000 points pertest.
Up to 255 individual tests can be run simultaneously from a singlePC
Advanced, test-specific modules are available, which provide all the calculations and graphs required per testingstandards
Provides advanced graphingcapabilities
Provides full-unit customization
Reports can also be exported to Excel or a CSV file, if desired, and, we can provide custom integration/export solutions for LIMS, EQuIS, gINT,etc.
