Constant Rate of Strain (CRS)Cell

Constant Rate of Strain (CRS)Cell

https://cotecno.opendrive.cl/web/image/product.template/435846/image_1920?unique=6b1f491

Descripción e commerce

Constant Rate of Strain (CRS)Cell. Detalles del producto The Constant Rate of Strain (CRS) test provides an efficient and a rapid method to determine properties (stress history, compressibility, hydraulic conductivity, and rate of consolidation) of a cohe. Labor Saving, Better definition of the compression curve, Quicker Test than conventional Incremental loading(IL). Codigo interno C-026999.

  • The strain rate is selected and monitored to produce a base excess pressure ratio according to ASTM D4186 by the HM-5475 or HM-5480 loadingframes
  • The strain rate is selected and monitored to produce a base excess pressure ratio according to ASTM D4186 by the HM
  • 5475 or HM

$ 1 1.0 CLP $ 1 IVA incluido

$ 1 IVA incluido

Not Available For Sale

  • Modelo sku

Esta combinación no existe.

Humboldt
Contáctenos
SKU: C-026999

Términos y condiciones
Garantía de devolución de 30 días
Envío: 2-3 días laborales

Compartir

Detalles del producto

The Constant Rate of Strain (CRS) test provides an efficient and a rapid method to determine properties (stress history, compressibility, hydraulic conductivity, and rate of consolidation) of a cohesive soil and possess many advantages over the incremental oedometer test. Labor Saving, Better definition of the compression curve, Quicker Test than conventional Incremental loading(IL).

The strain rate is selected and monitored to produce a base excess pressure ratio according to ASTM D4186 by the HM-5475 or HM-5480 loadingframes.

Specifications:

Sample size: up to 4"(100mm)

Maximum load: 3300lbf (15kN) Or 11000lbf(50KN)

Pressure: 150 psi(1MPa)

Includes:

HM-4170

: 2 - 200 psi (1400Kpa) Pressuretransducer

HM-4170B

: 2 - De-AiringBlock

Variantes disponibles

ModeloDiferencias

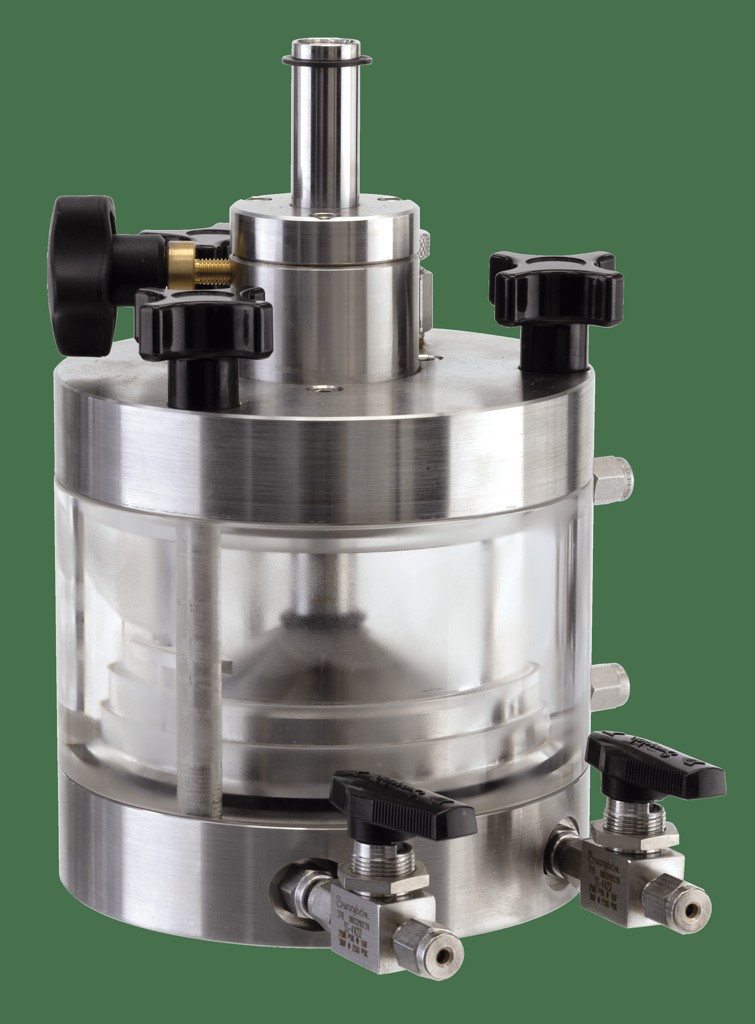

HM-1250.242 2.42" CRS Consolidation Cell
HM-1250.25 2.5" CRS Consolidation Cell
HM-1250.70 70mm CRS Consolidation Cell
