Máquina de pruebas universal servoneumática (15,5 kN) | HA-5101.3F

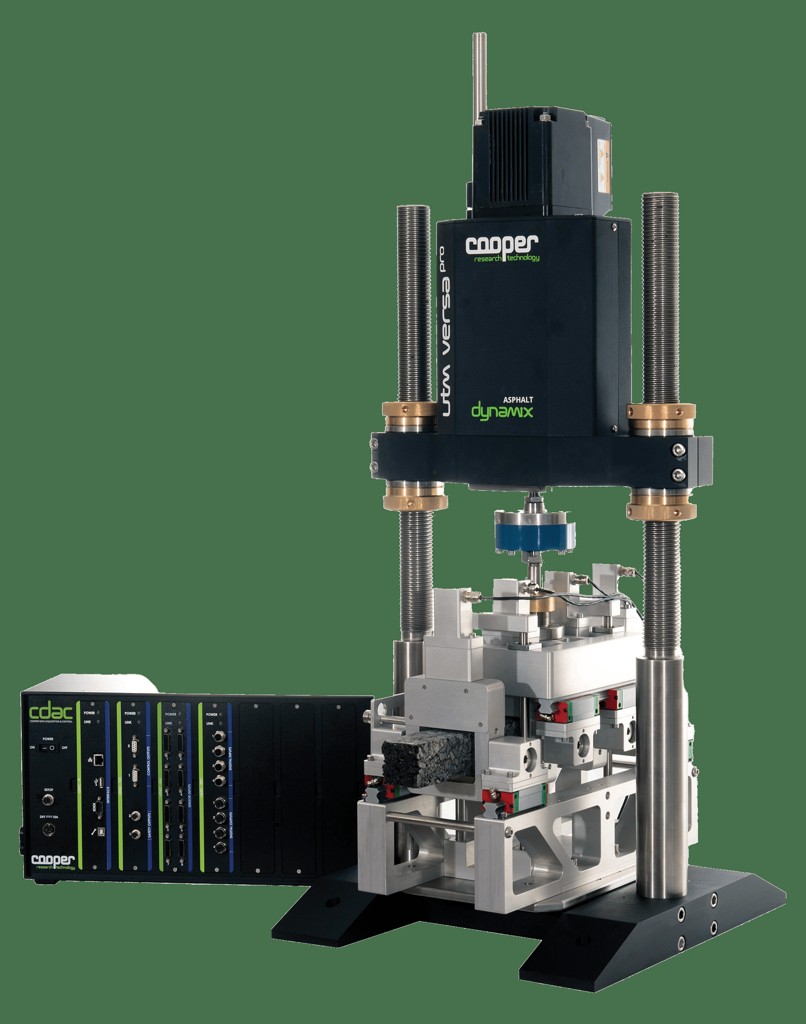

Until now Universal Test Machines for asphalt mix and unbound materials could be divided into three types pneumatic, hydraulic, and modified AMPTs. The Electromechanical UTM Versa Pro with Versa Motion Test System (VMTS), powered by eMotion Technology and controlled by the industry-leading cDAC data acquisition and control system, supported by dedicated DIMENSION asphalt testing software combines the best features of the three other machine types to create the perfect solution for testinglaboratories.

With the UTM VersaPro, you can easily and accurately perform both research level and standard asphalt mixture and unbound material tests at affordable prices and in an eco-friendlyenvironment.

Main Features

Electromechanical actuator EMT1 with 150mm stroke replaces pneumatic or hydraulic loading actuator ensures minimal subframe and specimen movement, more stable set up, better secured LVDTs and othertransducers

Test frequency range from static to100Hz

Compatible with our standard temperature- controlled cabinet with temperature range 25C to +70[1]

Easily interchangeable LVDTs and other transducers with uniform plug and playconnections

Standard and bespoke testing procedures static, dynamic, compressive,tensile

Ambient temperature-dependent. Testing temperature is subject to actuator and test fixtures temperature rangelimitations.

Main Applications

Superpave+ Performance Testing

Asphalt mix design

Quality Control

Recycled Materials Studies

Additive performance evaluation

Key Benefits

With an industry first 150mm stroke actuator you can perform variety of tests without crosshead adjustment. This is the perfect platform to be used with your existing test fixtures and temperaturecontrol.

Hydraulic performance for pneumaticprice

Plug & play adaptable and expandablesystem

Easily interchangeable cutting edge TEDs technology enables transducers to be swapped between channels and even cDAC boxes, as the calibration stays with the transducer. Connect any load cell, LVDT, extensometer, strain gauge or other types of transducer to cDAC. Record crack progression with software triggered photos for digital imageanalysis.

Includes:

Desktop PC

cDAC

DIMENSION software
