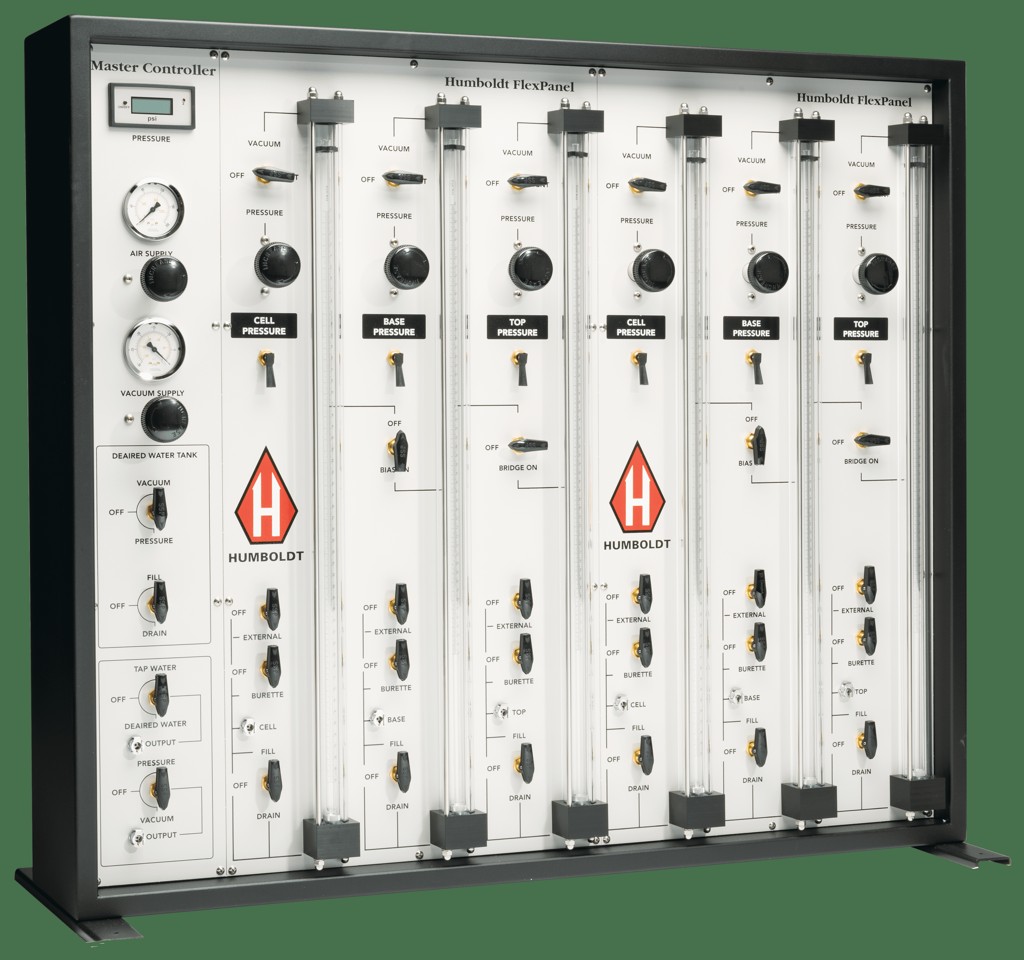

The HM-4160 2-cell, 6-burette control panel provides pressure controls and readouts for permeability and triaxial applications. It can control all the functions of two cells, however with the addition of Auxillary Panels it can control the operations of up to five (5)cells.
Controls include: a digital, readout pressure meter, a pressure supply gauge, a master pressure regulator, a vacuum supply gauge, a master vacuum regulator, de-aired water tank controls, tap and de-aired water supply outlets and pressure and vacuumoutlets.
FlexPanels can manually measure volume change or permeability in a triaxial test sample without the use of a volume change apparatus, a distinct benefit when compared to air/water bladdersystems.
Bias pressure regulator allows simultaneous control ofconfining
back pressures, while maintaining a constantdifferential
Longer Burette and 0.02ml graduation give more accurate results, better productivity, and fasterturnaround
Bridge feature delivers simultaneous control of base and top pressures by adjusting one pressure regulator simplifyingtesting
Quick-connect hookups for fast and reliable setup.
Master control panel houses digital pressure readout for the controlling pressure, inlet vacuum regulator & gauge, inlet pressure regulators & gauge, de-aired water tank controls, tap & de-aired water supply outlets, and pressure & vacuumoutlets
Comply with ASTM D5084; BS 1377 Part 61990.
Permeability testing measures the rate of discharge of water under laminar flow conditions through a unit cross-sectional area of a porous medium under a unit hydraulic gradient and standard (20C) temperature conditions. In permeability testing, soil is subjected to water under a known pressure, and the flow is measured. The coefficient of permeability (k), or simply permeability, expresses the ability of water to flow through the particular medium. The constant head test method is applicable to course granular soils such as sands and gravels. The falling head test method is applicable to fine grain soils. Either method may be used to test claysoils.
Humboldt FlexPanels
Humboldt FlexPanels provide a simple and highly efficient distribution system for providing air, water and de-aired water for use in permeability and triaxial testing applications. The FlexPanels simple, straight-forward configuration, with its integral burettes provides a condensed/compact design that takes up less counter space than competing systems with air/water bladders. The long, narrow burette design of Humboldt's FlexPanels provide faster test processing times when compared to larger, shorter burette systems, while providing the same volume. This is due to the reduced amount of meniscus formation in the narrower burettes, which allows the water level to drop faster, resulting in faster readings. In addition, the use of longer/narrower burettes and a scale graduation of 0.02ml, also provides an easier-to-read and more accuratescale.
FlexPanels also feature a bias regulator and bridge. The bias regulator maintains the differential pressure when confining and back pressures are increased. The bridge delivers simultaneous control of base and top pressures through the use of just one regulator. This feature minimizes operator time and reduces the margin of error in opening and adjusting regulators during a test. The Humboldt FlexPanel system is comprised of 5 separate panel configurations, which can be grouped together to accommodate from 1 to 6 cellsetups.
Fast and Easy Setup andOperation
Humboldt FlexPanels make setup fast and easy with clearly labeled ports and quick-connect hookups. Operation is just as easy with clearly labeled controls, large gauges and easy-to-read burette markings. All inlets and outlets utilize quick-connects to ensure fast, accurate setup to permeameter cells, as well as air, water and drain hook ups. Fittings, tubing and connectors are supplied with each unit. All FlexPanels are designed to handle air pressures up to 150 psi. For testing contaminated samples, Humboldt offers an optional Toxic Interface Unit, which prevents toxic fluids and vapors from entering the FlexPanel. See facingpage.
Humboldt FlexPanels Features:
Humboldt FlexPanels are constructed of lightweight aluminum for long, rust-free life. FlexPanels provide an accurate and easy-to-operate solution for controlling compressed air, water, de-aired water and vacuum without the need for air/water bladder interfaces to produce the pressures necessary for permeability and triaxial testing. FlexPanels utilize a set of three burettes to control cell, top cap and base pedestal pressures. This extremely versatile pressure system controls the pressure, water, de-airing tank and vacuum from a single panel. The three burettes allow for the control of the cell pressure and the back pressure for each cell. They can monitor volume change in the sample and can be used to measure the flow of water through the sample for permeability testing. FlexPanels can manually measure volume change or permeability in a triaxial test sample without the use of a volume change apparatus, a distinct benefit when compared to air/water bladdersystems.
