  3. Agitador de pantalla Gilson Porta-Screen (6 ranuras), 120 V 60 Hz | H-4297A
Lista Web CLP

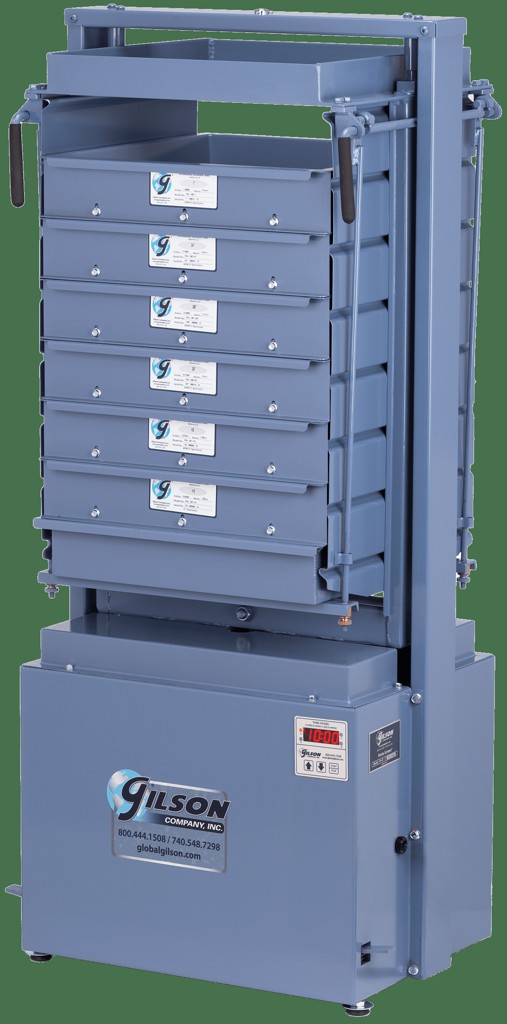

Agitador de pantalla Gilson Porta-Screen (6 ranuras), 120 V 60 Hz | H-4297A

Agitador de pantalla Gilson Porta-Screen (6 ranuras), 120 V 60 Hz | H-4297A

https://cotecno.opendrive.cl/web/image/product.template/435581/image_1920?unique=8e49a42

Descripción e commerce

Agitador de pantalla Gilson Porta-Screen (6 ranuras), 120 V 60 Hz | H-4297A. Detalles del producto The H-4295A and H-4297A Porta-Screen screen shakers have long been the accepted standard portable screens for field control of construction aggregates and quality control of asphalt and ready to mix. These units are also useful for size separations of many other materials. Capacity depends on test material, but may range up to 60 lb (27.3 kg) per test. Codigo interno C-027051.

  • Detalles del producto The H
  • 4295A and H
  • Screen screen shakers have long been the accepted standard portable screens for field control of construction aggregates and quality control of asphalt and ready to mix plants

$ 14.486.593 14486593.0 CLP $ 14.486.593 IVA incluido

$ 1 IVA incluido

Not Available For Sale

  • Modelo sku

Esta combinación no existe.

Humboldt
Contáctenos
SKU: C-027051

Términos y condiciones
Garantía de devolución de 30 días
Envío: 2-3 días laborales

Compartir

Detalles del producto

The H-4295A and H-4297A Porta-Screen screen shakers have long been the accepted standard portable screens for field control of construction aggregates and quality control of asphalt and ready to mix plants. These units are also useful for size separations of many other materials. Capacity depends on test material, but may range up to 60 lb (27.3 kg) per test. Vibration of both models is mechanically counterbalanced for smooth, stable operation with no requiredmounting.

Porta-Screen models are designed for performance durability, yet are light enough to be portable. Trays are quickly secured for operation by dual hand clamp levers. When levers are released, trays are individually removable for emptying, cleaning andweighing.

The vibrating assembly is held top and bottom on hardened guide pins. The 1/4hp motor, drive shaft, and connecting rod are synchronized with arotating

weight counterbalance system. All are enclosed by the enameled steel protective outercase.

The H-4295A model features slots for 7 trays and a pan while the H-4297A features slots for 5 trays and a pan. Order screen trays and dust pansseparately.

Variantes disponibles

ModeloDiferencias
H-4295A Gilson Porta-Screen� (8 slots), 120V 60Hz
H-4295A.5F Gilson Porta-Screen� (8 slots), 220V 50Hz
H-4297A Gilson Porta-Screen� (6 slots), 120V 60Hz
H-4297A.5F Gilson Porta-Screen� (6 slots), 220V 50Hz
