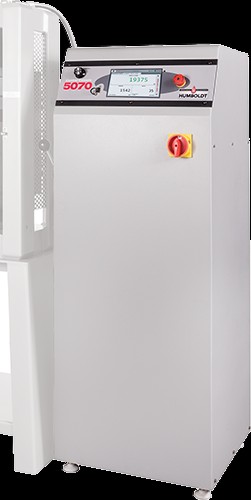

Humboldts HCM-5070 automatic controller is a console version of the HCM-5080 automatic controller and both share the same features. The HCM-5070 automatic controller is designed to make fast work of testing cylinders, cubes and beams with all of Humboldts compressionframes.
The HCM-5070 provides an easy-to-use automated testing work flow just choose the test standard you wish to run from the menu and the controller will quickly guide you through the setup. Choose the Fast Testing option and your compression frame will run tests as fast as you can load your cylinders, cubes or blocks while sequentially numbering each test automatically. Just click on the startbutton.
The HCM-5070 controller features a robust, reliable and cool-running 1hp pump, which works together with the controller for full operationalcontrol.
The HCM-5070s high-resolution, 7-inch, color, touchscreen provides accurate, precision frame operation, setup and calibration. Test setup is simple, just choose the ASTM standard you wish to use and the controller will quickly walk you through the setup procedure. Calibration is also easy with the HCM-5080, allowing you to use from 1 to 10 points to calibrate the machine in any increment you choose. It also provides an accurate motor-control knob, which lets you dial in precise loads forcalibration.
The controller provides two channel inputs for load, which allows for the control of two separate compression frames when using the HCM-HP4014 selector valve accessory. The HCM-5070 also provides two additional channel inputs for displacement, which provides an easy solution for determining Poissons ration and Youngs modulustesting.
The HCM-5070 also provides data acquisition capabilities of up to 1000 tests with 3000 points per test. This information can be exported via the front USB port and a flashdrive.
Provide two channel inputs for load, which allows for the control of two separate compressionframes
Provides two additional channel inputs for displacement, which allows performing extensometer and compressometertesting
7", high-resolution color touch-screen display with live readout, graphical and tabulardisplay
Easy test setup, just choose the standard you wish to test for and the controller will walk you through the completesetup
Rapid approach, initial load and testing load are automated during testcycles
Automatic control of testparameters
Provides data acquisition of one reading persecond
Integral storage within the controller of up to 1000 tests and 3000 points pertest
Simple, Fast and accurate machine calibration with accurate, motor-controlknob
Displays in Imperial or metricnumbers
Pre-programmed to run the following tests: ASTM C39, ASTM C78, ASTM C293, ASTM C469, ASTM C496, ASTM C1019, ASTM C109/C109M,
BSEN12390-3
