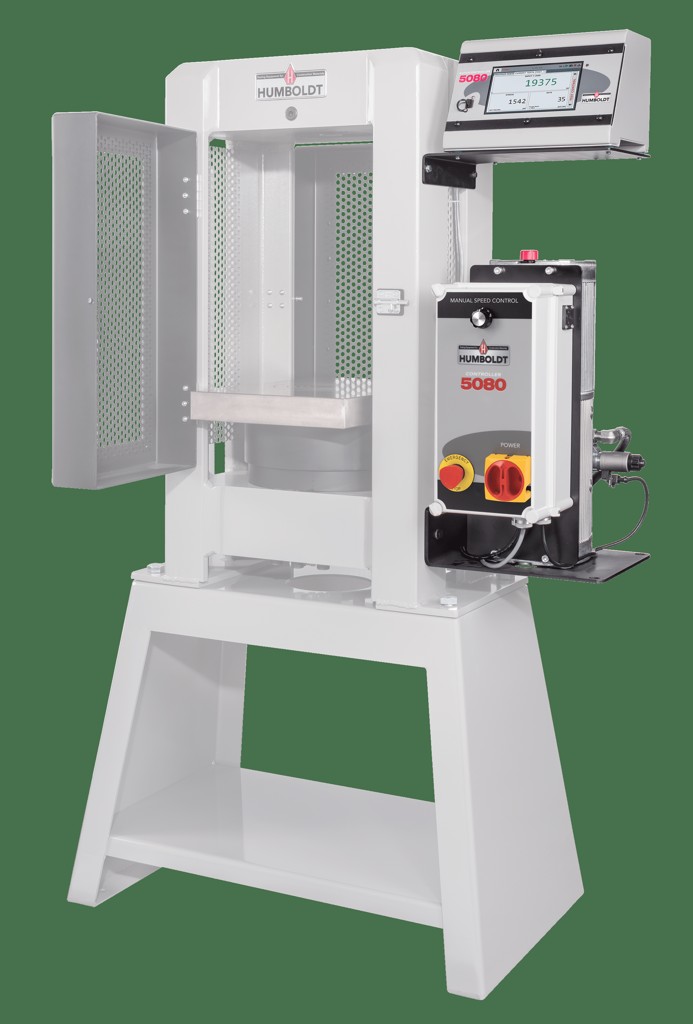

Humboldts Automatic Pump and Controller System is the most versatile, accurate and easy-to-use concrete compression machine controller availabletoday.
It is designed to make fast work of testing cylinders, cubes and beams with any of Humboldts concrete compression machines. It provides an easy-to-use automated testing workflow just choose the test standard you wish to use from the menu, and you will be quickly guided through the test setup and testing process. It is the ideal automatic system whether you are purchasing a new concrete compression frame or upgrading an existingframe.
The system features a robust, reliable and cool-running 1hp, multi-piston pump, which works together with the controller for full operational control. The controllers high-resolution, 7-inch, color, touchscreen provides accurate, precision machine operation, setup and calibration. Setup and operation are simple with step-by-stepprocedures.
Calibration is also easy with the controller, allowing from 1 to 10 points to calibrate the machine in any increment chosen. It also provides an accurate motor-control knob, which allows calibrators to dial in precise calibrationloads.
The system provides two channel inputs for load, which can be used to control two separate compression frames when using the HCM-HP4014 selector valve accessory. Two additional channels are provided for displacement, which provides an easy solution for determining Poissons ratio and Youngs modulustesting.
The controller also provides data acquisition capabilities of up to 1000 tests with 3000 points per test. This information can be exported via the front USB port and a flashdrive.
Features:
Provides 2 channel inputs for load, which allows for the control of two separate compressionframes
Provides 2 additional channel inputs for displacement, which allows performing extensometer and compressometertesting
7", high-resolution color touch-screen display with live readout, graphical and tabulardisplay
Easy test setup, just choose the standard you wish to test for and the controller will walk you through the completesetup
Rapid approach, initial load and testing load are automated during testcycles
Automatic control of testparameters
Provides data acquisition of one reading persecond
Integral storage within the controller of up to 1000 tests and 3000 points pertest
