Horno de mesa, 15,8 Cf, 230/60/1 fase | H-32300A.2F

Horno de mesa, 15,8 Cf, 230/60/1 fase | H-32300A.2F

https://cotecno.opendrive.cl/web/image/product.template/435492/image_1920?unique=3b5bc8b

Descripción e commerce

Horno de mesa, 15,8 Cf, 230/60/1 fase | H-32300A.2F. Detalles del producto These economical, large-capacity, bench ovens are designed to handle a wide variety of applications, which require a maximum temperature of 400F (204C) with a 0.5% control accuracy and 8F (4C) unifo. All models feature an analog thermocouple-actuated, temperature controller and a 1/3 HP motor with a 400 CFM blower. Codigo interno C-027116.

  • Detalles del producto These economical, large
  • capacity, bench ovens are designed to handle a wide variety of applications, which require a maximum temperature of 400F (204C) with a 0.5% control accuracy and 8F (4C) uniformity for efficient drying of largesamples
  • All models feature an analog thermocouple

$ 0 0.0 CLP $ 0 IVA incluido

$ 1 IVA incluido

Not Available For Sale

  • Modelo sku

Esta combinación no existe.

Humboldt
Contáctenos
SKU: C-027116

Términos y condiciones
Garantía de devolución de 30 días
Envío: 2-3 días laborales

Compartir

Detalles del producto

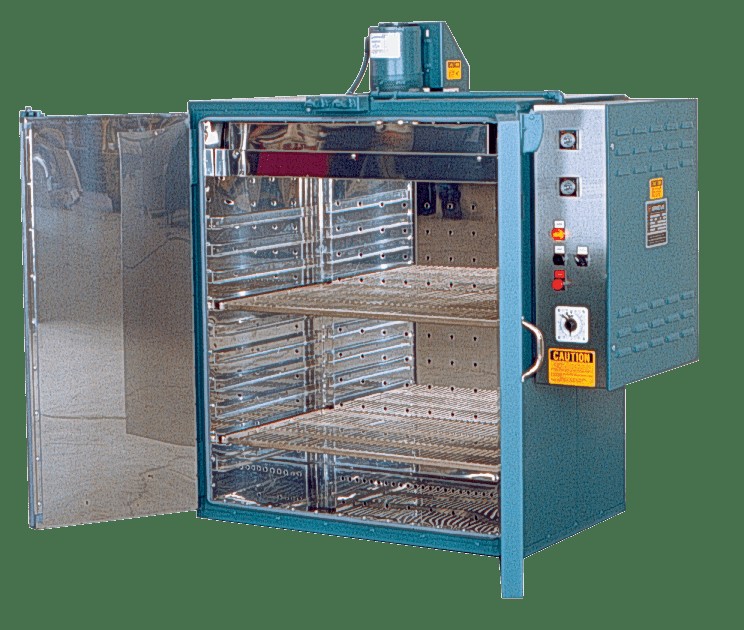

These economical, large-capacity, bench ovens are designed to handle a wide variety of applications, which require a maximum temperature of 400F (204C) with a 0.5% control accuracy and 8F (4C) uniformity for efficient drying of largesamples.

All models feature an analog thermocouple-actuated, temperature controller and a 1/3 HP motor with a 400 CFM blower. Ovens have 2" (51mm) 6 lb/cf industrial rockwool insulation and the built-in baffle helps prevent radiant heat and optimizes oven heating operation. All ovens have 304 stainless steel interiors, explosion venting latches and incoloy sheathed tubular heatingelements.

All ovens feature a UL-listed control panel and meet the requirements of National Fire Prevention Association Standard 86, Industrial Risk Insurers, Factory Mutual and OSHA standards. Motor starter and heating element contactors are electrically interlocked to shut off heaters if power to the blower is interrupted, and, permits operation of the blower without heat forcooling.

Ovens include two (2) 50lb (22.7kg) capacity nickel-plated wired shelves, which can be placed on any of the 10 support channels, which are located on 3" centers. Extra shelves can be ordered to accommodateneeds.

Alll Dimensions are W x D xH

Variantes disponibles

ModeloDiferencias
H-32300.8F Large Capacity Bench Oven; 400�F (204.4�C) Max. Temp, 15.8 (.447) Volume Cu. ft (m), 208V,60Hz 1ph., 36" x 21" x 36" (91
H-32300.8F.3 Large Capacity Bench Oven; 400�F (204.4�C) Max. Temp, 15.8 (.447) Volume Cu. ft (m), 208V,60Hz 3ph., 36" x 21" x 36" (91
H-32300.9F.3 Large Capacity Bench Oven; 400�F (204.4�C) Max. Temp, 15.8 (.447) Volume Cu. ft (m), 460V,60Hz 3ph., 36" x 21" x 36" (91
H-32300A.2F Large Capacity Bench Oven; 400�F (204.4�C) Max. Temp, 15.8 (.447) Volume Cu. ft (m), 230V,60Hz 1ph., 36" x 21" x 36" (91
H-32300A.2F.3 Large Capacity Bench Oven; 400�F (204.4�C) Max. Temp, 15.8 (.447) Volume Cu. ft (m), 230V,60Hz 3ph., 36" x 21" x 36" (91
H-32333.2F Bench Oven, Large Capacity; 400�F (204.4�C) Max. Temp, 27 (.764) Volume Cu. ft (m), 230V,60Hz 1ph., 36" x 36" x 36" (91
H-32333.2F.3 Bench Oven, Large Capacity; 400�F (204.4�C) Max. Temp, 27 (.764) Volume Cu. ft (m), 230V,60Hz 3ph., 36" x 36" x 36" (91
H-32333.8F Bench Oven, Large Capacity; 400�F (204.4�C) Max. Temp, 27 (.764) Volume Cu. ft (m), 208V, 60Hz 1ph., 36" x 36" x 36" (91
H-32333.8F.3 Bench Oven, Large Capacity; 400�F (204.4�C) Max. Temp, 27 (.764) Volume Cu. ft (m), 208V,60Hz 3ph., 36" x 36" x 36" (91
H-32333.9F.3 Bench Oven, Large Capacity; 400�F (204.4�C) Max. Temp, 27 (.764) Volume Cu. ft (m), 460V,60Hz 3ph., 36" x 36" x 36" (91
H-32343.2F Bench Oven, Large Capacity; 400�F (204.4�C) Max. Temp, 36 (1.01) Volume Cu. ft (m), 230V,60Hz 1ph., 36" x 48" x 36" (91
H-32343.2F.3 Bench Oven, Large Capacity; 400�F (204.4�C) Max. Temp, 36 (1.01) Volume Cu. ft (m), 230V,60Hz 3ph., 36" x 48" x 36" (91
H-32343.8F Bench Oven, Large Capacity; 400�F (204.4�C) Max. Temp, 36 (1.01) Volume Cu. ft (m), 208V,60Hz 1ph., 36" x 48" x 36" (91
H-32343.8F.3 Bench Oven, Large Capacity; 400�F (204.4�C) Max. Temp, 36 (1.01) Volume Cu. ft (m), 208V,60Hz 3ph., 36" x 48" x 36" (91
H-32343.9F.3 Bench Oven, Large Capacity; 400�F (204.4�C) Max. Temp, 36 (1.01) Volume Cu. ft (m), 460V,60Hz 3ph., 36" x 48" x 36" (91
