The UltraMist Curing Room Kit is designed to provide the ideal solution for maintaining concrete curing rooms within ASTM C511 specifications. The Ultramist Kit maintains the room temperature at 23C 2C and the relative humidity above 95% on average without the need for HVAC equipment. This is accomplished by the controlled use of hot and cold water misting of the room through the provided mist bar and nozzle assembly, which is designed to cover a 10 x 15 ft. (3 x 4.6m) room. The system is set up to mist the room every hour for 15 seconds, so the specimens remainmoist.
The UltraMist Curing Room Kit utilizes air atomization technology to produce a fine vapor fog to create the optimal environment for storing and curing concrete testing samples, such as cylinders. It provides the ideal solution for maintaining the high humidity levels and regulated temperatures required for curing rooms and ASTMC511.
The Ultramist Curing Room System uses the included controller to monitor settings via its LCD touchscreen. The current %RH and temperature are shown on the LCD touchscreen. A trending %RH and temperature chart is also provided. The %RH and temperature readings, which are logged every 5 minutes are stored on a USB flash drive. The controller allows for real?time temperature and percent relative humidity data logging to be seen on the control panel. In addition, data logging of the temperature and percent relative humidity is recorded on a USB drive in .csv fileformat.

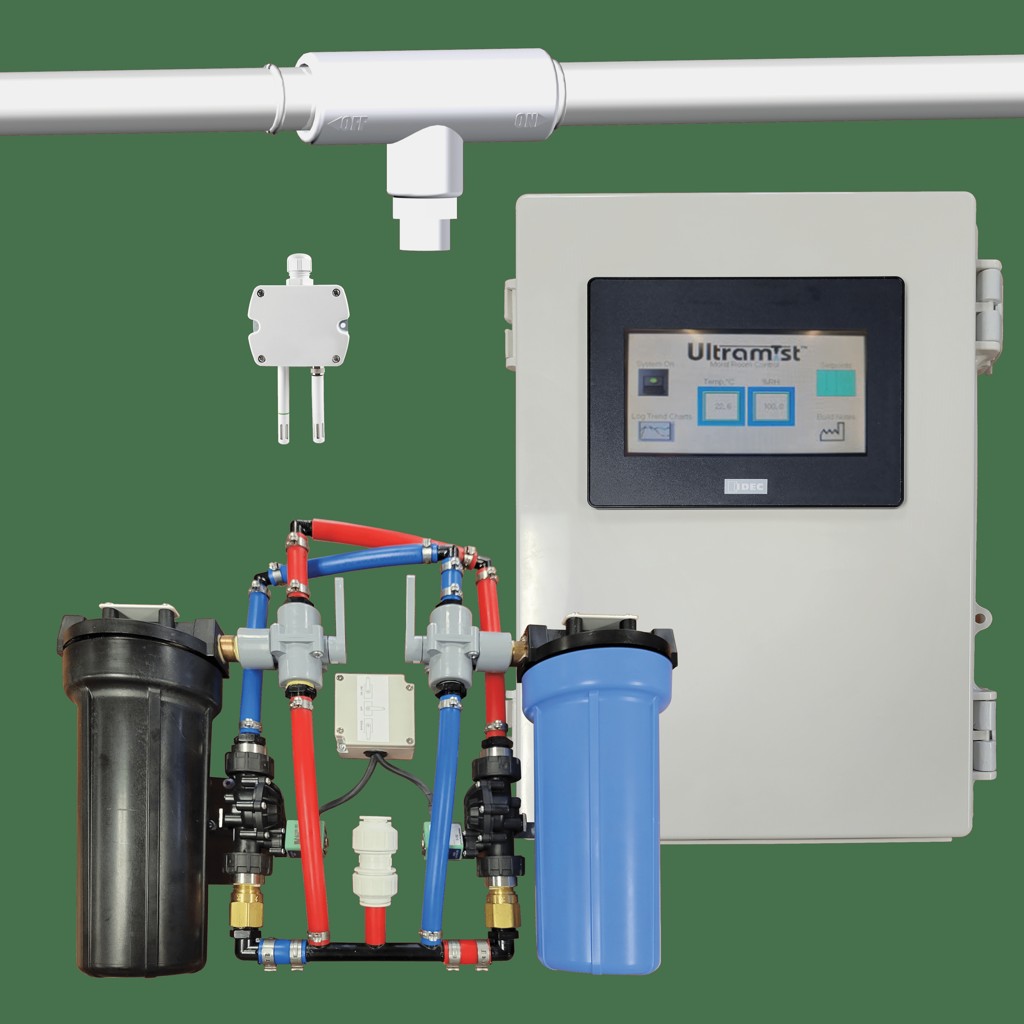

The basic Ultramist Kit includes the controller, valve/filter assembly board, Sensor and the misting grid for a 10' x 15' room. The kit is also available with the TriOBreeze sanitization option, which keeps your moist rooms microbiological load in check. TriOBreeze sanitization injects activated air (e.g., ozone) into the curing room, which cleans and sanitizes the system more effectively and less expensively than a chlorine-basedsystem.
NOTE: The system controls temperature by regulating hot and cold water valves. Your moist room will only get as cold as your cold water and as hot as yourwater.
The kit includes 52 ft. of UltraMist bar with necessary nozzles and fittings. The UltraMist spray bars come in 2 ft. lengths with union connectors for easy push-to-connectassembly.
FACILITY REQUIREMENTS:
110V 60HZ 20 amp outlet within 4 feet of the controlpanel
Dedicated 40?gallon water heater set to a minimum of125F
Hot and cold water plumbed near the controlpanel
