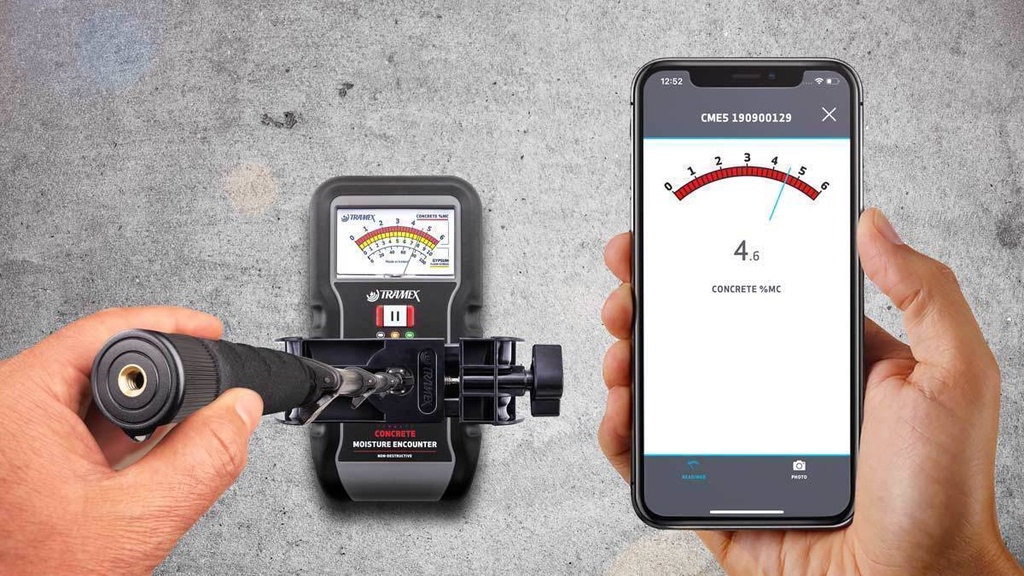

Concrete Moisture Encounter 5 - CME5 - Measuring Range:
| Depth of penetration: |
approx. ¾" (20 mm) |
| Moisture Content for Concrete: |
0 to 6% |
| Comparative for Gypsum floor screed: |
0 to 10 |
| Reference scale: |
0 to 100 |

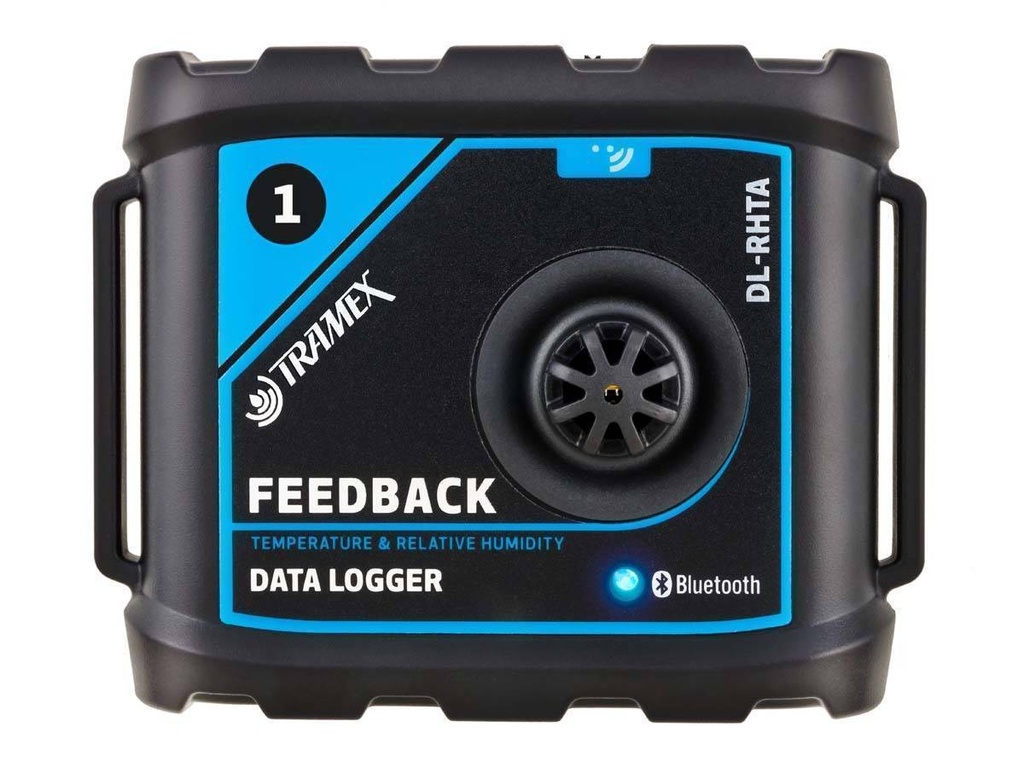

Feedback Datalogger DL-RHTA Measuring Range:
| Memory: |
100,000 data point entries (samples of Ambient RH and temperature; SurfaceTemperature) |
| Logging Rate: |
Logger interval adjustable between 10 minutes and 1 hour |
| Transmission Range: |
Up to 165ft (50m) line-of-sight |
| Bluetooth: |
BLE Bluetooth Low Energy 4.2 compliant |
Relative Humidity Specifications:
| Range: |
0 to 100%RH |
| Accuracy: |
±1.5%RH Range 0% to 80%RH ±2.0%RH Range 80% to 99%RH (@ 77ºF (25ºC)) |
| Resolution: |
0.1% over the complete range |
| Drift: |
<0.25%RH per year |
Temperature specifications:
| Range: |
-4ºF to 158ºF( -20°C to 70°C) |
| Accuracy: |
±0.1ºF Range -4ºF to 158ºF(±0.1 °C Range -20°C to 70°C) |
| Sensor Protection: |
PTFE Film protects sensor opening from water & dust |
| Drift: |
<0.04ºF (0.03ºC) per year |
Contact temperature probe (optional):
| Units: |
ºF (ºC) |
| Temperature Range: |
-20°F to +175°F (-30°C to +80°C) |
| Accuracy: |
±0.9ºF from 14ºF to 185ºF (±0.5°C from -10°C to +85°C) |
| Resolution: |
0.1% over the complete range |

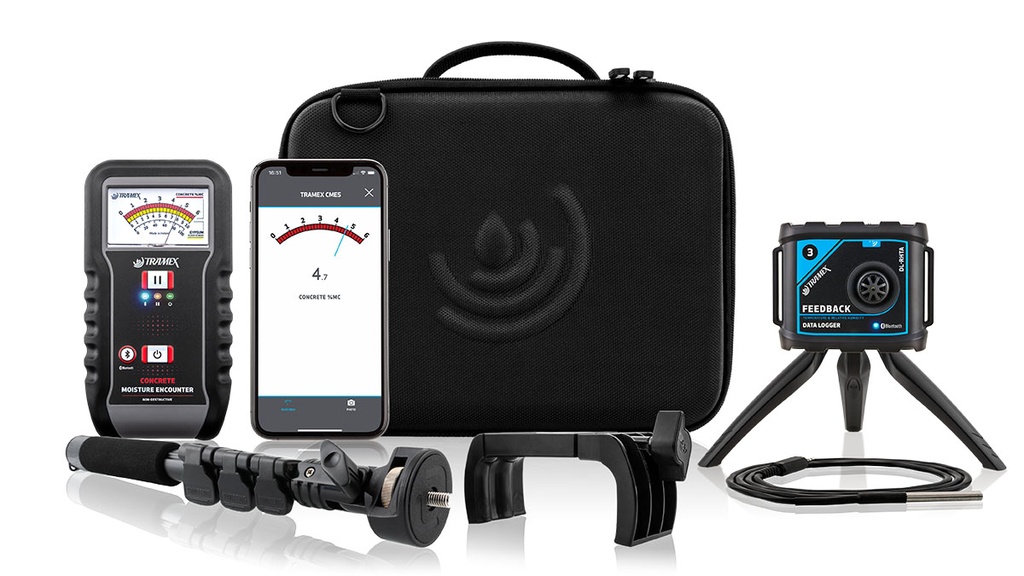

Specifications of Kit:
| Size: |
13.2” x 9.5” x 3.2” (33.5cm x 24cm x 8cm) |
| Weight: |
2.8 lbs (1.3kg) |
| Power: |
3 x AA batteries |
