Kit de Inspección Determinador de Concreto – CDIK

https://cotecno.opendrive.cl/web/image/product.template/577325/image_1920?unique=9d8c735

The Tramex Concrete Determinator Inspector Kit contains all the necessary tools to carry out the Tramex Complete Concrete Moisture Test System – 5 Point Test.

Requiere cotización

Esta combinación no existe.

Contáctenos
SKU: CDIK



Compartir

The concrete moisture test kit for performing the Tramex Complete Concrete Moisture Test System for instant and precise testing of both Surface and In-Body concrete Moisture Content in floors and slabs using a unified gravimetric-based testing method.

The Tramex CMEX5 digital moisture meter allows for non-destructive quantitative testing of concrete and comparative testing per ASTM F2659.

The reusable Concrete Moisture Determinator Probe used with the CMEX5 allows for in-depth moisture content probe testing within the concrete, down to an extendable depth of up to 4" (100mm), Diameter 3/4” (19mm).

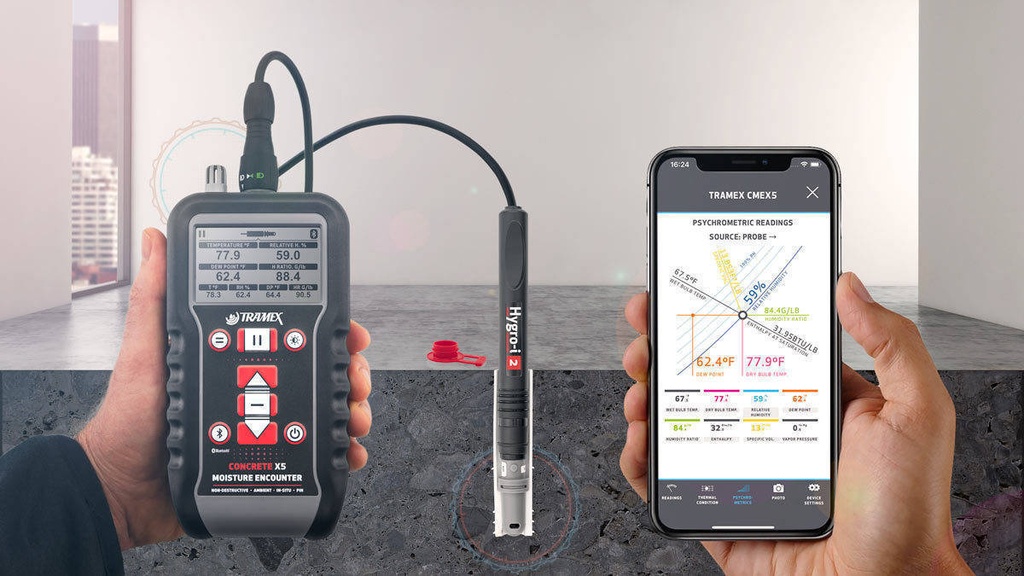

The CMEX5 also incorporates reusable plug-in Hygro-i2 ® RH probes for in-situ testing of concrete as per ASTM F2170.

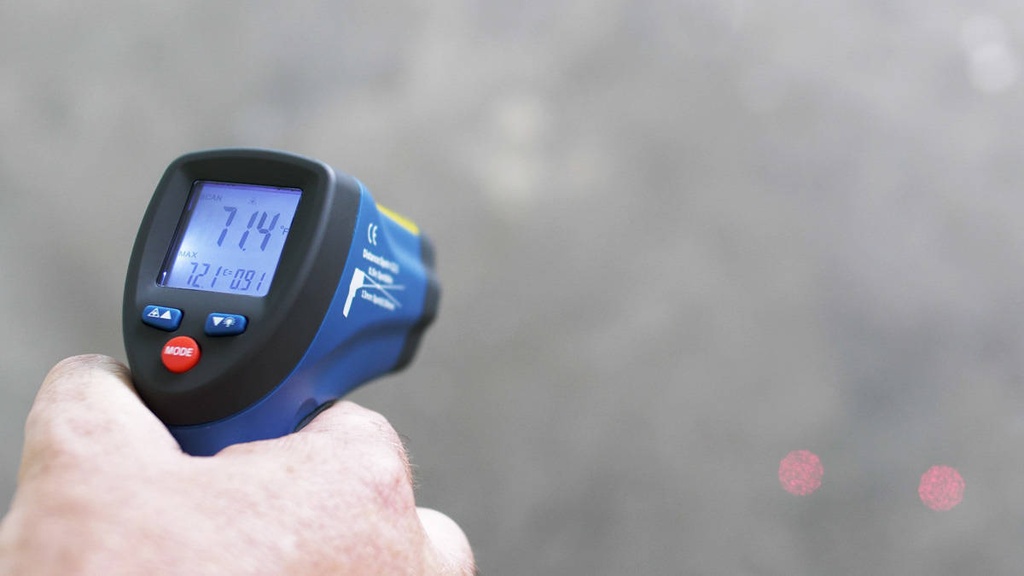

An infrared surface thermometer gives surface temperature and dew point conditions when used in conjunction with the CMEX5 hygrometer.

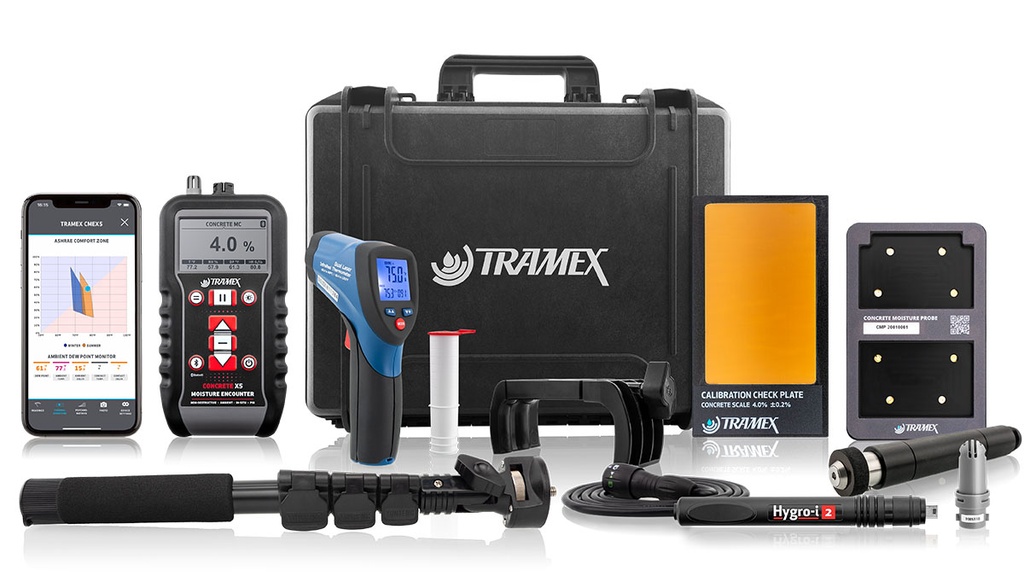

The Concrete Determinator Inspector Kit comes in a protective heavy-duty carrying case with die-cut foam lining. The Tramex Meters App allows you to GeoTag test results, create, save and share reports and charts, as well as see your meter screen on your phone when using the CMEX5 extension handle.



Popular complementary product: AP-F2170-B ASTM F2170 Accessory Pack for RH testing; including reusable Hygro-i2 probes, hole liners, and tools.

Contenido del kit

Especificaciones

CONCRETE MOISTURE ENCOUNTER X5  - CMEX5 - MEASURING RANGE:

Depth of penetration in concrete: approx.  ¾" (20mm)
Moisture content for Concrete: 0 → 6.9 %
Comparative for Gypsum floor screed: 0 → 12
CM Equiv Anhydrite/Concrete: 0→2.7 / 0→4.3
Reference scale: 0 → 100
Relative Humidity: 0 → 99%
(with optional Hygro-i2 ® probe): Humidity accuracy: 0% → 99%RH +/- 2% @ 25°C / 77°F
Moisture content for wood (with optional wood pin probes): 5 → 30 %



CONCRETE MOISTURE PROBE 'THE DETERMINATOR' - MEASURING RANGE:

Moisture Content for Concrete with Tramex CMEX5: 0 - 6.9%
Depth of Penetration: 1 1/4” probe depth for concrete between 2” to 4”
  2 1/4” probe depth for concrete between 4” to 6”
  3 1/4” probe depth for concrete between 6” to 9”
  4 1/4” probe depth for concrete between 9” to 11”



INFRARED THERMOMETER IRT2

Temperature range: -58ºF ~ 1202ºF (-50 to 650 ºC)
Distance to Spot ratio: D:S = 12:1
Display resolution: 0.1 ºF(0.1ºC)   <1000 1ºC   >1000
Accuracy for targets:

Assumes ambient operating temperature of  73 to 77ºF (23 to 25 ºC) -58ºF ~ 68ºF (-50 ~ 20ºC)

±4.5ºF (2.5ºC) 68ºF ~572ºF (20ºC ~300ºC)  ±1.0% ± 1.8ºF (1.0ºC) 572ºF ~ 1202ºF (300ºC ~650ºC) ±1.5%
Repeatability: -58~68ºF (-50~20ºC)  :  ± 2.3ºF (1.3ºC) 68~1202ºF (20~650ºC) : ±0.5% or ±0.9ºF (0.5ºC)
Response time: 150ms
Spectral response: 8~14um
Emissivity: Digitally adjustable from 0.10 to 1.0
Over range indication: LCD will show “----”
Polarity: Automatic (no indication for positive polarity); Minus (-) sign for negative polarity
Diode laser output: <1mW,Wavelength 630~670nm, Class 2 laser product
Operating temp.: 32 to 122ºF ( 0 to 50ºC)
Storage temp.: 14 to 140ºF (–10 to 60ºC)
Relative humidity: 10%~90%RH operating, <80%RH storage
Power supply: 9V battery, NEDA 1604A or IEC 6LR61, or equivalent
Safety: “ CE ” Comply with EMC


SPECIFICATIONS OF KIT:

Size: 17.1” x 14.2” x 5.5” (43.5cm x 36cm x 14cm)
Weight: 7.9 lbs (3.6 kg)
Power: 2 x AA batteries, 1 x 9 volt PP3 battery
