Concrete Determinator Tech Kit - CDTK

https://cotecno.opendrive.cl/web/image/product.template/594341/image_1920?unique=dafba1b

The Tramex Concrete Determinator Tech kit, for non-destructive surface measuring and in-situ moisture content testing in concrete floors and slabs.

Requiere cotización

Esta combinación no existe.

Contáctanos
SKU: CDTK



Compartir

A compact kit for instant and precise testing of both Surface and In-Body concrete Moisture Content in floors and slabs using a unified gravimetric-based testing method.

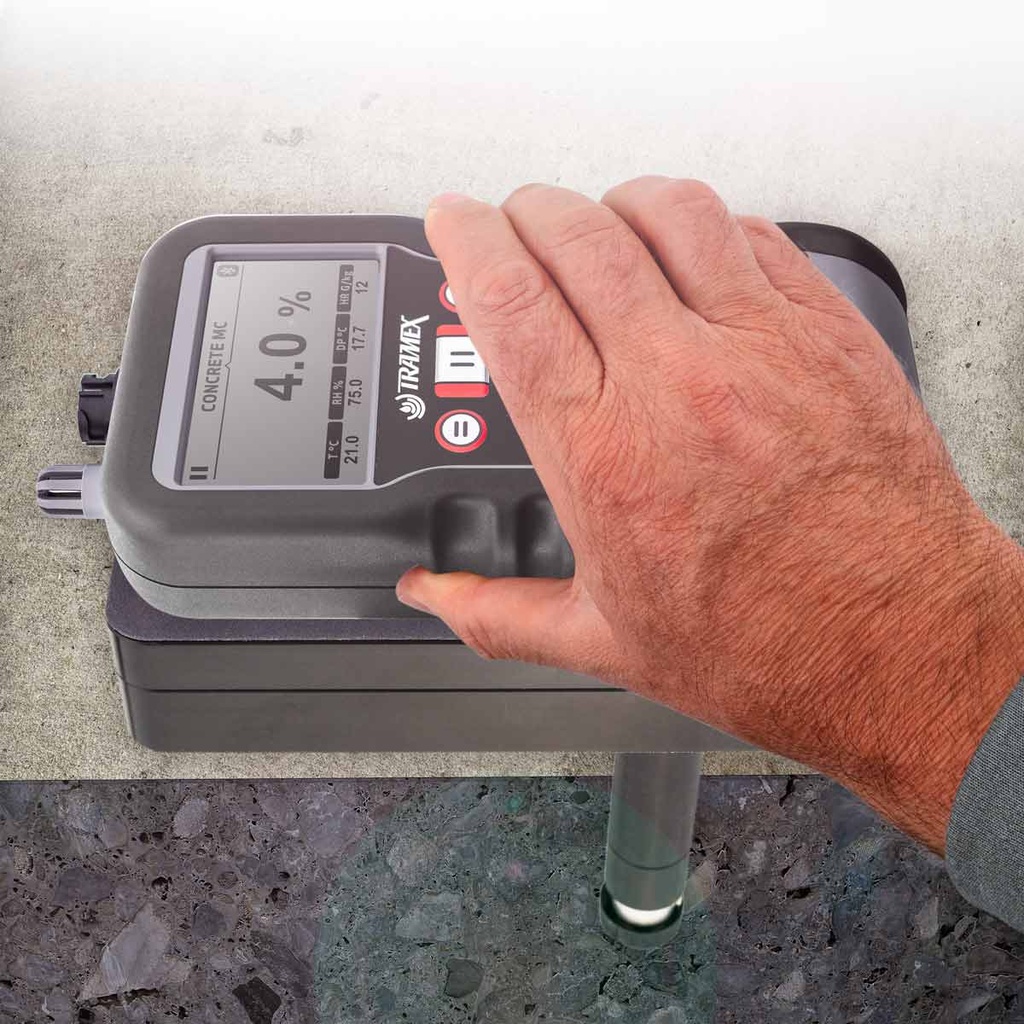

The Tramex CMEX5 digital concrete moisture meter allows for non-destructive quantitative testing of concrete and comparative testing per ASTM F2659. The reusable Concrete Moisture Determinator Probe used with the CMEX5 allows for in-depth moisture content probe testing within the concrete, down to an extendable depth of up to 4" (100mm), Diameter 3/4” (19mm).

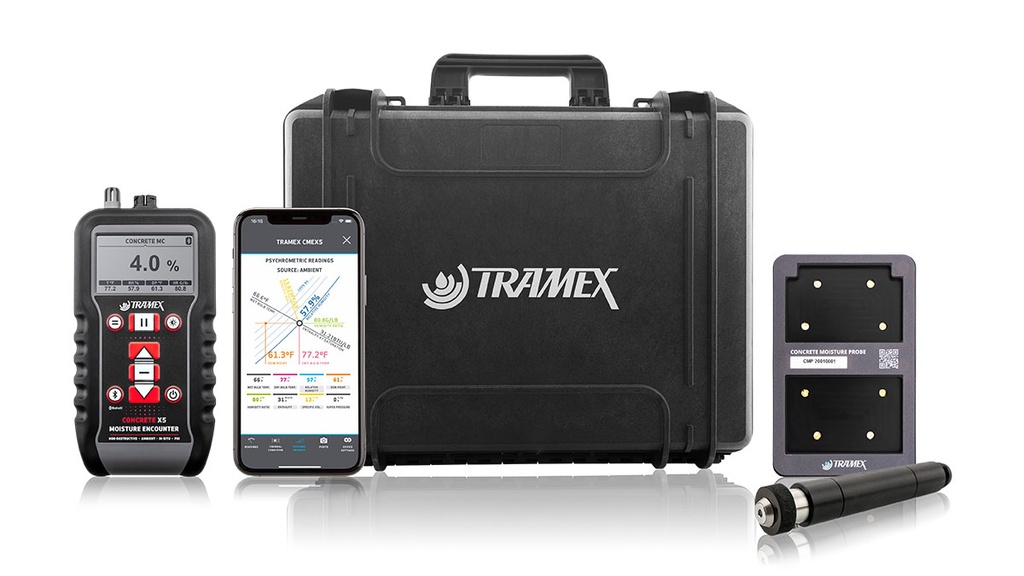

The Concrete Determinator Tech Kit comes in a protective heavy-duty carrying case with die-cut foam lining. The Tramex Meters App allows you to GeoTag test results, create, save and share reports and charts.

Contenido del kit

Especificaciones

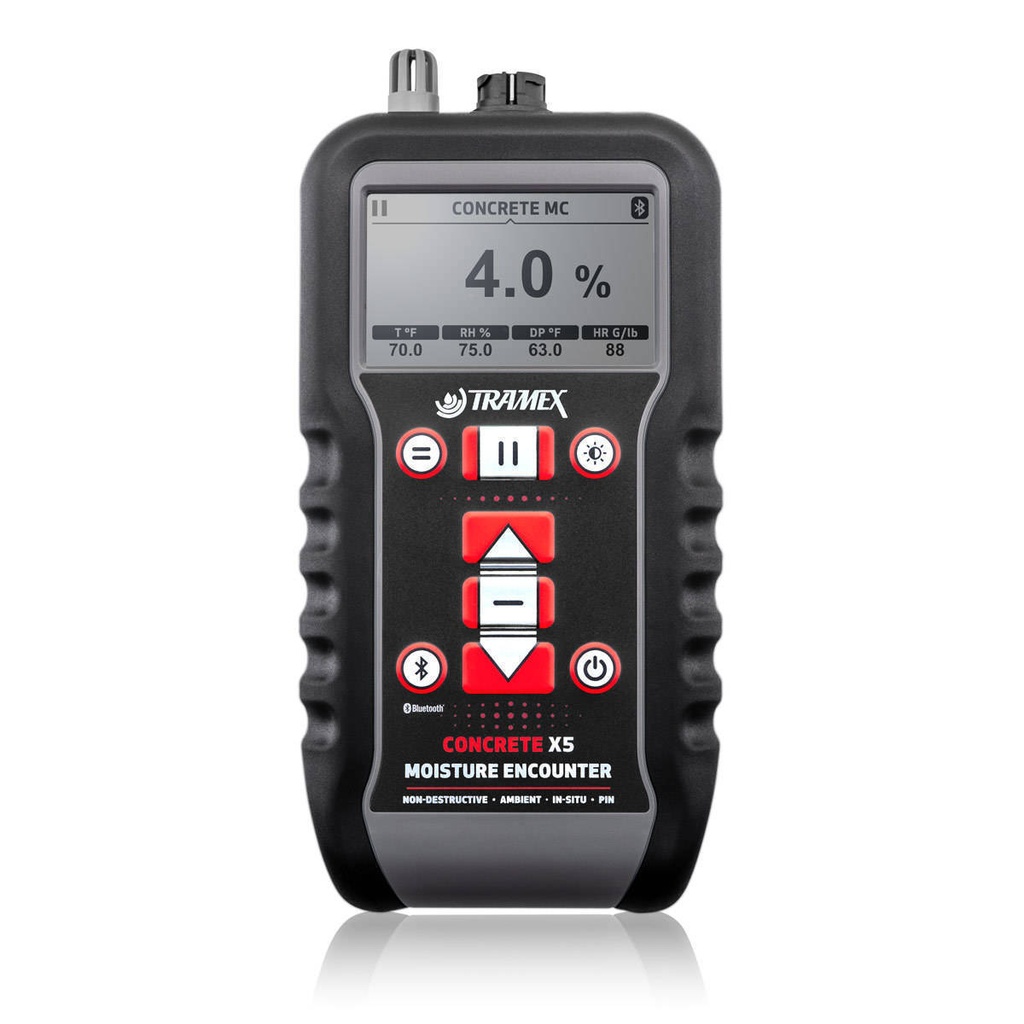

CONCRETE MOISTURE ENCOUNTER X5  - CMEX5 - MEASURING RANGE:

Depth of penetration in concrete: approx.  ¾" (20mm)
Moisture content for Concrete: 0 → 6.9 %
Comparative for Gypsum floor screed: 0 → 12
CM Equiv Anhydrite/Concrete: 0→2.7 / 0→4.3
Reference scale: 0 → 100
Relative Humidity: 0 → 99%
(with optional Hygro-i2 ® probe): Humidity accuracy: 0% → 99%RH +/- 2% @ 25°C / 77°F
Moisture content for wood (with optional wood pin probes): 5 → 30 %

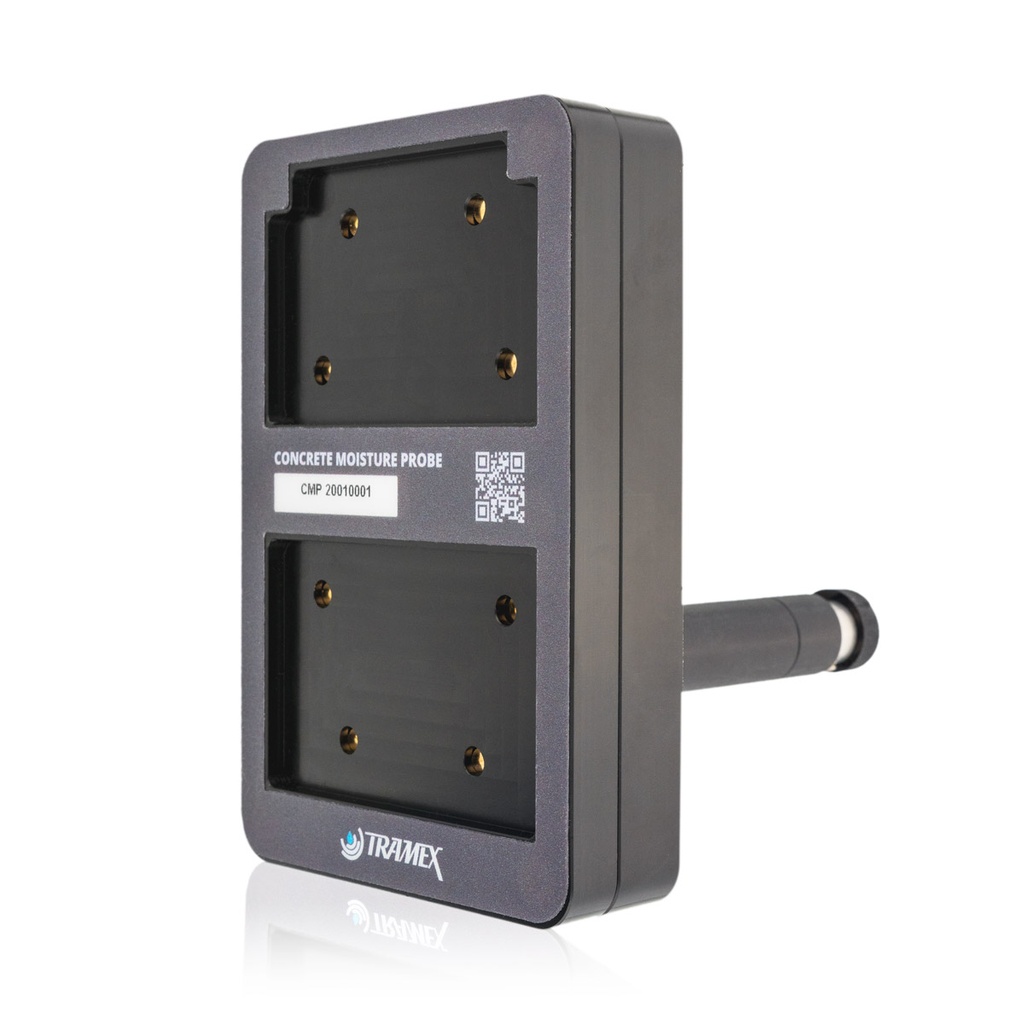

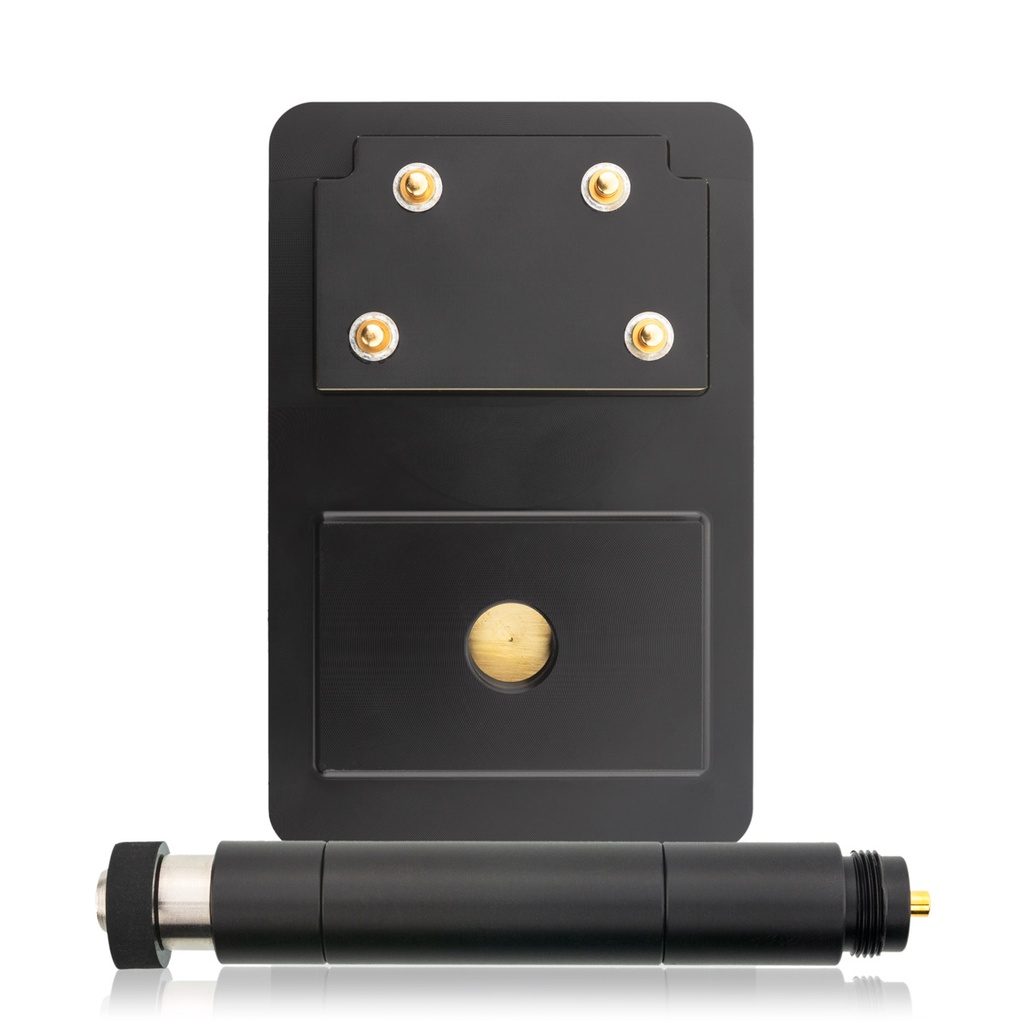

CONCRETE MOISTURE PROBE 'THE DETERMINATOR' - MEASURING RANGE:

Moisture Content for Concrete with Tramex CMEX5: 0 - 6.9%
Depth of Penetration: 1 1/4” probe depth for concrete between 2” to 4”
  2 1/4” probe depth for concrete between 4” to 6”
  3 1/4” probe depth for concrete between 6” to 9”
  4 1/4” probe depth for concrete between 9” to 11”



SPECIFICATIONS OF KIT:

Size: 17.1” x 14.2” x 5.5” (43.5cm x 36cm x 14cm)
Weight: 6.5 lbs (2.95kg)
Power: 2 x AA batteries
