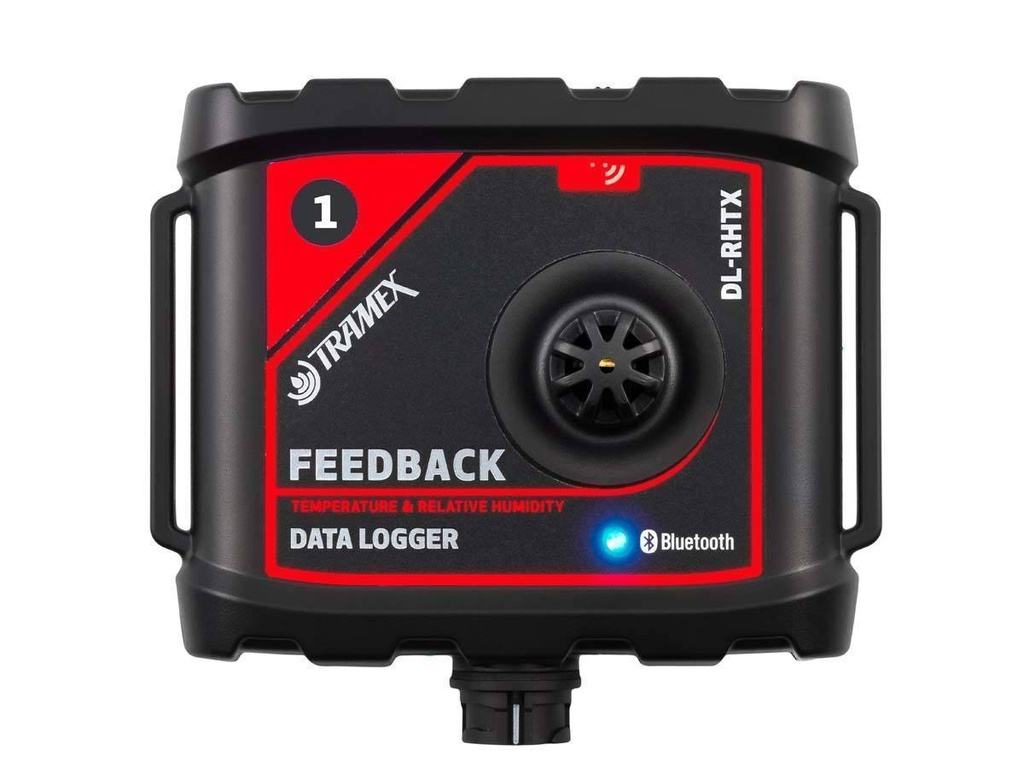

Feedback Datalogger - DL RHTX

https://cotecno.opendrive.cl/web/image/product.template/594411/image_1920?unique=ab8a564

The Tramex Feedback DataLogger DL-RHTX and App log Ambient relative humidity, temperature, dew point and grains/pound, transmitted via Bluetooth to a compatible iOS or Android mobile device and features a connection for an external RH probe.

$ 0 0.0 CLP $ 0 IVA incluido

$ 1 IVA incluido

Requiere cotización

Esta combinación no existe.

Contáctenos
SKU: DLRHTX



Compartir

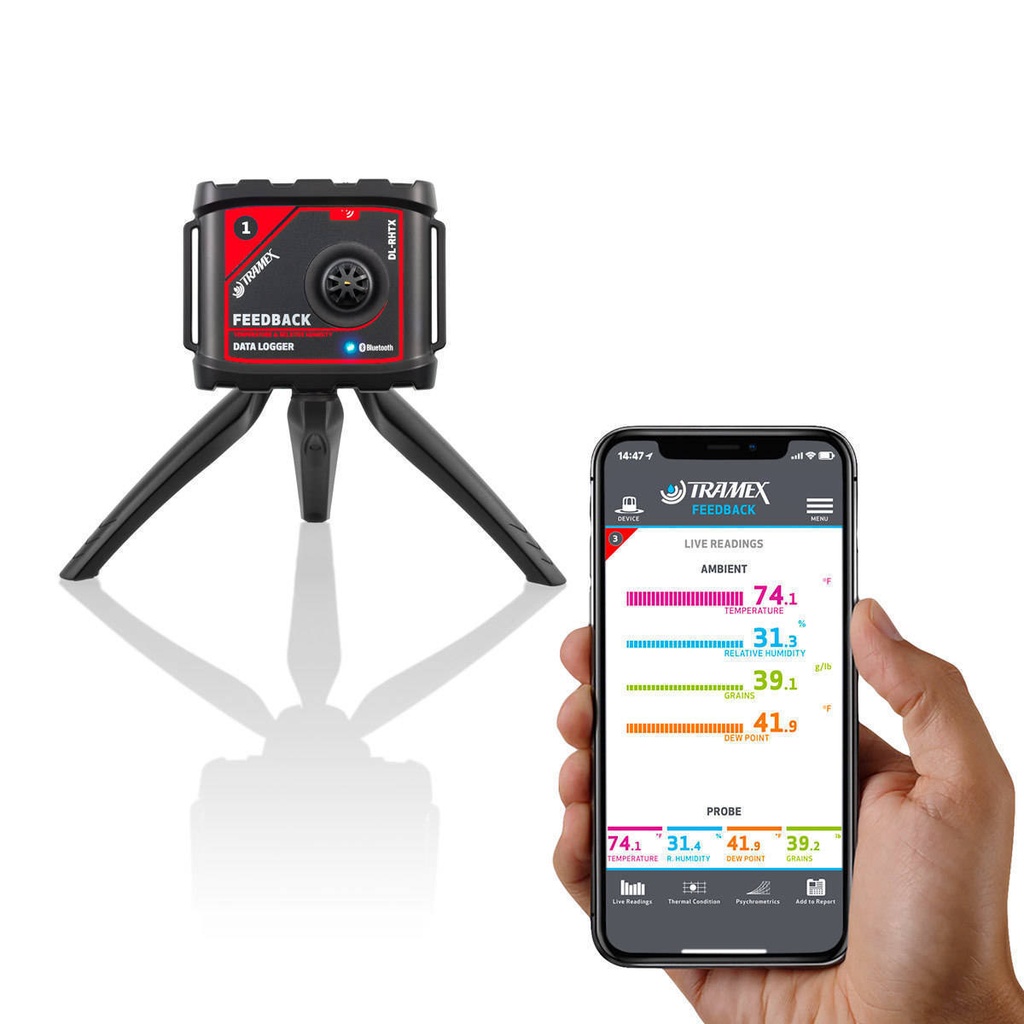

The Feedback DataLogger and Tramex Meters App log up to 100,000 data point entries for relative humidity, temperature, dew point and grains per pound, transmitted wirelessly via Bluetooth BLE technology to your mobile device. On the App you can visualise Live Readings, Thermal Conditions and Psychrometric Charts as well as creating and exporting spreadsheets, charts and reports. The Tramex Feedback DataLogger requires the Tramex Meters App and a compatible iOS or Android mobile device. Using the optional plug-in Hygro-i2 RH probes, the DL-RHTX will measure Equilibrium Relative Humidity, Temperature, Dew Point and Humidity Ratio in structural materials. A structural material such as a concrete slab can be tested using the in-situ method or RH Hood methods (International Standards: ASTM F2170 & BS 8201, 8203, 5325). Relative Humidity Probes can also be used for ambient RH measurements within air spaces.



Características

  • Bluetooth BLE enabled for use with mobile devices.
  • Up to 100,000 data point entries. Instant set up and start modes.
  • Precise Ambient Relative Humidity and Temperature logging.
  • Used to perform BS 8201, 8203, 5325 and ASTM F2170.
  • Intuitive and instructive App interface.
  • Adjustable Interactive chart, spreadsheet, report and easy export functions.
  • Connectivity up to 165ft  (50m) for highly accessible data downloads.

Especificaciones

With built-in Ambient RH + Temperature sensor; Plug-in Contact Temp Probe (optional) providing the best available accuracy tolerances; optional plug-in Relative Humidity Probes or Hygro-i2 RH probes for measuring  Equilibrium Relative Humidity, Temperature, Dew Point and Humidity Ratio in structural materials. A structural material such as a concrete slab can be tested using the in-situ method or RH Hood methods (International Standards: ASTM F2170 & BS 8201, 8203, 5325).

Size: 3.94” x 3.54” x 1.38” (100mm x 90mm x35mm)
Weight: 3.53oz (100g)
Construction: ABS enclosure
Power: 1 x AA type battery 1.5 Volt
Memory: 100,000 data point entries (samples of Ambient RH and temperature; Surface Temperature)
Logging Rate: Logger interval adjustable between 10 minutes and 1 hour
Transmission Range: Up to 165ft (50m) line-of-sight
Bluetooth: BLE Bluetooth Low Energy 4.2 compliant

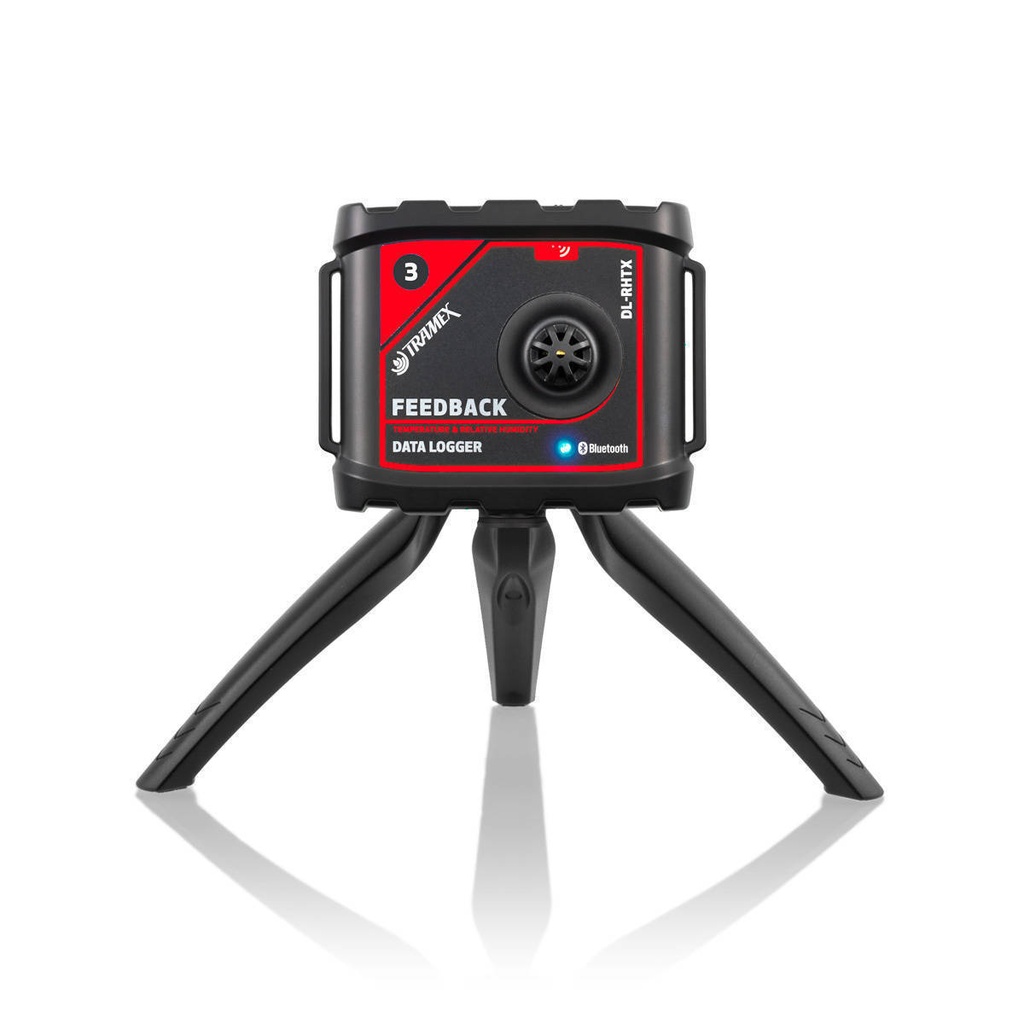

Included: Wall Mounting and Tripod Stand



Supported measurements:

  • Ambient Relative Humidity, Temperature, Dew point, Grains per pound.
  • Psychrometric chart showing Relative Humidity, Specific Volume, Wet Bulb Temperature, Dry Bulb Temperature, Enthalpy, Humidity Ratio, Dew Point.
  • Contact Temperature, Estimated contact RH, Ambient Dew Point, Contact Delta Temperature (with optional Contact Temperature Probe)



Humidity specifications:

Range: 0 to 100%RH
Accuracy: ±1.5%RH Range 0% to 80%RH ±2.0%RH Range 80% to 99%RH (@ 77ºF (25ºC))
Resolution: 0.1% over the complete range
Drift: <0.25%RH per year



Temperature specifications:

Range: -4ºF to 158ºF( -20°C to 70°C)
Accuracy: ±0.1ºF Range -4ºF to 158ºF(±0.1 °C Range -20°C to 70°C)
Sensor Protection: PTFE Film protects sensor opening from water & dust Drift: <0.04ºF (0.03ºC) per year



Contact temperature probe (optional):

Units: ºF (ºC)
Temperature Range: -20°F to +175°F (-30°C to +80°C)
Accuracy:  ±0.9ºF from 14ºF to 185ºF (±0.5°C from -10°C to +85°C)
Resolution: 0.1% over the complete range



Battery:

Power supply: 1 x AA type battery 1.5 Volt
Battery life: Over 1 year based on logging intervals of 5mins, using an alkaline battery with a nominal voltage of 1.5V as supplied.
