Feedback Datalogger EZ Kit - FBZK

https://cotecno.opendrive.cl/web/image/product.template/594323/image_1920?unique=74c7e37

The Tramex Feedback Datalogger EZ Kit, for continuous ambient & in-situ data monitoring in buildings and building materials such as concrete as per ASTM F2170.

$ 0 0.0 CLP $ 0 IVA incluido

$ 1 IVA incluido

Requiere cotización

Esta combinación no existe.

Contáctenos
SKU: FBZK



Compartir

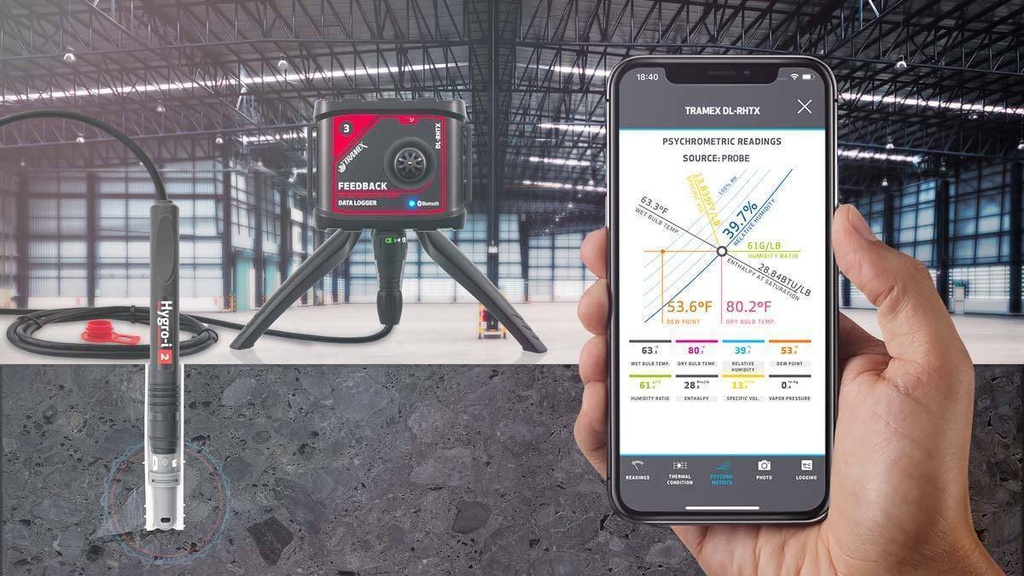

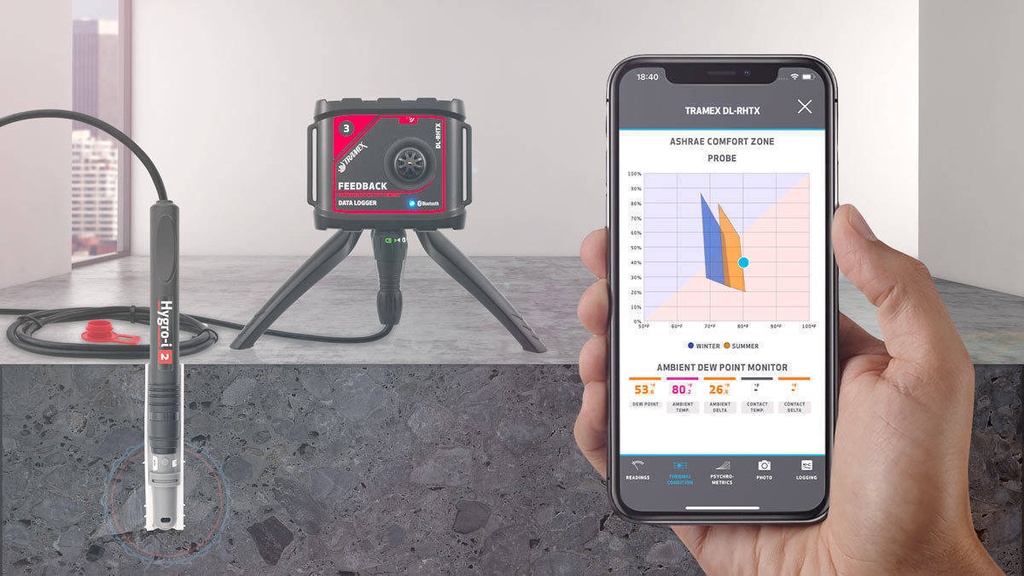

The Tramex FBZK is a compact kit designed for professionals who depend on accurate, reliable live & logged readings of relative humidity, temperature, dew point and humidity ratio. Monitor both ambient and in-situ conditions in buildings and building materials. The kit includes 5 reusable Tramex Hygro-i2 RH probes for testing RH in concrete as per ASTM F2170. The Tramex Feedback DataLogger and Tramex Meters App log up to 100,000 data point entries, transmitted wirelessly via Bluetooth BLE technology to your mobile device. On the App you can visualize Live Readings, Thermal Conditions and Psychrometric Charts, as well as creating and exporting spreadsheets, charts and reports. The Tramex Feedback DataLogger requires the Tramex Meters App and a compatible iOS or Android mobile device. The kit comes in a protective Tramex Easy-travel case.

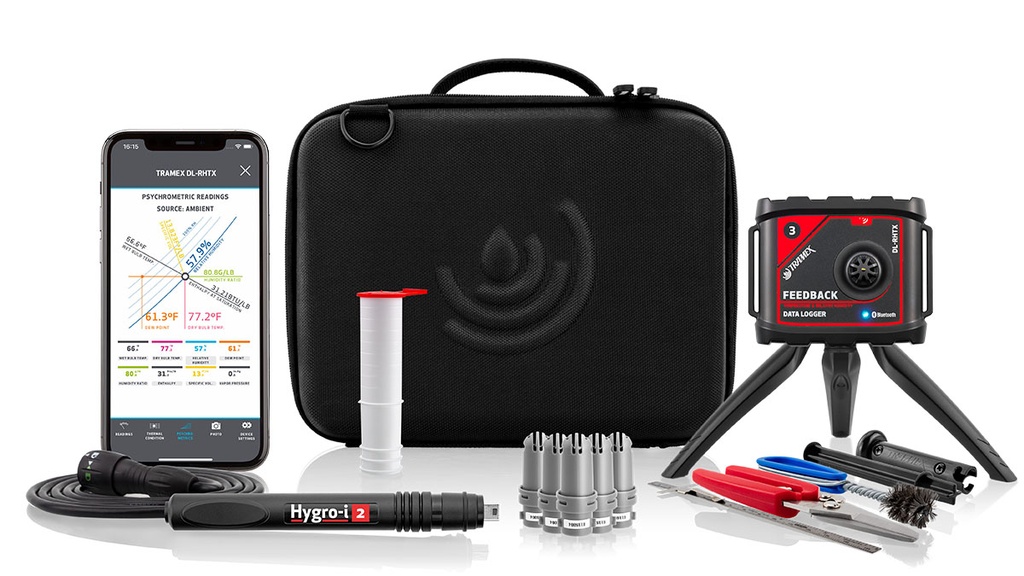

Contenido del kit

  1. DL-RHTX Data Logger
  2. 5 x Hygro-i2 probes
  3. Wall mounting
  4. Tripod Stand



Características

  • Bluetooth BLE enabled for use with mobile devices.
  • Up to 100,000 data point entries possible.
  • Instant set up and start modes.
  • Used to perform ASTM F2170.
  • Ambient and In-situ RH and temperature logging Intuitive and instructive APP interface.
  • Adjustable interactive chart, spreadsheet, report and easy-export functions.
  • Connectivity up to 165ft (50 meters) for highly accessible data downloads.

Especificaciones

Feedback Datalogger DL-RHTX Measuring Range:

Memory: 100,000 data point entries (samples of Ambient RH and temperature; SurfaceTemperature)
Logging Rate: Logger interval adjustable between 10 minutes and 1 hour
Transmission Range: Up to 165ft (50m) line-of-sight
Bluetooth: BLE Bluetooth Low Energy 4.2 compliant



Relative Humidity Sensor Specifications:

Range: 0 to 100%RH
Accuracy: ±1.5%RH Range 0% to 80%RH ±2.0%RH Range 80% to 99%RH (@ 77ºF (25ºC))
Resolution: 0.1% over the complete range
Drift: <0.25%RH per year



Temperature Sensor Specifications:

Range: -4ºF to 158ºF( -20°C to 70°C)
Accuracy: ±0.1ºF Range -4ºF to 158ºF(±0.1 °C Range -20°C to 70°C)
Sensor Protection: PTFE Film protects sensor opening from water & dust Drift: <0.04ºF (0.03ºC) per year
Drift: <0.04ºF (0.03ºC) per year



Specifications of Kit:

Size: 13.8" x 9.1" x 3.5" (350mm x 230mm x 90mm
Weight: 28oz (800g)
Power:  1 x AA type battery 1.5 Volt
