FLOORING INSTALLER TECH KIT - FTK

https://cotecno.opendrive.cl/web/image/product.template/594352/image_1920?unique=ec270c1

The Tramex Flooring Installer Tech Kit, for non-destructive testing of concrete floors and slabs and monitoring ambient conditions.

$ 0 0.0 CLP $ 0 IVA incluido

$ 1 IVA incluido

Requiere cotización

Esta combinación no existe.

Contáctenos
SKU: FTK



Compartir

The Tramex FTK is a compact concrete moisture test kit for instant, non-destructive, quantitative moisture content testing of concrete floors and ambient conditions and is the ideal non-destructive test kit for monitoring the most crucial information at the time of installation.

The Tramex CME5 moisture meter allows for non-destructive quantitative testing of concrete moisture content using Gravimetric testing as a baseline and comparative testing per ASTM F2659.

The Tramex Ambient Feedback Datalogger is used for testing, monitoring and time logging relative humidity, temperature and dew point in the environment. The Tramex Contact Temperature Probe provides temperature readings of the floor surface.

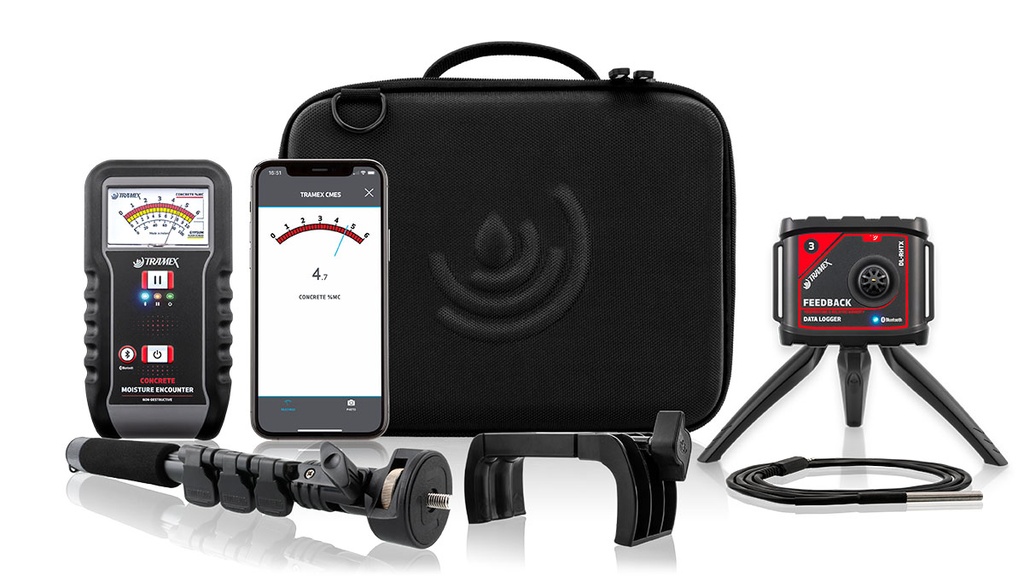

The Tramex Flooring Installer Tech Kit comes with an extension handle in a Tramex Easy-travel case. Bluetooth connectivity to the Tramex Meters App allows for visualization of readings and data reporting to mobile devices, to GeoTag test results, create, save and share photos, reports and charts, as well as see your meter screen on your phone when extending to hard to reach places.

Contenido del kit

Especificaciones

Concrete Moisture Encounter 5  - CME5 - Measuring Range:

Depth of penetration: approx. ¾" (20 mm)
Moisture Content for Concrete: 0 to 6%
Comparative for Gypsum floor screed: 0 to 10
Reference scale: 0 to 100



Feedback Datalogger DL-RHTX Measuring Range:

Memory: 100,000 data point entries (samples of Ambient RH and temperature; SurfaceTemperature)
Logging Rate: Logger interval adjustable between 10 minutes and 1 hour
Transmission Range: Up to 165ft (50m) line-of-sight
Bluetooth: BLE Bluetooth Low Energy 4.2 compliant



Relative Humidity Sensor Specifications:

Range: 0 to 100%RH
Accuracy: ±1.5%RH Range 0% to 80%RH ±2.0%RH Range 80% to 99%RH (@ 77ºF (25ºC))
Resolution: 0.1% over the complete range
Drift: <0.25%RH per year



Temperature Sensor Specifications:

Range: -4ºF to 158ºF( -20°C to 70°C)
Accuracy: ±0.1ºF Range -4ºF to 158ºF(±0.1 °C Range -20°C to 70°C)
Sensor Protection: PTFE Film protects sensor opening from water & dust Drift: <0.04ºF (0.03ºC) per year
Drift: <0.04ºF (0.03ºC) per year



Contact temperature probe (optional):

Units: ºF (ºC)
Temperature Range: -20°F to +175°F (-30°C to +80°C)
Accuracy: ±0.9ºF from 14ºF to 185ºF (±0.5°C from -10°C to +85°C)
Resolution: 0.1% over the complete range



Specifications of Kit:

Size: 13.2” x 9.5” x 3.2” (33.5cm x 24cm x 8cm)
Weight: 2.8 lbs (1.3kg)
Power:  3 x AA batteries
