vector components of accelerometer and magnetic field, temperature of accelerometer and magnetic compass
Calculated and visualized values
Inclination, azimuth, AX, AY, AZ – components of acceleration vector HX, HY, HZ – magnetic field components GTF – Gravity Tool Face – angle of probe rotation relative to gravity field MTF – Magnetic Tool Face – angle of probe rotation relative to magnetic field AccelTemp - accelerometer sensor temperature MagTemp – magnetometer sensor temperature G-TOT – total gravity field in g M-TOT - total magnetic field in Gauss
Angular resolution
0.02°
Absolute tilt measurement accuracy
± 0.2°
Absolute accuracy of azimuth measurement
± 0.5°
Relative angle measurement error
0.1°
Measurement speed
up to 8 Hz
The number of digits
3C accelerometer - 24 Bit 3C magnetometer - 16 bit
Baud rate
115200
Maximum number of measurements per pass
up to 32,768
Supply current
At sampling rate 8 Hz - 16 mA At sampling rate 1/4 Hz - 500 μA In standby mode - 50 μA
Standard connector
Souriau 200 Bar, IP69
Interface
RS-422, USB 2.0
Power supply
5 - 12 V DC / via USB from PC
Operating system
Windows 10

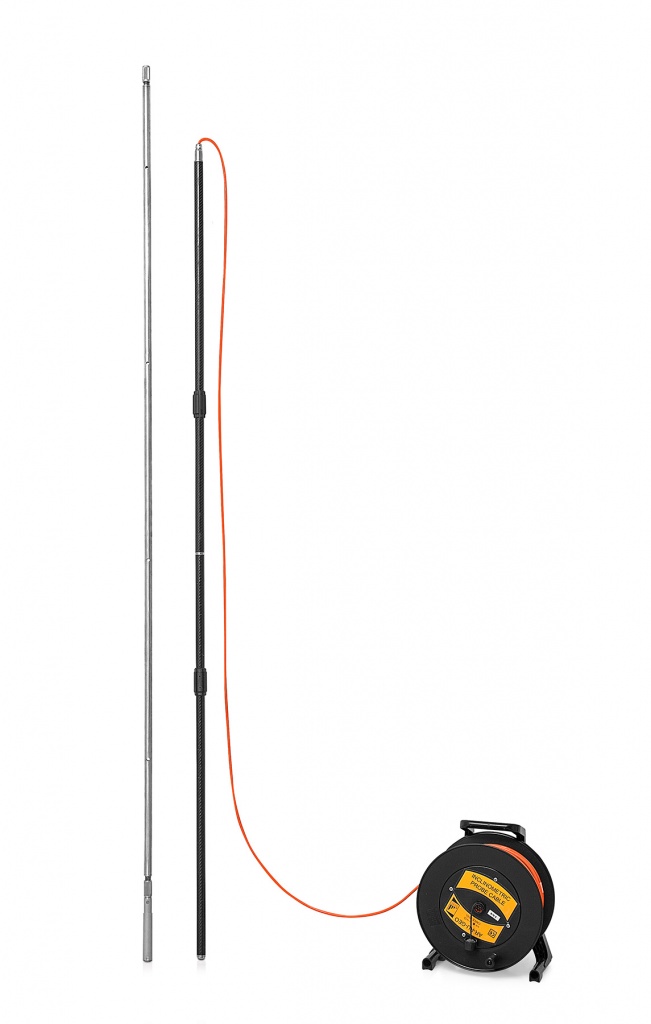

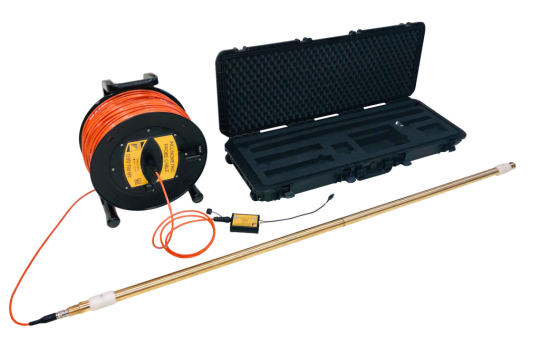

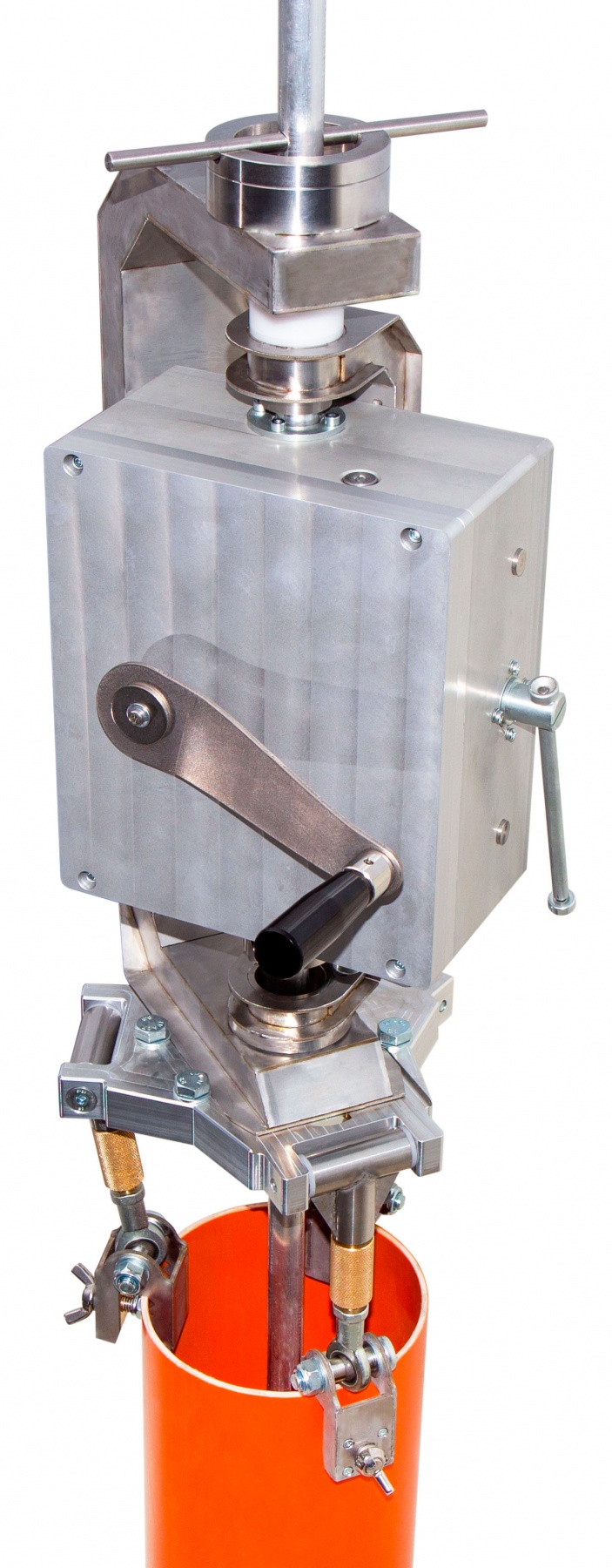

Number of probe sections
2 x 1 m each - inclinometer block and extension
Total probe length
2 m
External diameter
30 mm

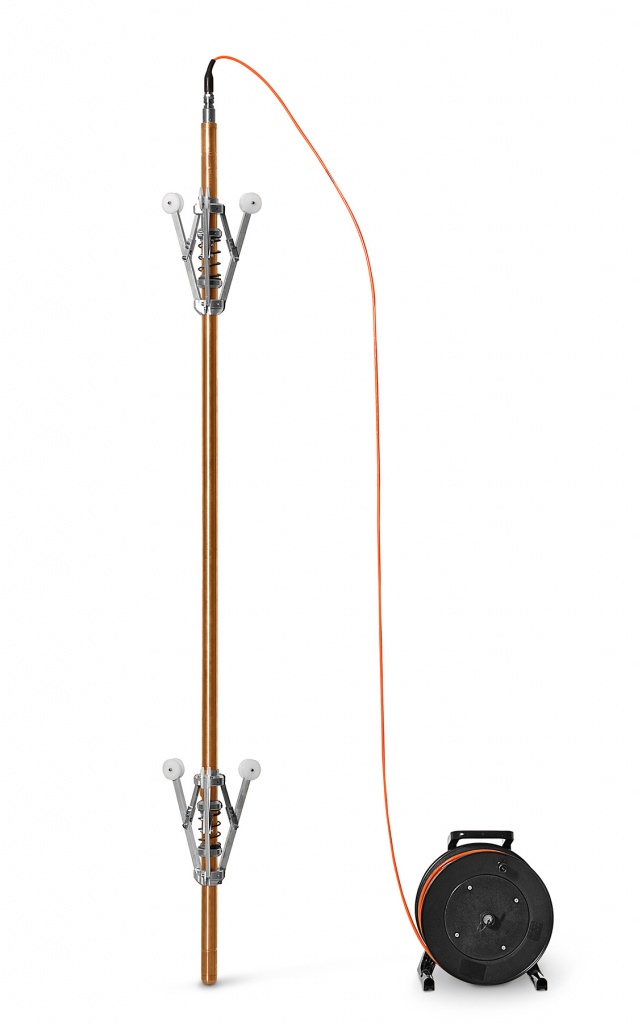

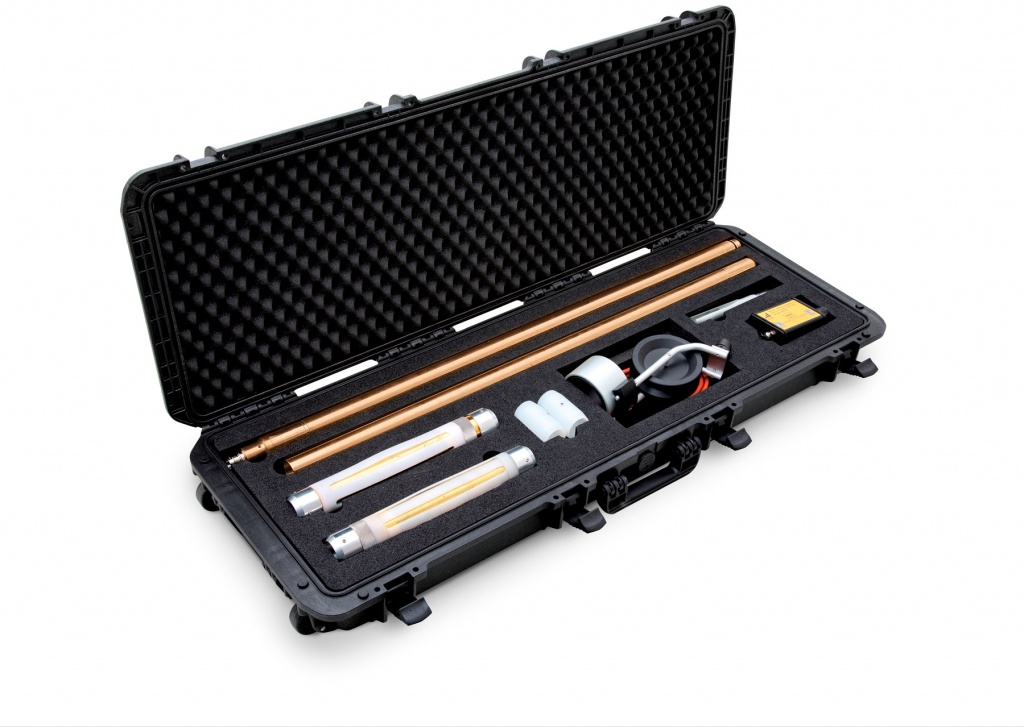

Outer diameter of Teflon cylinders
50 mm
Body material
steel
Mass probe
4.1 kg
Operating temperature range
-25 ÷ +85 °C
Maximum shock load
500 g
