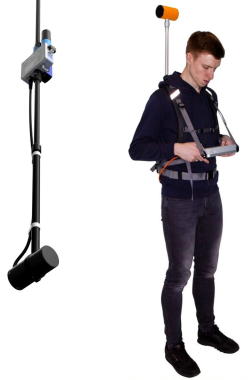

Overhauser magnetometer bundle MaxiMag and AeroSmartMag for any type of surveys

Overhauser MaxiMag and AeroSmartMag magnetometers offer unique flexibility in solving a wide range of tasks, from gradiometry for archaeology to regional studies with UAV. Both devices are fully independent magnetometers with integrated high-precision GNSS receivers, consoles, and memory. AeroSmartMag can be used as a UAV magnetometer with any compatible drone, or as a base station or second sensor with MaxiMag, turning the latter into a fully functional high-precision gradiometer. Walking MaxiMag can also be used as a base station. In addition to the standard components of MaxiMag and AeroSmartMag, the set includes a set of cables, brackets, and a tripod for assembling the gradiometer or installing base magnetometer.

High-precision coordinate referencing
Both magnetometers are equipped with high-precision built-in dual-frequency GNSS receivers capable of recording raw data. This allows to use any magnetometer not only as a magnetic base station, but also as a GNSS base. At the same time, the second magnetometer operates as a rover to provide centimeter-level accuracy for measurement positioning. The RTK option is an indispensable tool for archaeological surveys where precise coordinates are critically important. Both magnetometers can be mounted on the dedicated non-magnetic .

An ideal solution for any region
Our Overhauser magnetometers have no dead zones and can be used at any latitude. Simply keep the sensor in a vertical or horizontal position as shown in the diagram below to achieve maximum sensitivity, without worry about line direction or specific sensor orientation. This feature is especially important for UAV magnetometers operating in equatorial regions.

Overhauser magnetometers do not require sensor heating, like optically pumped ones, so power consumption and operating time remain the same whether in the summer heat or winter cold, and it is always much longer compared to any optical pumped magnetometer.

Low power consumption and lightweight design
Overhauser magnetometers offer a unique combination of sensitivity and low power consumption. MaxiMag and AeroSmartMag are the lightest magnetometers in their class, thanks to their design and the use of lightweight batteries. MaxiMag comes with a light and comfortable harness featuring multiple adjustments to fit anybody and a backpack for your lunch and a jacket.

MaxiMag sensors are available in two modifications:

We recommend the rigid design for harsh environments at low temperatures where additional connectors and assembling the sensor with gloves on can be inconvenient. Modular sensors are convenient for use closer to equator and during transportation.

The magnetometer package contains a minimum number of parts to make assembly as easy as possible, but at the same time it consists of all the necessary components, so you do not have to buy additional cables, GNSS receiver and other “options and accessories” required for regular operations. Every magnetometer we ship is ready to be used in its basic configuration. Options add functionality but are not required by most users for standard operating scenarios.

Thoughtful down to the smallest details
We spent years conducting geophysical surveys before deciding to design equipment that would make life easier for field geophysicists. We implemented all the ideas that came to us in the taiga or mountains, under the scorching sun and in the polar night.

MaxiMag features a built-in bright LED flashlight and a heated LCD display, ensuring perfect readability day or night, in both hot and cold conditions. AeroSmartMag is equipped with an OLED display that operates without heating down to -40°C.

MaxiMag also has a dual-sided keypad that is equally comfortable for both right- and left-handed users, and especially convenient on freezing days when you just want to keep switching hands in and out of a warm pocket.

We value user feedback and ideas of improving functionality and usability. Many features were implemented thanks to user suggestions and easy remote firmware update.

Data format
User can create project folders that can be used to divide survey sites or data collection days. All measurements are saved in a TXT file in the project folder. The file from each magnetometer has a name containing the serial number of the console, the code of the measurement mode and the number of connected sensors. The files have a homogeneous structure, i.e. every measurement in the file is a line that contains all necessary information: UTC date and time, time zone, base name or line# and station name, measured field, estimated error, sensor serial number, latitude and longitude in decimal degrees, altitude, UTM coordinates with automatic zone and hemisphere selection, horizontal and vertical accuracy. When working with a gradiometer, the line will contain measured field, estimated error, and sensor serial number for each of the connected sensors, and the file name will be different from the magnetometer mode, so the uniformity of the format will not be broken.

Even if there are many operators working on a survey site at the same time, you will always be able to identify which instrument was used for each single measurement in the database.

Metrology and noise protection - a guarantee of high accuracy
All our magnetometers are metrologically tested. We control noise level, absolute accuracy and heading error. The robust algorithms allow to perform measurements at high level of industrial noise, in a city environment, or right under high-voltage powerlines.

Reliability and warranty
Three-year warranty, reliability and fast technical support make your project seamless. Our Overhauser sensors have the longest in the World lifecycle of more than 10 years. You can also take advantage of our trade-in program and replace your old instruments with the new magnetometers from us. Trade in your outdated, unreliable, and heavy magnetometers from other manufacturers for our modern, lightweight, and high-performance solutions!

• Mobile survey with walking or towed magnetometer and station measurements with line guidance
• UAV magnetometer, gradiometer or two independent magnetometers for ground surveys
• Base station with continuous measurements
• Search mode for UXO objects detection or evaluation of a base station location
• GNSS receiver mode with ability to collect RAW GNSS data for a centimeter level accuracy with base or rover modes

• Mineral exploration
• Regional geological studies
• Engineering surveys
• Pipeline mapping
• UXO detection
• Archaeological studies
• Oil and gas exploration

• MaxiMag console with built-in multi-band GNSS receiver
• Digital Overhauser sensor OVHmag
• Li-ion battery 14.8V/4Ah with charger
• Sensor-to-console cable
• AGM battery power cable
• Backpack harness
• Gradiometer accessories:
  - Gradiometer support
  - Gradiometer bracket
  - Gradiometer cable
  - Power cable extension cord
• Non-magnetic tripod
• AeroSmartMag console with built-in multi-band GNSS receiver
• Portable Overhauser sensor on carbon rod
• External helical GNSS antenna
• Suspension rope
• USB cable - 2 pcs
• Transportation case - 2 pcs

• Real-Time Kinematic positioning
• Additional digital Overhauser sensors
• Non-magnetic cart for multi-sensor gradiometer
• SmartManager software
• RS-232 cable for real-time data broadcasting
• Suspension bracket for DJI Matrice M300/M350
• Suspension bracket for customer UAV
