SUMMIT M Vipa

https://cotecno.opendrive.cl/web/image/product.template/445977/image_1920?unique=2ecedae

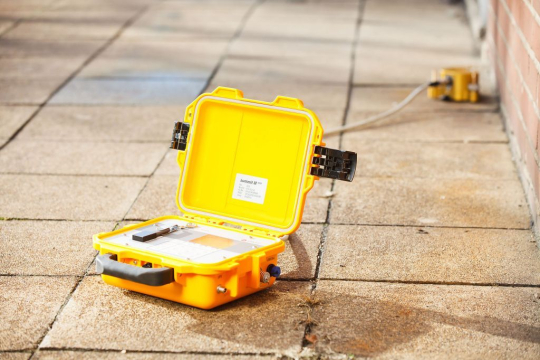

SUMMIT M Vipa is a three-channel seismic station designed for vibration monitoring with an additional channel for noise monitoring. The station has built-in lithium-ion battery, making SUMMIT M Vipa an excellent solution for autonomous mobile measurements. The presence of remote control with automatic data transmission allows to connect several stations via Ethernet or using a radio channel to…

Requiere cotización

Esta combinación no existe.

Contáctenos
SKU: GD-SUMMVIP

Términos y condiciones
Garantía de devolución de 30 días
Envío: 2-3 días laborales

Compartir

Descripción General

SUMMIT M Vipa is a three-channel seismic station designed for vibration monitoring with an additional channel for noise monitoring. The station has built-in lithium-ion battery, making SUMMIT M Vipa an excellent solution for autonomous mobile measurements. The presence of remote control with automatic data transmission allows to connect several stations via Ethernet or using a radio channel to create a vibration monitoring network. High-resolution 24-bit ADC provides high dynamic range and ultra-sensitive vibration monitoring for both continuous and triggered recording.

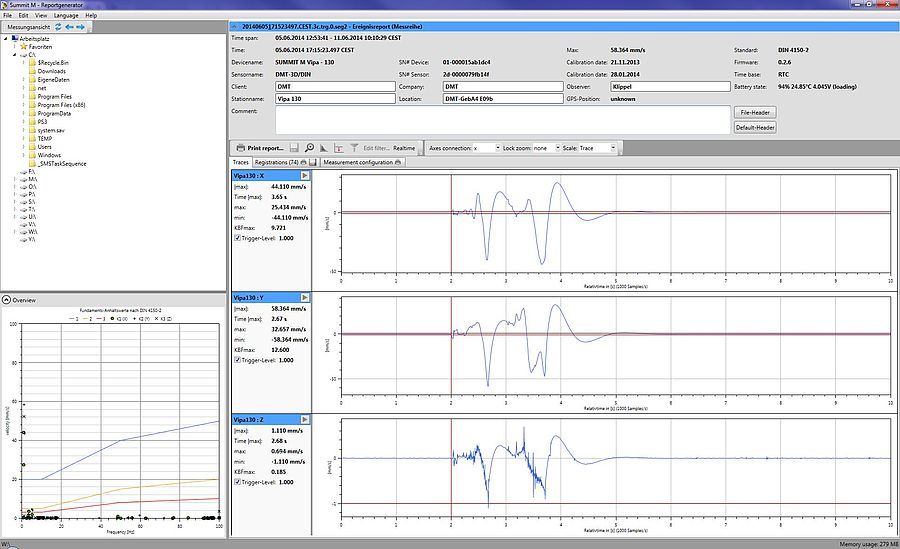

Data display during measurement process

DMT-3D/DIN is a seismometer used with SUMMIT M Vipa system for vibration and microseismic monitoring. The sensor is equipped with three geophones with a frequency range from 1 to 315 Hz. Due to its weight, for most applications, the device does not require additional mounting, but if necessary, it can be fixed above the central mounting hole with a bolt. For ease of setup and installation, the seismometer has a built-in level.

Available Extension / Accessories:
  • Seismology extension - increased sensitivity and dynamic range of > 122 dB, additional sample rates: 125 Hz 250 Hz, 500 Hz, optional SeedLink server
  • Printer - external serial protocol printer
  • Alarm switch - external relays for switching external alarm devices, can operate via digital I/O interface of VIPA or remotely via mobile network
  • Intelligent sensor supply - external sensor supply for connecting third party ICP-type sensors

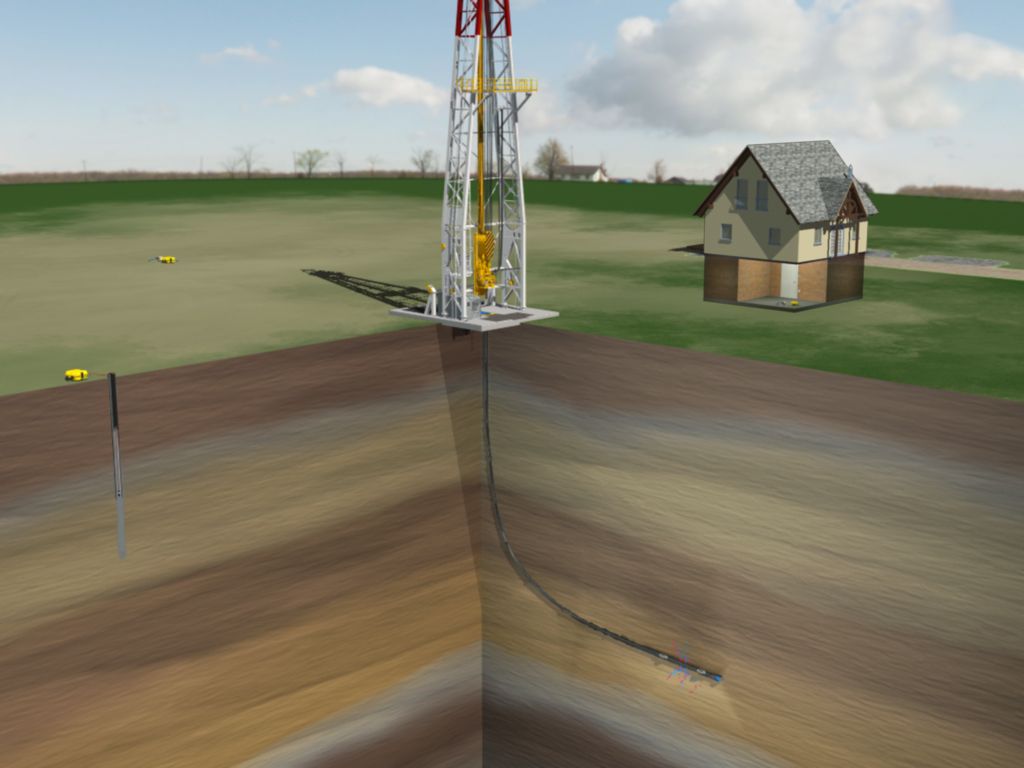

Possible acquisition setup for vibration monitoring

Especificaciones Técnicas

Technical Specifications
Channels3 channels (X-, Y-, Z- vibration) 1 aux-channel (acoustic)
Sample Interval1 kHz, 2 kHz, 5 kHz, 10 kHz
Frequency rangeDC - 5 kHz
Recording modeContinuous or event based
Trigger modeAmplitude threshold for each channel, trigger also on KB and vector sum
Record length1 sec to 60 sec per file
Pre-trigger length0 sec to record length-1
Output sample resolution32 bit
Signal input range± 5 V (10 V pp ) differential input ( optional ± 20 V on request)
Measurement rangeUp to 175 mm/s with standard sensor DMT-3D/DIN, larger ranges on request
Time synchronisationInternal GPS module (ext. Antenna), absolute time accuracy : < 10 µs
Data storageInternal 4GB (larger on request) or external USB-mass-storage device
Instantaneous dynamic range≥ 113 dB @ 1000 Hz sample rate
Crosstalk rejection≥ 110 dB (between all channels)
Total harmonic distortion≤ -100 dB
Common mode rejection≥ 105 dB
Data communication100base-TX Ethernet, internal LTE/EDGE/GSM modem
Internal batteryLi-Ion, typical life time >40 hours
External power supply9-18 V DC (optional 9-36 V) max 15 W during battery charge
DisplayColour graphical LCD with 320 x 240 resolution
Dimensions30 x 25 x 12 cm
Weight3.6 kg
