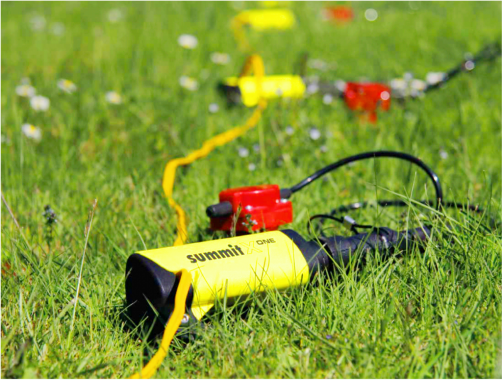

SUMMIT X One

seismograph is the lightweight, flexible seismic data acquisition system for active seismic and continuous recording. It is very flexible to configuration changes. The use of small modules connected to a lightweight telemetry cable allows operation at different geophone positions. The new technology of "snapping" modules on the cable permits to find the best solution for high-resolution 2D and 3D seismic surveys in any area with an arbitrary distance between geophones in the range from one to several meters.

GD-SUMXONE

SUMMIT X One

allows fast and reliable data transfer for quality control, as well as the technology of continuous data transfer during passive measurements.

SUMMIT X One

The Trigger Unit (TU) offers a very flexible alternative way to send trigger signal to the seismograph. Instead of connecting long trigger cables to the nearest receiver unit, the TU can travel with the source and connect anywhere along the line using the same "snap" technology as the receiver units of this popular seismograph.

Minimum configuration

  • 1 channel digitizing unit (RU)
  • 1 geophone
  • 1 digital data cable
  • 1 data collector (DC)
  • Power supply
  • PC with acquisition software
  • Seismic source with a trigger

GD-SUMXONE

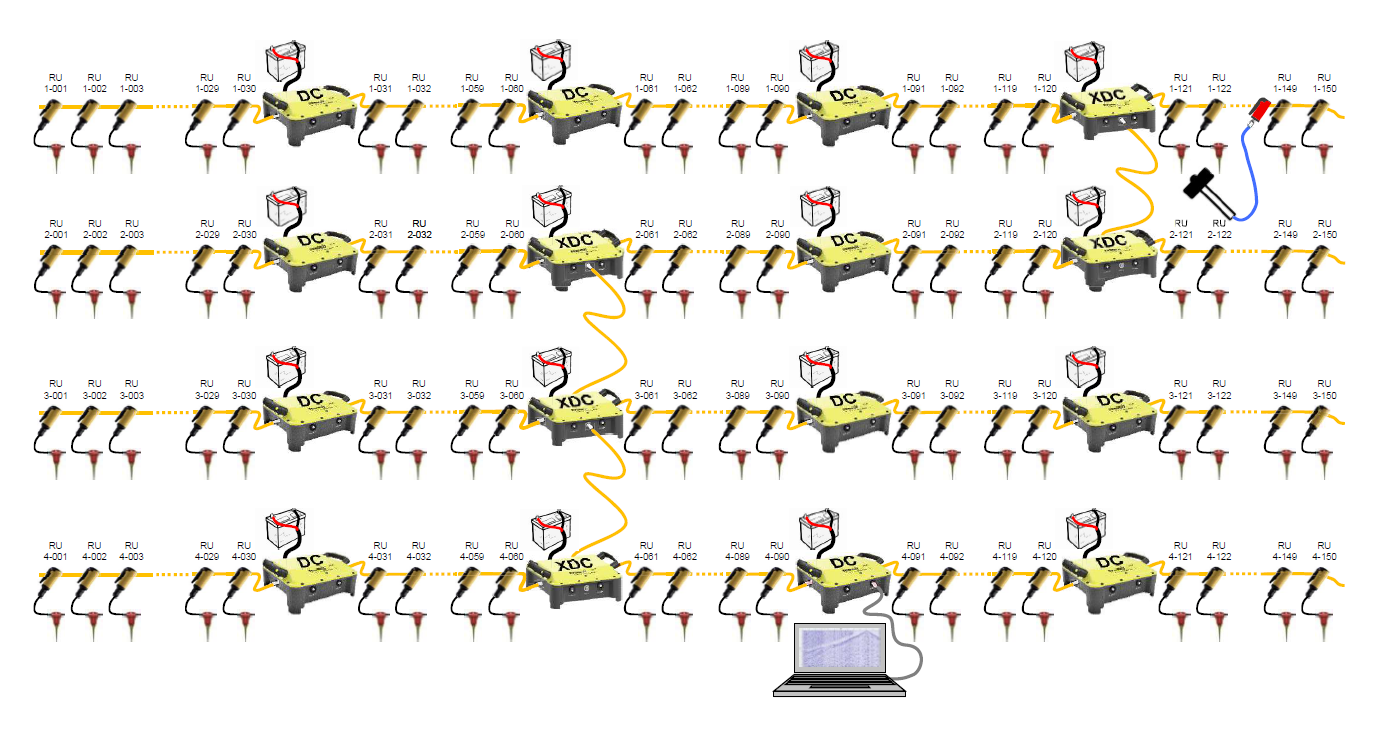

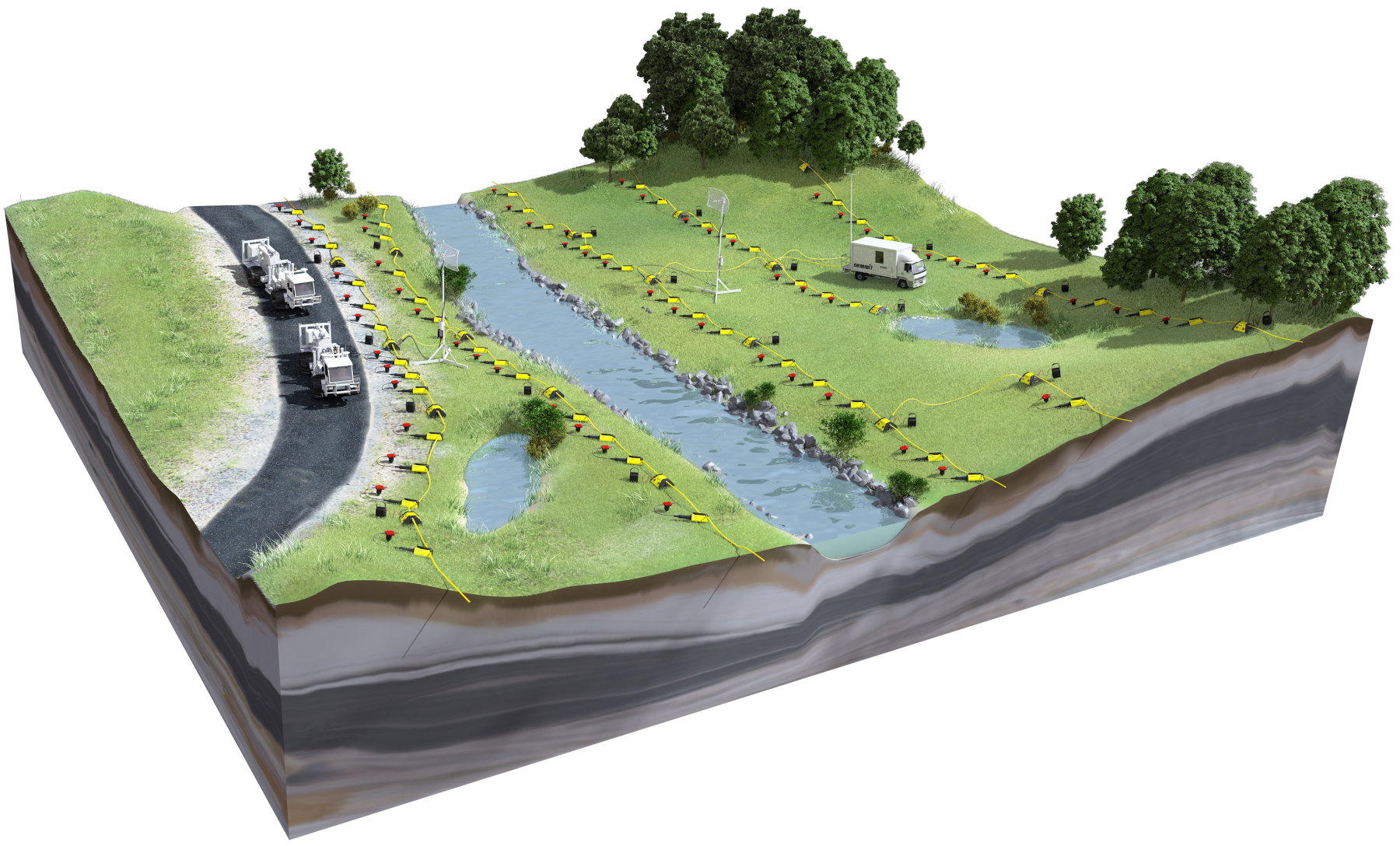

Maximum 330 m data cable length with up to 50 RUs. Maximum of 2 segments per DC. PC can connect to any DC in acquisition system. XDC – a cross unit for 3D configuration.

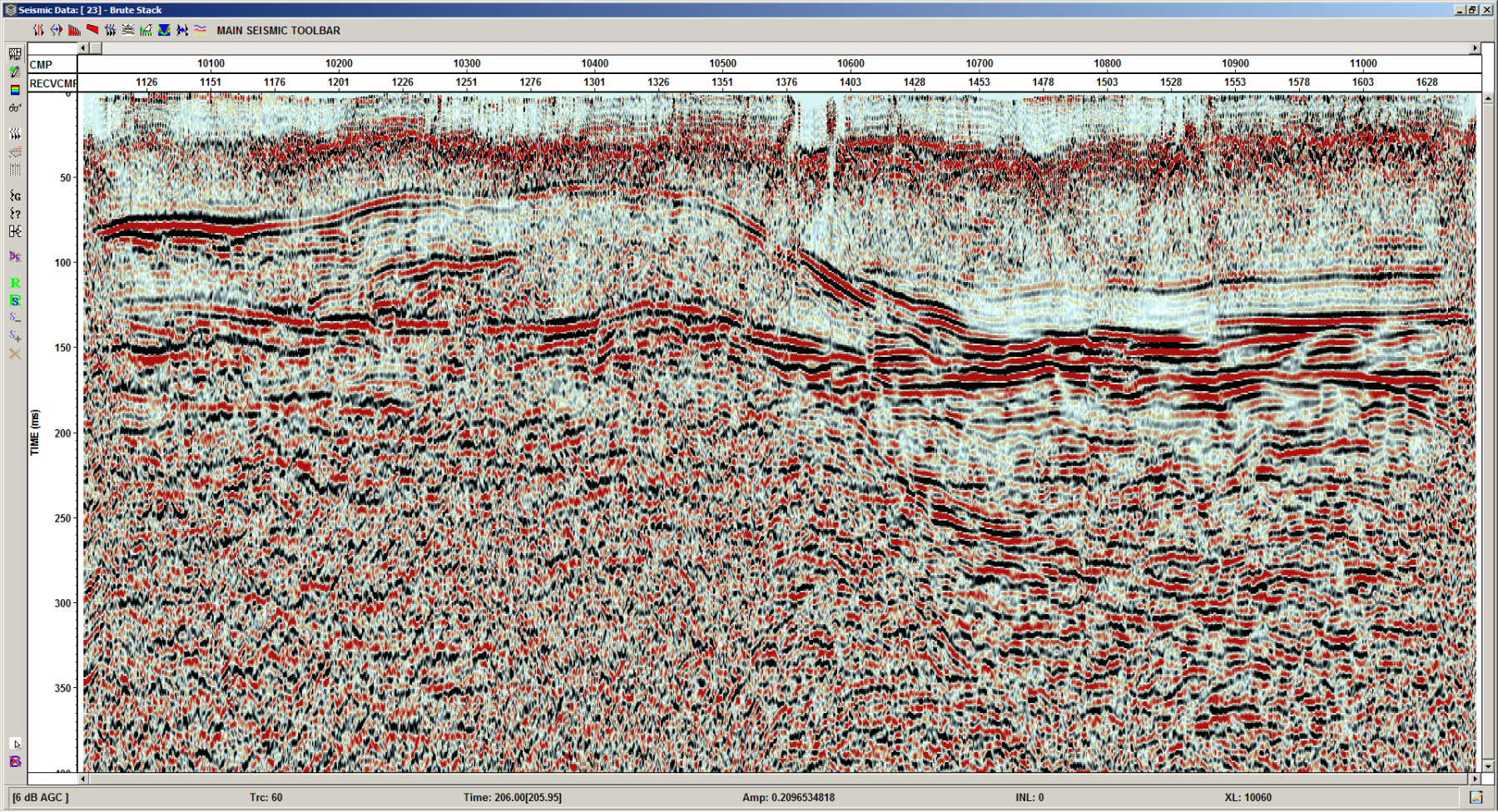

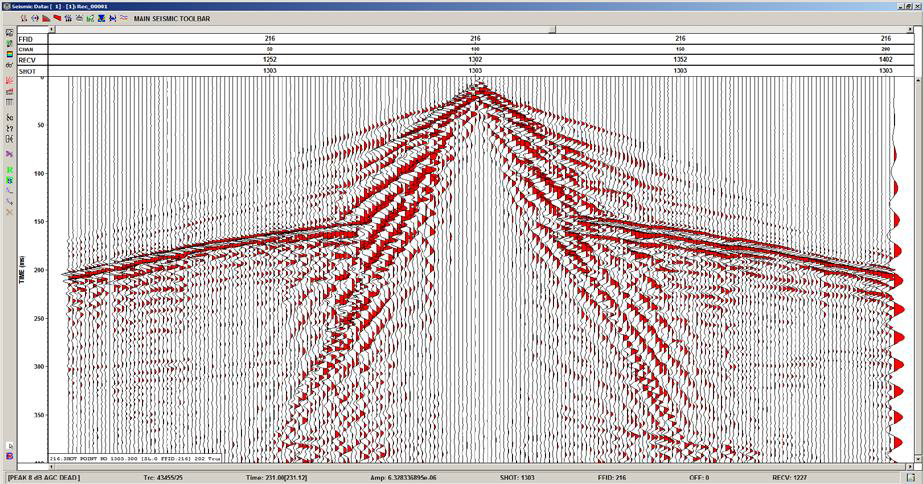

Seismic applications

  • Reflection seismic
  • Refraction seismic
  • High resolution seismic
  • MASW
  • Shear wave seismic
  • REMI

GD-SUMXONE

GD-SUMXONE

SUMMIT X One

seismograph is compatible to all seismic sources (sledge hammer, explosives, accelerated weight drop, vibrator) and all geophone types (1C, 3C, with natural frequencies 4,5 Hz, 10 Hz, 14 Hz, 28 Hz, 100 Hz, land geophone, borehole geophone, hydrophone)

Features

  • Lightweight 2 wire cable with self-sealing coating
  • 32 bit ADC
  • Built in self-test functions, Real-time line check
  • Only one battery per segment
  • SNAP technology = Flexibility
  • Automatic allocation of remote units
  • Reduction of survey time and costs

Datos técnicos

Sample Interval1/16, 1/8, 1/4, 1/2, 1, 2, 4, 8 ms
Record LengthUp to 120 K samples in active shot mode or continuous passive recording
Preamp Gain0 dB, 20 dB or 40 dB
ADC32 Bit
Input Signal range± 5 Volt 10 V peak to peak
Input Impedance20 kOhm
Dynamic Range≥ 132 dB @ 2 ms sampling interval
Equivalent Input Noise< 0.2 µV RMS @ 2 ms sampling interval and 40 dB preamp gain
Total Harmonic Distortion≤ 110 dB
Common Mode Rejection≥ 100 dB
Gain AccuracyTypical 1 % (between all channels)
PassbandDC (0 Hz) to 0.8 x Nyquist
Digital Anti-Alias Filter3 dB @ 0.8 x Nyquist
Rejection at Nyquist Frequencies-120 dB
Passband Ripple+/- 0.05 dB
Analogue Anti-Alias Filter7.2 kHz 6 dB/octave
Power SupplyExternal 12 V or 24 V batteries Connected to Data Collector Units
DimensionsRU: 16 x 7 x 4 cm DC: 30 x 30 x 13 cm
WeightRU: 175 g DC: 5,3 kg
Operation Temperature-25°C to + 60°C
Humidity Range0 – 95 %
System Requirements for controlling PC
Operating SystemWindows 7 / 10
CommunicationEthernet LAN
ProcessorMinimum i5 or equivalent ≥ 2 GHz
RAM8 GB or more
