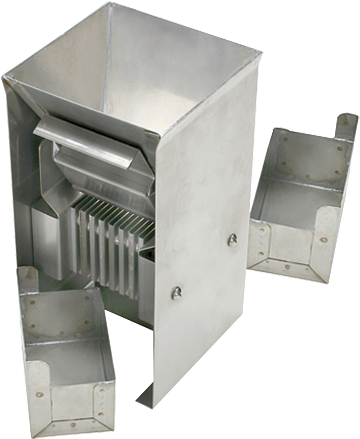

This Micro Riffle Splitter is designed to reduce bulk material into a convenient representative sample for laboratory analysis. A hopper, with a manual control gate, receives the material to be split, then upon opening the gate, the material flows through a series of equally divided compartments of chutes, sending 50% of the sample to the left side pan and 50% of the sample to the right side pan. These Splitters consist of a stainless steel hopper with a manually actuated flow gate, stainless steel and anodized aluminum riffle bank, and stainless steel frame with support legs. Two (2) stainless steel Hy-Back (nothched L-shape) pans are supplied with the
micro-splitter.
Chutes: 16 (.125" (3mm)
Hopper Size: 4.5" x 4.5"(114 x 114mm)
Hopper Volume:
Pans: 2
Pan Capacity:
