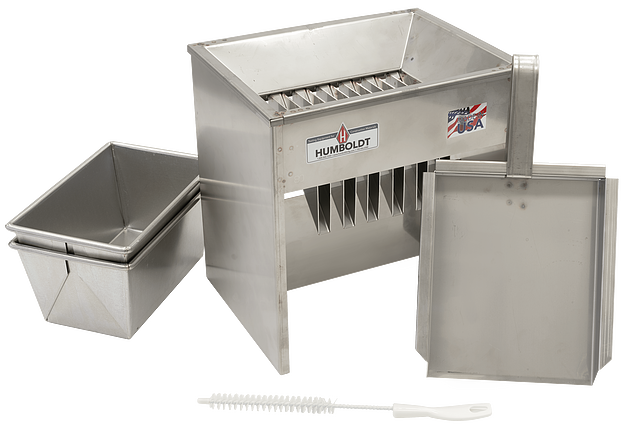

Humboldt, Riffle-type sample splitter with removable hopper can be used to divide or halve dry materials such as cement, gravel, powdered ores, coal, coke, sand, soils, etc. Material poured into the hopper is divided into two equal portions by a series of chutes that discharge the material alternately in opposite directions into separate pans. Splitter is stainless steel construction with cold-rolled steel pans.
All splitters include 2 pans, scoop and cleaning brush.
Stainless pans are available.
H-3980A:
Material Size: 0.33" (8.4mm)
Chutes: (12) .500" (12.7mm) width
Hopper: 8.5" width x 11" length (216 X 279mm)
(2) H-3981 Pans: 8.0" x 5.25" x 4.25" (203 x 133 x 108mm) L W D
H-3985A
Material Size: 0.50" (12.7mm)
Chutes: (12) .75" (19mm) width
Hopper: 8.5" width x 14" length (216 X 356mm)
(2) H-3986 Pans: 10.5" x 5.5" x 4.5" (267 x 140 x 114mm) L W D
