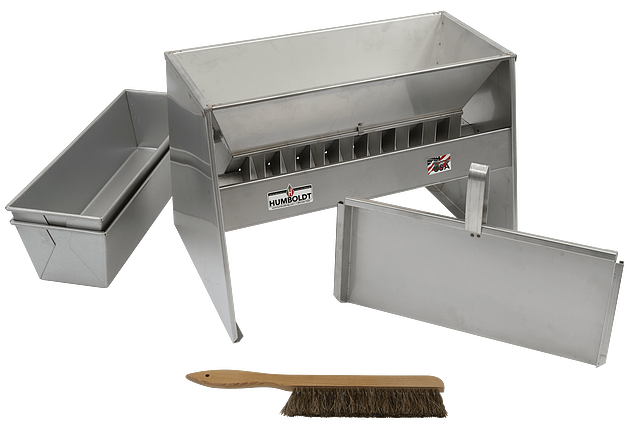

Riffle-type sample splitters divide or halve dry materials such as cement, gravel, powdered ores, coal, coke, sand, soils, etc. Material poured into the hopper is divided into two equal portions by a series of chutes that discharge the material alternately in opposite directions into separate pans. Humboldt splitters are stainless steel. Pans are either stainless or cold-rolled steel.
All splitters include 2 pans, scoop and cleaning brush.
H-3987A:
Material Size: 0.66" (16.9mm)
Chutes: (16) 1.00" (25.4mm) width
Hopper: 9" width x 20" length (229 X 508mm)
(2) H-3988 Pans: 19" x 6.375" x 4.875" (483 x 162 x 124mm) L W D
H-3989A:
Material Size: 1.33" (33.8mm)
Chutes: (8) 2.00" (50.8mm) width
Hopper: 9.5" width x 19.5" length (241 X 495mm)
(2) H-3988 Pans: 19" x 6.375" x 4.875" (483 x 162 x 124mm) L W D
H-3990A:
Material Size: 1.00" (25.4mm)
Chutes: (10) 1.50" (38.1mm) width
Hopper: 9" width x 20" length (229 X 508mm)
(2) H-3988 Pans: 19" x 6.375" x 4.875" (483 x 162 x 124mm) L W D
H-3992A:
Material Size: 1.67" (42.3mm)
Chutes: (8) 2.50" (63.5mm) width
Hopper: 9" width x 24" length (229 X 610mm)
(2) H-3993S Pans: 22" x 6.75" x 5.125" (559 x 171 x 130mm) L W D
Stainless replacement pans are available.
