Flooring Installation Quick Check Kit - IQCK

https://cotecno.opendrive.cl/web/image/product.template/594343/image_1920?unique=d232d25

The Installation Quick Check Kit, for a last quick check of moisture & RH conditions before installing a floor, and avoid dew-point related floor failure.

Requiere cotización

Esta combinación no existe.

Contáctanos
SKU: IQCK



Compartir

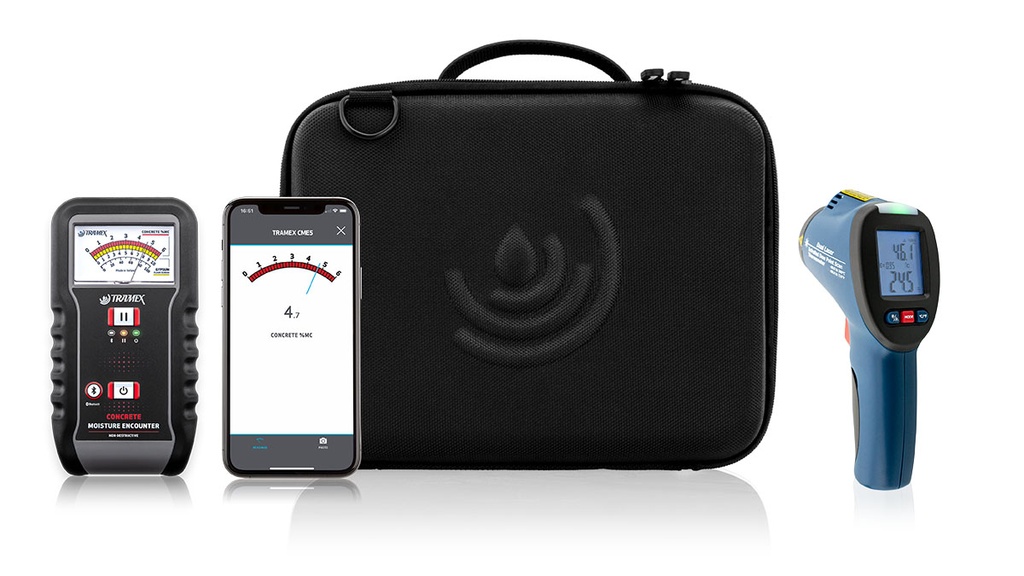

The Tramex IQCK is a compact kit for performing the Installation Quick Check test, which is the instant, non-destructive, quantitative moisture content testing of concrete floors and ambient dew-point conditions at the time of installation.

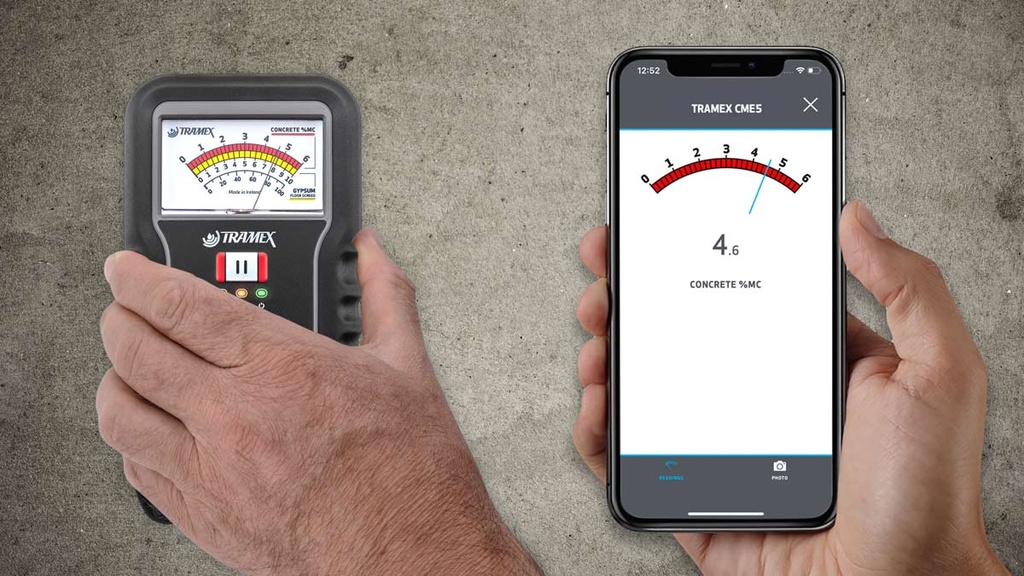

Even if pre-installation tests have been performed, checking the %MC and ambient dew-point conditions at the time of installation is crucial to ensure successful installation. The Tramex CME5 moisture meter allows for non-destructive quantitative testing of concrete moisture content using Gravimetric testing as a baseline. The Infrared Thermometer and Dew Point Detector provides surface temperature readings and ambient temperature and dew point conditions to avoid condensation-related issues at the time of installation and floor failures. The Tramex Meters App allows for data reporting to mobile devices, to GeoTag test results, create, save and share photos, reports and charts. The Tramex Flooring Installation Quick Check Kit comes in a Tramex Easy-travel case.

Contenido del kit

Especificaciones

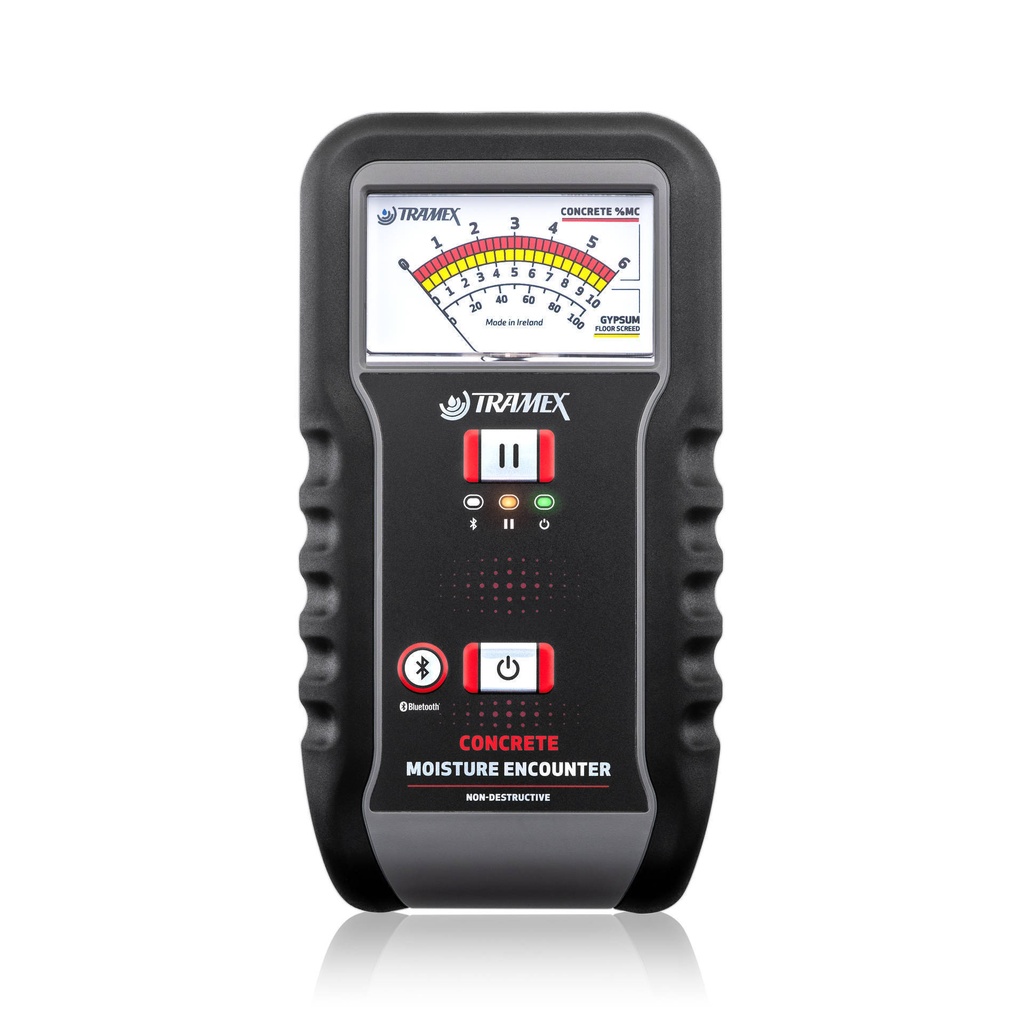

Concrete Moisture Encounter 5  - CME5 - Measuring Range:

Depth of penetration: approx. ¾" (20 mm)
Moisture Content for Concrete: 0 to 6%
Comparative for Gypsum floor screed: 0 to 10
Reference scale: 0 to 100

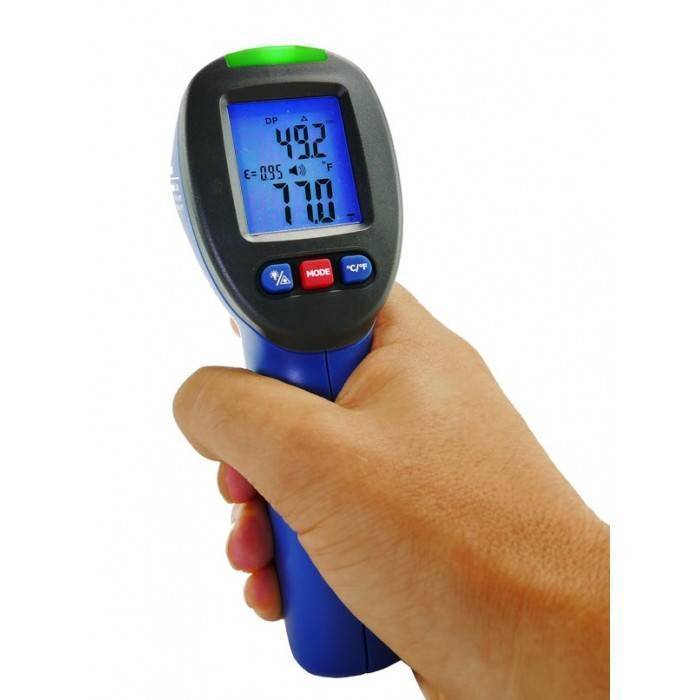

Infrared Thermometer and Dew Point Detector - IRT2DP - Measuring Range:

Temperature Range: -58ºF to 716ºF (50°C to 380°C)
Display resolution: 0.1
Emissivity: Fixed at 0.95
Temperature accuracy: -58º to 32ºF / -50º to 20ºC: +/- 32º to 716ºF / 3.5ºC 20º to 380 ºC: +/-1.5ºC
Wavelength range: 8 – 14um
Humidity Range: 0 - 100% RH
Humidity accuracy: +/-3.5% (20% to 80%)
Dew point temperature: (-22 to 212)ºF / (-30 to 100)ºC
D:S: 20:1
Operating temp: 32 to 122ºF (0 to 50ºC)
Storage temp: -4 to 140ºF  (-10 to 60ºC)
Relative humidity: 10%-90%RH operating, <80%RH storage
Power Supply: 9V battery, NEDA 1604A or IEC 6LR61, or equivalent



Specifications of Kit:

Size: 13.2” x 9.5” x 3.2” (33.5cm x 24cm x 8cm)
Weight: 2.8lbs (1.3kg)
Power: 2 x AA batteries, 1 x 9 volt PP3 battery
