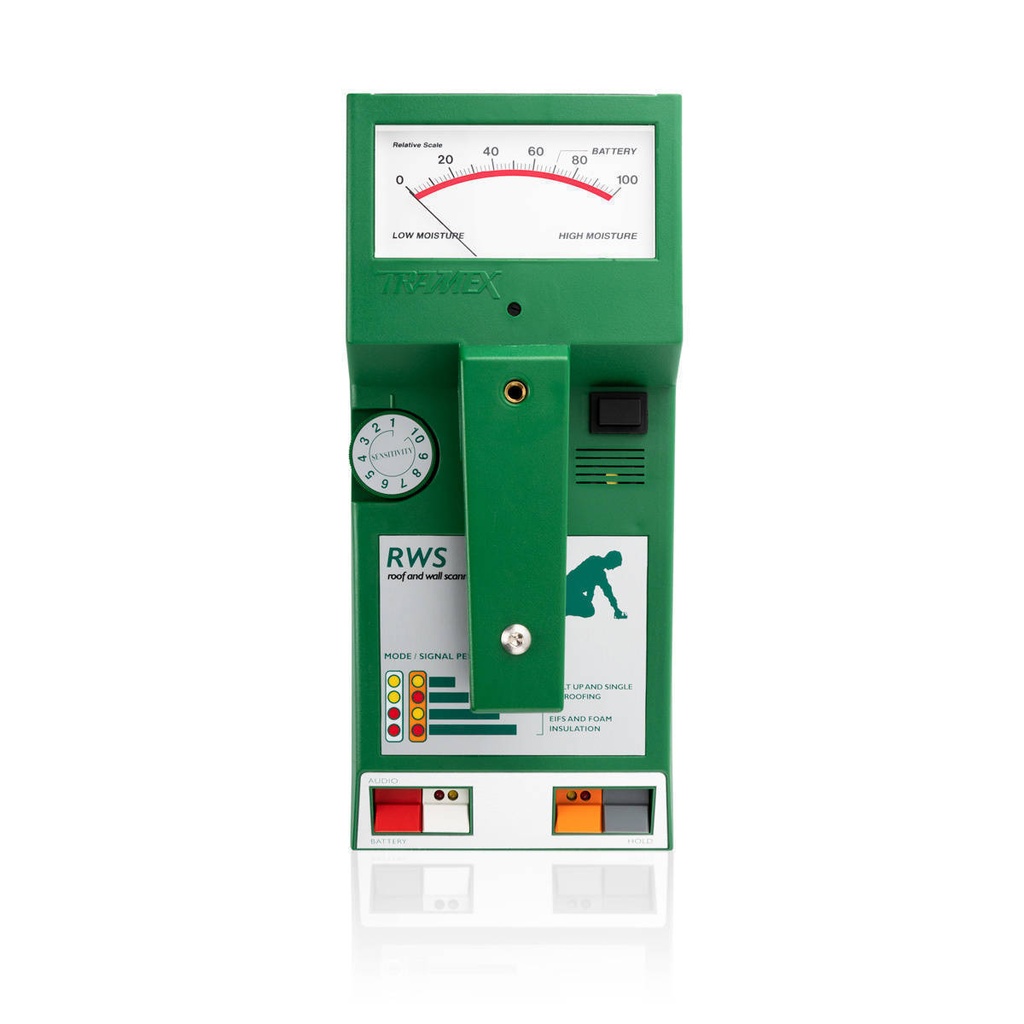

Roof and Wall Scanner - RWS - Measuring Range:
| Depth of penetration: |
4" (100mm) |
| Sensitivity: |
Four Ranges:> |
| |
Roofing Mode with high and low sensitivity. |
| |
EIFS / Foam Roof Insulation Mode with high and low sensitivity. |

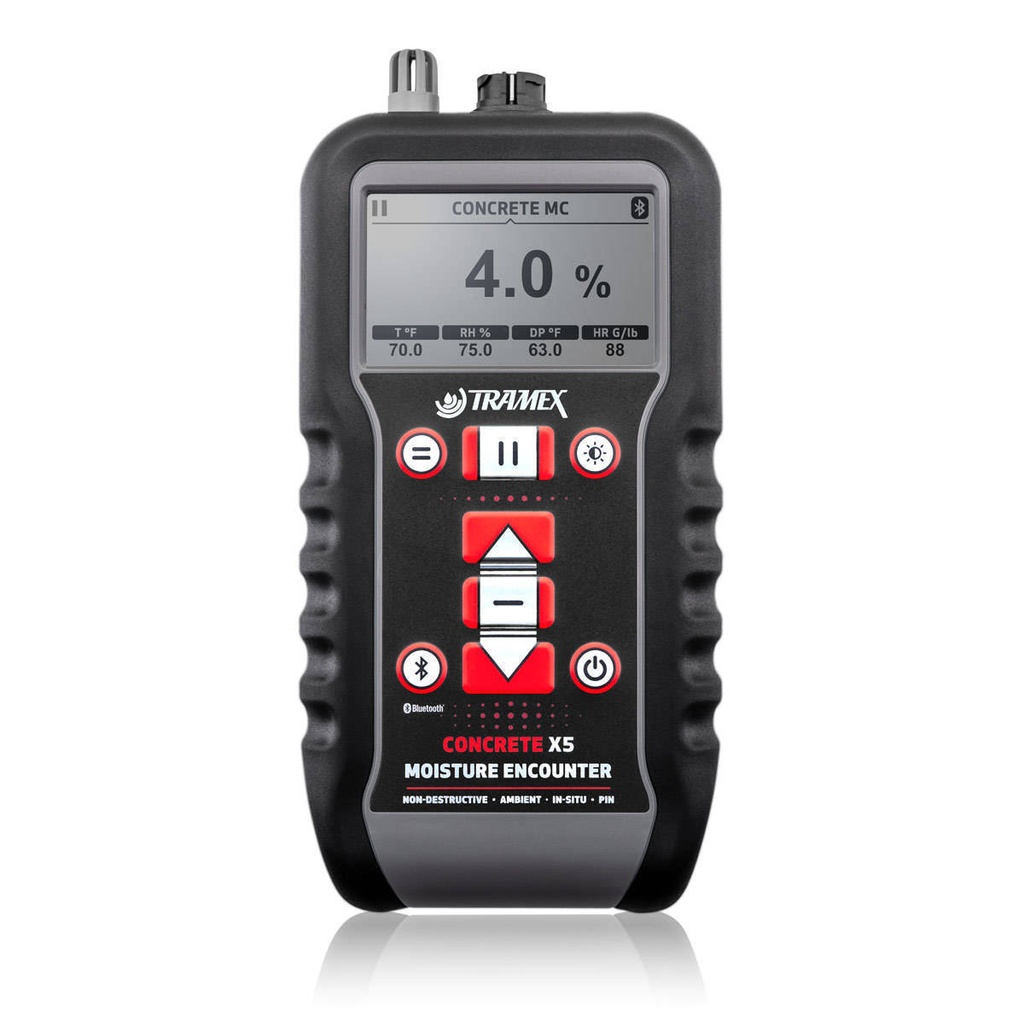

Concrete Moisture Encounter X5 - CMEX5 - Measuring Range:
| Depth of penetration in concrete: |
approx. ¾" (20mm) |
| Moisture content for Concrete: |
0 → 6.9 % |
| Comparative for Gypsum floor screed: |
0 → 12 |
| CM Equiv Anhydrite/Concrete: |
0→2.7 / 0→4.3 |
| Reference scale: |
0 → 100 |
| Relative Humidity: |
0 → 99% |

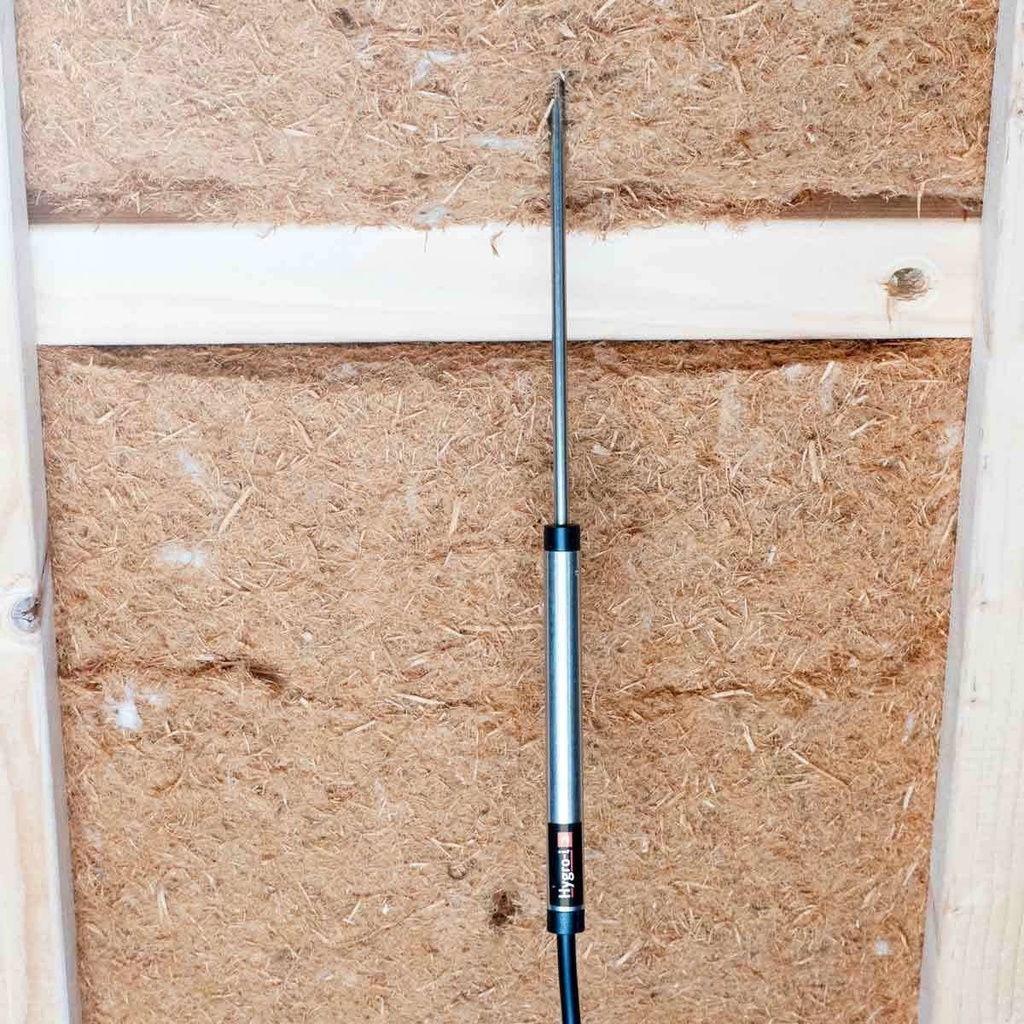

| (with optional Hygro-i2 ® probe): |
Humidity accuracy: 0% → 99%RH +/- 2% @ 25°C / 77°F |

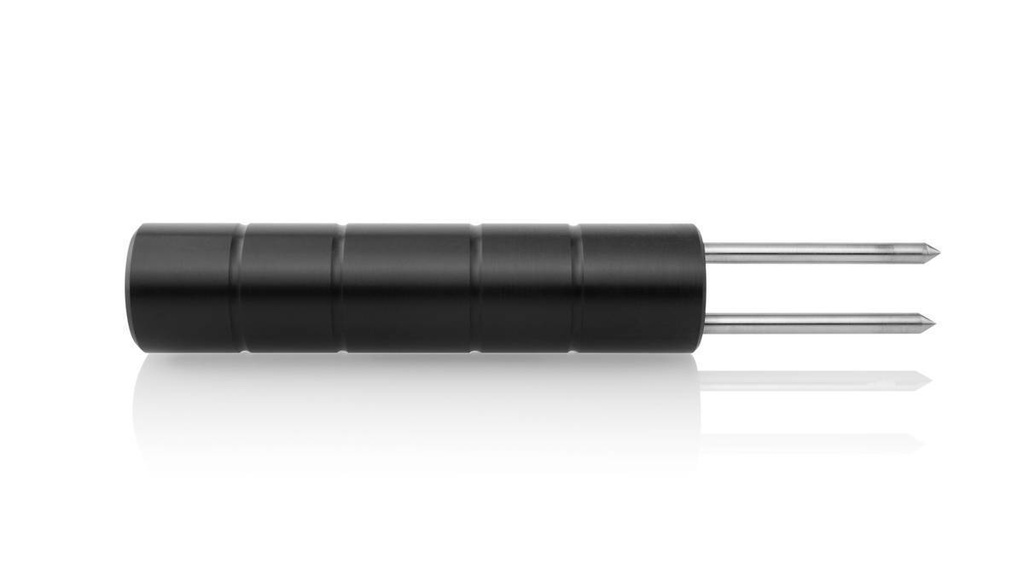

| Moisture content for wood (with optional wood pin probes): |
5 → 30 % |

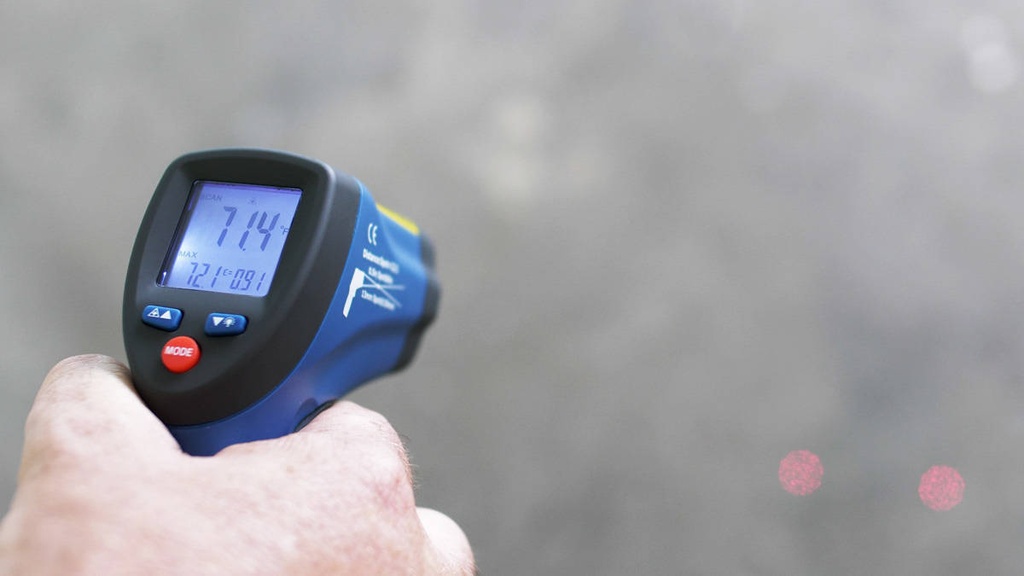

Infrared Thermometer IRT2
| Temperature range: |
-58ºF ~ 1202ºF (-50 to 650 ºC) |
| Distance to Spot ratio: |
D:S = 12:1 |
| Display resolution: |
0.1 ºF(0.1ºC) <1000 1ºC >1000 |
| Accuracy for targets: |
Assumes ambient operating temperature of 73 to 77ºF (23 to 25 ºC) -58ºF ~ 68ºF (-50 ~ 20ºC)
±4.5ºF (2.5ºC) 68ºF ~572ºF (20ºC ~300ºC) ±1.0% ± 1.8ºF (1.0ºC) 572ºF ~ 1202ºF (300ºC ~650ºC) ±1.5%
|
| Repeatability: |
-58~68ºF (-50~20ºC) : ± 2.3ºF (1.3ºC) 68~1202ºF (20~650ºC) : ±0.5% or ±0.9ºF (0.5ºC) |
| Response time: |
150ms |
| Spectral response: |
8~14um |
| Emissivity: |
Digitally adjustable from 0.10 to 1.0 |
| Over range indication: |
LCD will show “----” |
| Polarity: |
Automatic (no indication for positive polarity); Minus (-) sign for negative polarity |
| Diode laser output: |
<1mW,Wavelength 630~670nm, Class 2 laser product |
| Operating temp.: |
32 to 122ºF ( 0 to 50ºC) |
| Storage temp.: |
14 to 140ºF (–10 to 60ºC) |
| Relative humidity: |
10%~90%RH operating, <80%RH storage |
| Power supply: |
9V battery, NEDA 1604A or IEC 6LR61, or equivalent |
| Safety: |
“ CE ” Comply with EMC |

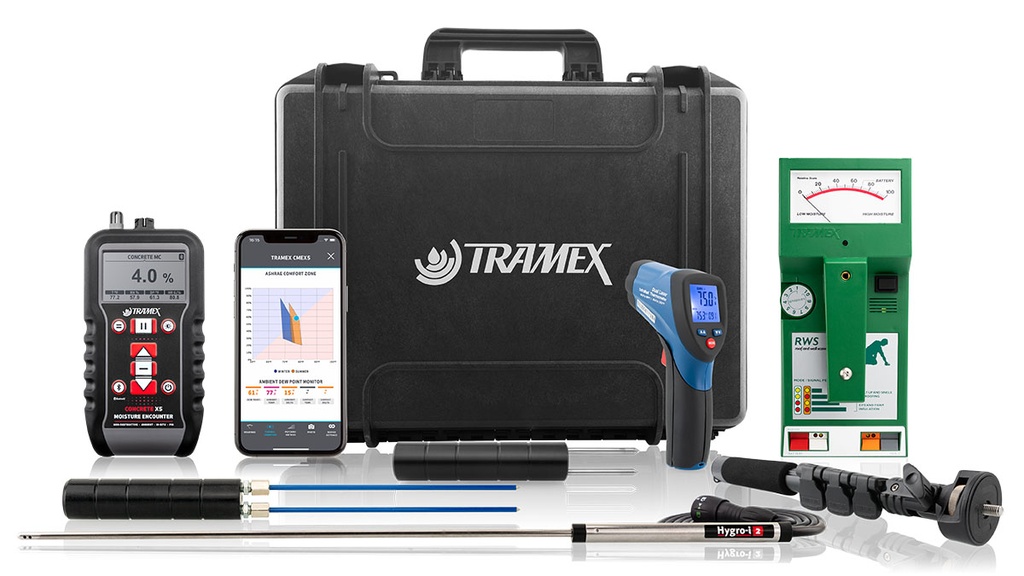

Specifications of Kit:
| Size: |
19.2” x 14.9” x 5.7” (487mm x 380mm x 145mm) |
| Weight: |
9.9 lbs (4.51kg) |
| Power: |
2 x 9 volt PP3 Batteries, 2 x AALR6 ALKALINE (Included) |
